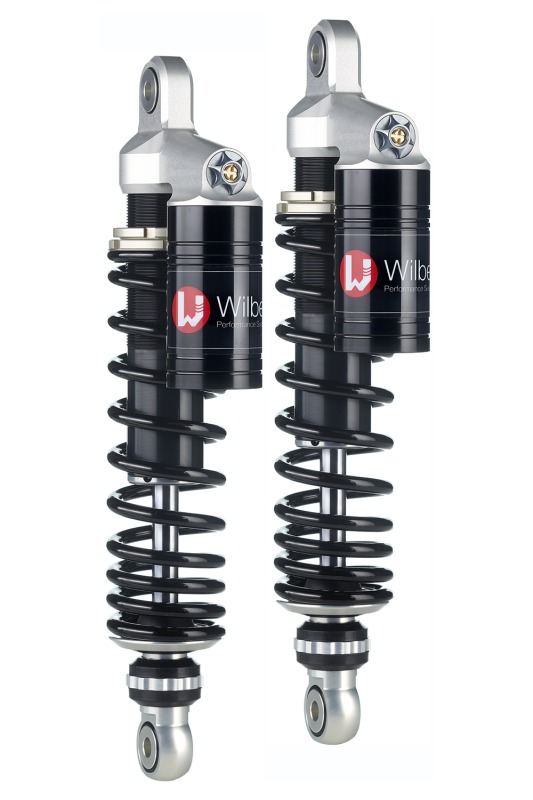

Wilbers shock absorber 632 Adjustline for Ducati 600 Pantah 78-86

Product Details

Wilbers Performance Suspension Adjustline 632 Competition, stereo rear shock absorbers (set), rebound and compression damping as well as spring preload adjustable, external reservoir with milled part mounted on the shock absorber, for Ducati 600 Pantah, Type, model year 78-86, fixed lift +25 mm, with ABE according to application area.

General Description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without outer diameter space issues.

Adjustline 632
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low and high-speed range of the compression damping. 22 clicks per range allow for optimal fine adjustment. At maximum compression speeds, an overpressure valve prevents the shock absorber from hydraulic and uncontrolled shocks from being transferred into the chassis. The rebound damping can be adjusted externally in 22 clicks. The spring base can be continuously preloaded.

Features:
- Larger impacts are gently filtered and absorbed by the “blow-off valve”. This protects the rider more than ever from harsh impacts.
- With balance tank on the milled part
- Stepless spring preload via the supplied hook wrench
- 22-way adjustable rebound damping

Additional Information and Notes:
- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, for an extra charge, you can have us paint the spring in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces in the Nightline are matt black anodised, the spring is painted black, and applications that serve the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour during the order process).
- Also available in different lengths for raising or lowering: please inquire about lengths.
- Please also specify during the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road).
