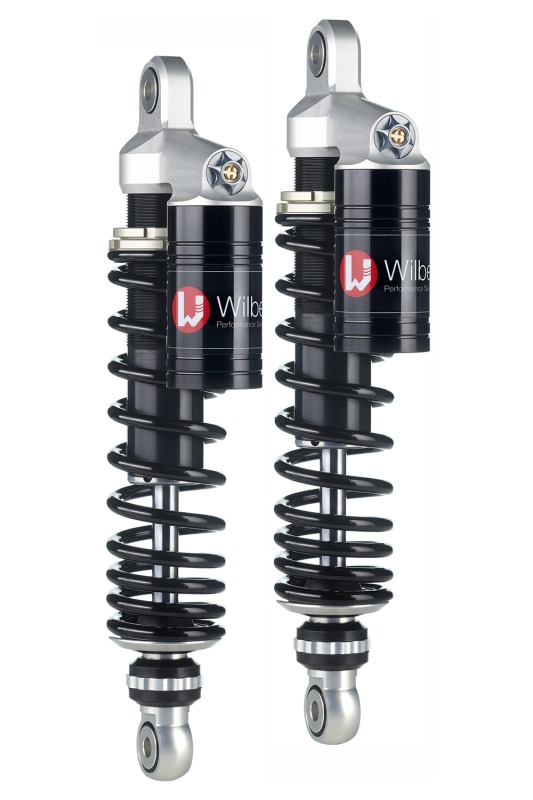

Wilbers shock absorber 632 Adjustline for BMW R 100 / CS / RS / RT / S / 7 from 84

Product details

Wilbers Performance Suspension Adjustline 632 Competition, stereo shock absorbers rear (set), rebound and compression damping as well as spring preload adjustable, pressure reservoir with milled part mounted on the shock absorber, for BMW R 100 / CS / RS / RT / S / 7, type BMW 247, model year 84- onwards, with ABE according to scope of use.

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without space issues in the outer diameter.

Adjustline 632
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low and high-speed range of the compression damping. 22 steps per range allow for optimal fine adjustment. At maximum compression speeds, an overpressure valve prevents the shock absorber hydraulic from blocking and uncontrolled shocks from being transferred to the chassis. The rebound damping can be adjusted externally in 22 clicks. The spring base can be continuously preloaded.

Features:
- Larger impacts are gently filtered and absorbed by the “blow-off valve”. This protects the rider more than ever from harsh impacts.
- With balance tank on the milled part
- Continuous spring preload using the supplied hook wrenchs
- 22-way adjustable rebound damping

Additional information and notes:
- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, for an extra charge, you can have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. In the Nightline version, the aluminium upper surfaces are anodised matt black, the spring is painted black, and appliqués serving the setting of the shock absorber are anodised red. For extra charge, see form (please specify colour during the order process).
- Also available in different lengths for raising or lowering: please enquire about lengths.
- Please also specify during the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road).
