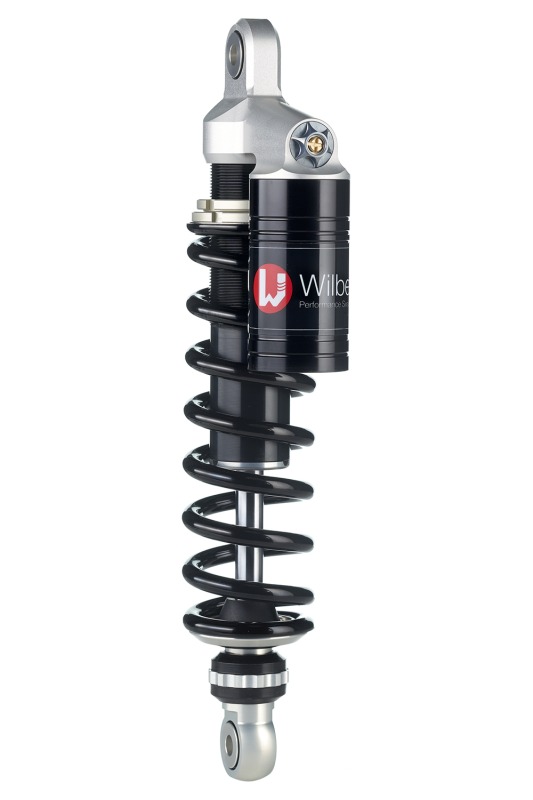

Wilbers shock absorber 632 Adjustline for BMW K 100 RS 83-

Product details

Wilbers Performance Suspension Adjustline 632 Competition, mono-shock rear, rebound and compression damping damping as well as spring preload adjustable, piggyback reservoir with milled part mounted on the shock absorber, for BMW K 100 RS, type BMW 100, model year 83-, with ABE according to scope of use.

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without external diameter space issues.

Adjustline 632
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection to the balance tank of the compression damping and houses the adjustment knobs for the low and high-speed range of the compression damping. 22 clicks per range allow for optimal fine adjustment. At maximum compression speeds, an overpressure valve prevents the shock absorber hydraulic from blocking and uncontrolled shocks from being transferred to the chassis. Rebound damping can be externally adjusted in 22 clicks. The spring base can be continuously preloaded.

Features:
- Larger impacts are gently filtered and absorbed by the “blow-off valve”. This protects the rider more than ever from harsh impacts.
- With balance tank on the milled part
- Continuous spring preload adjustment using the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

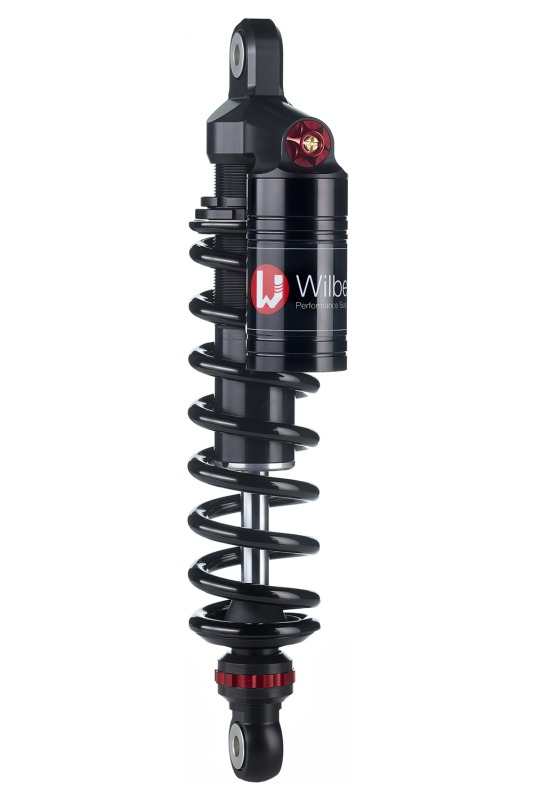

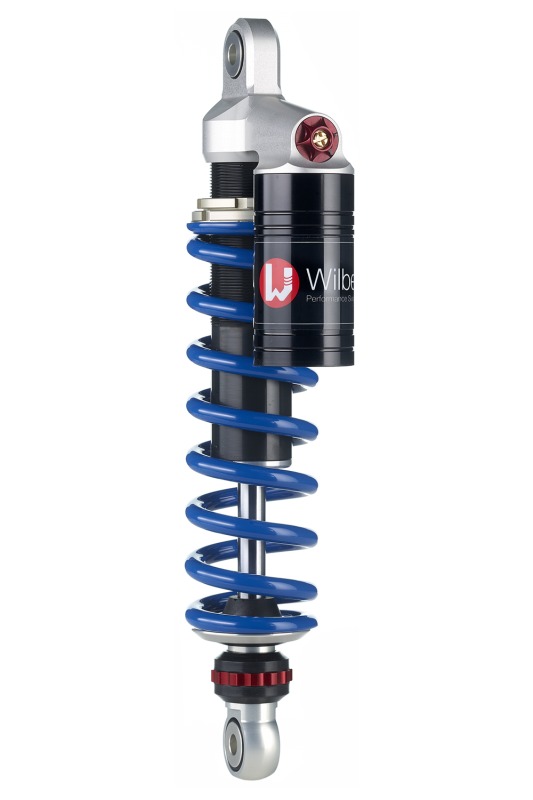

- In addition to the standard Blackline (black) and Blueline (blue) spring versions, for an additional charge, you can have the spring painted by us in any RAL colour. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. In the Nightline version, the aluminium upper surfaces are anodised matt black, the spring is painted black, and applications serving the setting of the shock absorber are anodised red. For surcharge, see form (please specify colour during the order process).
- Also available in different lengths for raising or lowering: please enquire about lengths.
- Please also specify during the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo riding without luggage in %, frequency of pillion riding in %, frequency of riding with luggage in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
