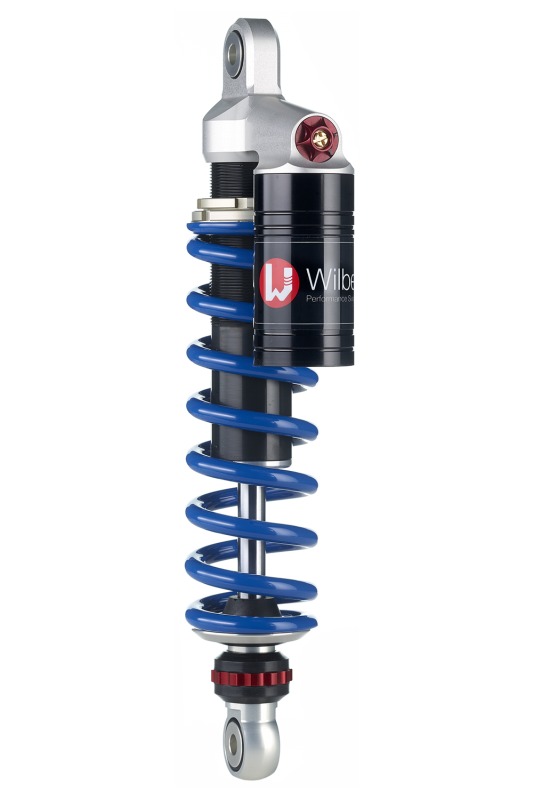

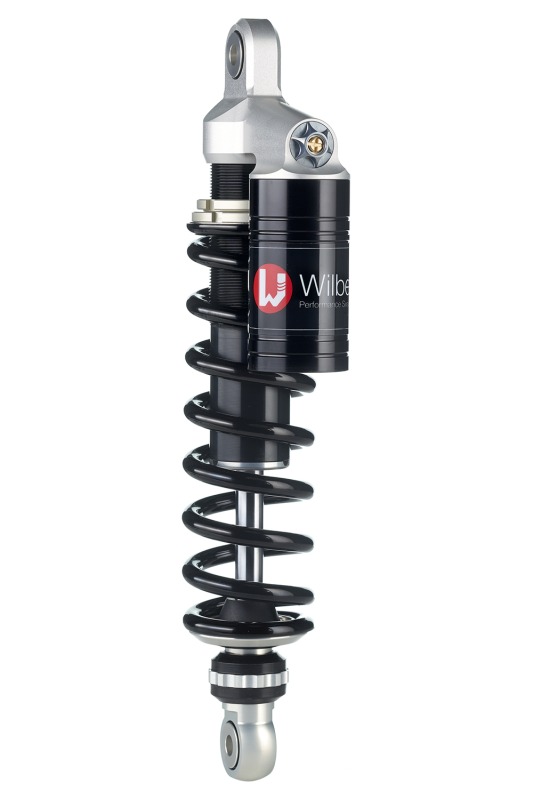

Wilbers shock absorber 632 Adjustline for BMW K 100 LT/ RT 83-99

Product details

Wilbers Performance Suspension Adjustline 632 Competition, mono-shock rear, rebound and compression damping as well as spring preload adjustable, pressure compensation reservoir with milled part mounted on the shock absorber, for BMW K 100 LT/ RT, type BMW 100, model year 83-99, with ABE according to scope of application.

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without outer diameter space issues.

Adjustline 632
The ultimate in motorcycle-shock absorbers! The upper mounting consists of a milled part. It serves as a connection for the balance tank of the compression damping and houses the adjustment knobs for the low and high-speed range of the compression damping. 22 stages per range allow for optimal fine adjustment. At maximum compression speeds, an overpressure valve prevents the shock absorber hydraulic from blocking and uncontrolled impacts from being transmitted to the chassis. The rebound damping can be adjusted externally in 22 clicks. The spring base can be continuously preloaded.

Features:
- Larger impacts are gently filtered and absorbed by the “blow-off valve”. This protects the rider more than ever from harsh impacts.
- With balance tank on the milled part.
- Continuous spring preload using the supplied hook wrench.
- 22-way adjustable rebound damping.

Additional information and notes:

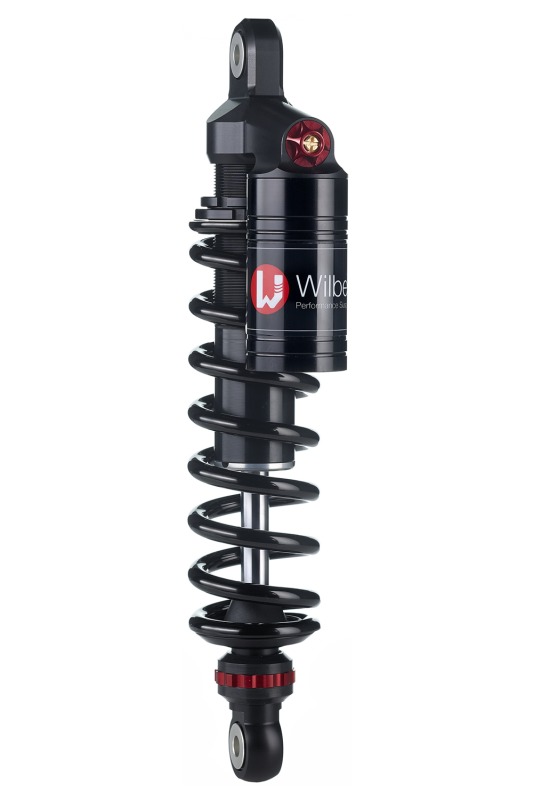

- In addition to the basic versions with a black (Blackline) and blue (Blueline) spring, you can, for an extra charge, have the spring painted by us in all RAL colours. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces in the Nightline are matt black anodised, the spring is painted black, and applications that serve the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour during the order process).
- Also available in various lengths for raising or lowering: please enquire about lengths.
- Please also specify during the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road).
