Wilbers shock absorber 631 Adjustline for Yamaha TZ 250 88-89

Product Details

Wilbers Performance Suspension Adjustline 631 Competition, mono rear shock absorber, with adjustable rebound and compression damping damping as well as spring preload, remote reservoir connected by a hose, for Yamaha TZ 250, Type , model year 88-89, with ABE according to scope of use.

General Description

Adjustline 36 mm radial pistons in precision ground cylinders guarantee optimal function without external diameter space issues.

Adjustline 631

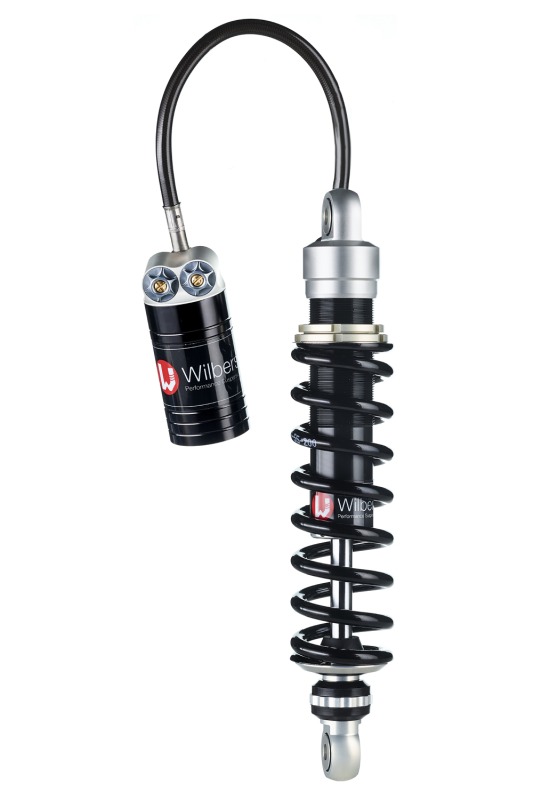

With this shock absorber, the balance tank is attached to a steel braided hose. This makes it the ideal shock absorber for street motorcycles with space constraints. The flexible hose allows the balance tank to be mounted where space is available – e.g., on the frame rear, where air currents from the air stream provide cooling. The adjustment knobs for the low and high-speed range of the compression damping damping, each adjustable in 22 increments, are also easily accessible from the outside. Rebound damping can be adjusted in 22 increments via an open bleed system, and the spring basis can be continuously adjusted.

Features:
- With hose-connected balance tank
- Continuous spring preload adjustment using the supplied hook wrench
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping

Additional Information and Notes:
- In addition to the standard versions with black (Blackline) and blue (Blueline) spring, for an additional charge, you can have the surface of any spring painted by us in all RAL colours (please specify colour during the order process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- Please also specify during the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo use without luggage in %, frequency of pillion use in %, frequency of luggage use in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
