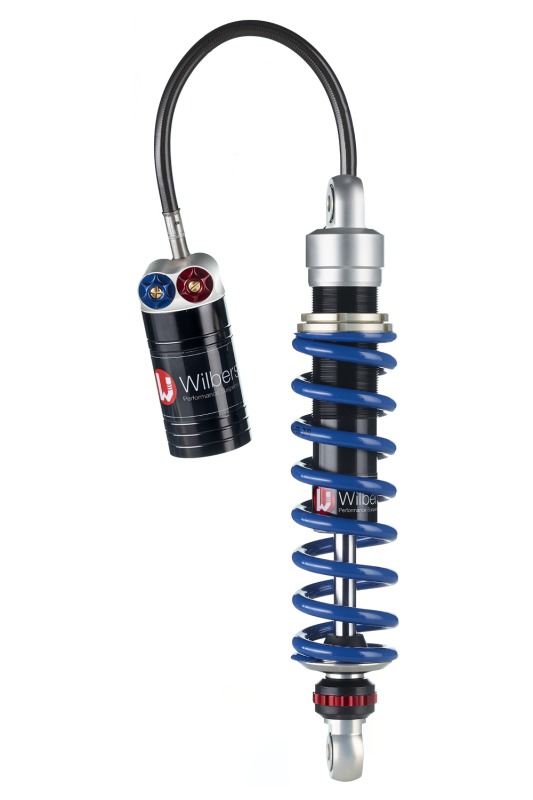

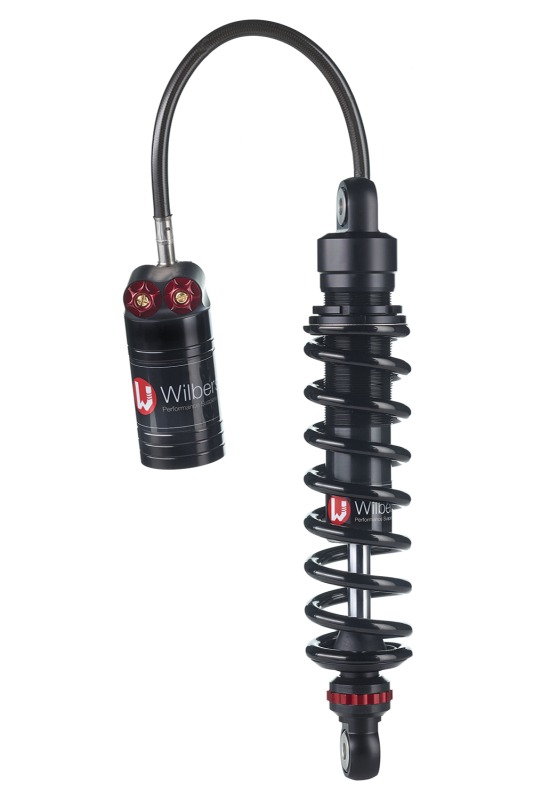

Wilbers shock absorber 631 Adjustline for Suzuki GS 500 E 89-

Product details

Wilbers Performance Suspension Adjustline 631 Competition, mono-shock rear, rebound and compression damping as well as spring preload adjustable, piggyback reservoir on a hose connection, for Suzuki GS 500 E, type GM 51 B / A / BK, model year 89-, with ABE according to the scope of application.

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without external diameter space issues.

Adjustline 631
With this shock absorber, the balance tank is attached to a steel braided hose. This makes it the ideal shock absorber for street motorcycles with space constraints. The flexible hose allows the balance tank to be mounted where space is available – e.g., on the frame rear, where air stream airflow provides cooling. The adjustment knobs for the low and high-speed range of the compression damping, each adjustable in 22 clicks, are also easily accessible from the outside. The rebound damping can be adjusted in 22 clicks via an open bleed system, and the spring preload can be continuously adjusted.

Features:
- With hose-connected balance tank
- Continuous spring preload adjustment using the supplied hook wrench
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping

Additional information and notes:
- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the surface of any spring painted by us in all RAL colours for an additional charge (please specify colour during the order process)
- Also available in different lengths for raising or lowering: please inquire about lengths
- Please also specify during the order process: rider weight including gear in kg, pillion weight including gear in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road)
