Wilbers shock absorber 631 Adjustline for Honda CB750 Hornet 2023-, 30 mm Lowering

Product Details

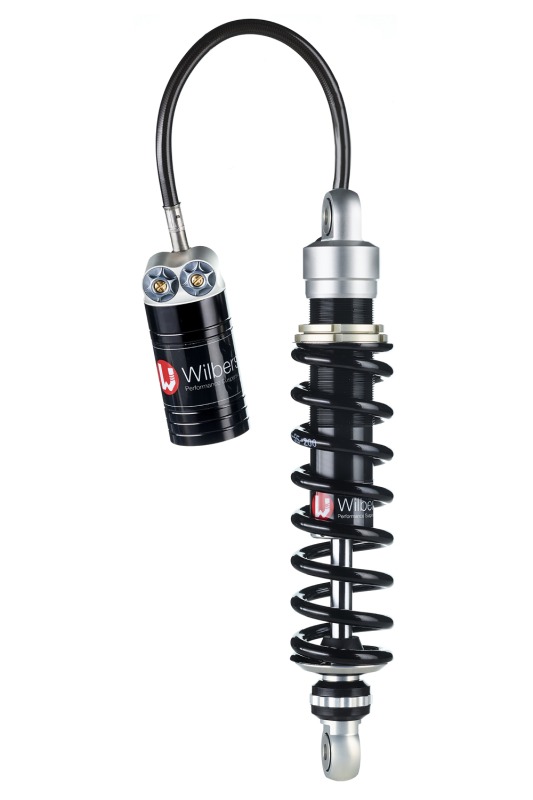

Wilbers Performance Suspension Adjustline 631 Competition, with 30 mm lowering, mono-shock rear, rebound and compression damping as well as spring preload adjustable, remote reservoir connected via a hose.

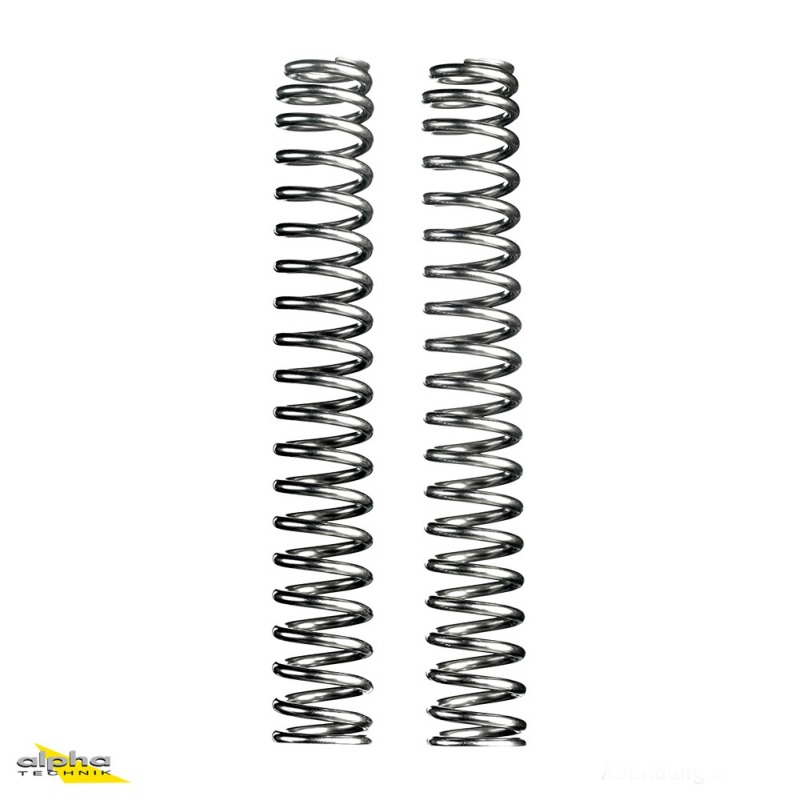

ABE only in conjunction with fork springs 601-0549-01 (order separately)!

For Honda CB750 Hornet, type RH12A/RH12B, from model year 2023-

General Description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without external diameter clearance issues.



Adjustline 631

With this shock absorber, the balance tank is attached via a braided steel hose. This makes it the ideal shock absorber for street motorcycles with clearance issues. The flexible hose allows the balance tank to be mounted where space permits - e.g., on the frame rear, where air stream airflow provides cooling. The adjustment knobs for the low- and high-speed compression damping range, each adjustable in 22 clicks, are also easily accessible from the outside. The rebound can be adjusted 22 times via an open bleed system, and the spring base can be continuously adjusted.



Features:

- With hose-connected balance tank

- Continuous spring preload adjustment via the included hook wrench

- 22-way adjustable low-speed compression damping damping

- 22-way adjustable high-speed compression damping damping

- 22-way adjustable rebound damping



Additional Information and Notes:

- In addition to the standard versions with black (Blackline) and blue (Blueline) spring, you can, at an extra cost, have the surface of any spring painted by us in all RAL colours (please specify colour during the order process)

- Also available in various lengths for raising or lowering: please enquire about lengths

- Please also specify during the order process: rider weight including gear in kg, pillion weight including gear in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
