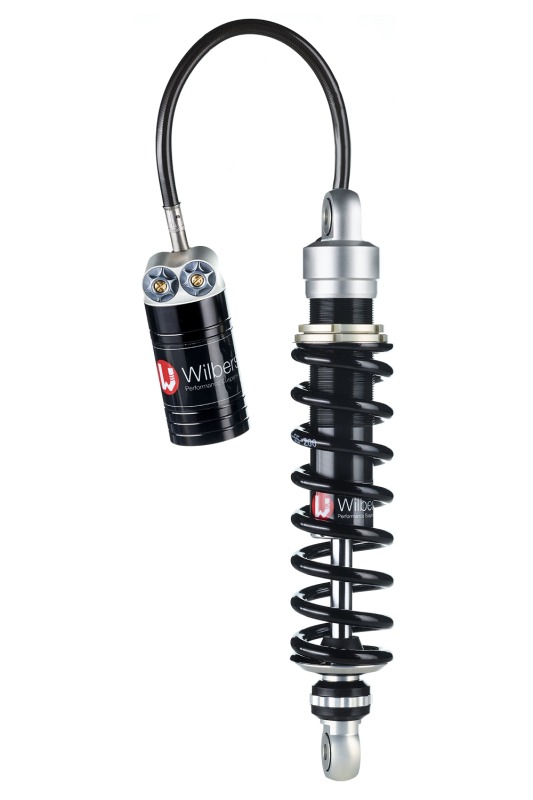

Wilbers shock absorber 631 Adjustline for BMW K 1100 RS 92-98

Product details

Wilbers Performance Suspension Adjustline 631 Competition, mono-shock rear, adjustable rebound and compression damping as well as spring preload, pressure expansion reservoir on a hose connection, for BMW K 1100 RS, Type BMW 100, model year 92-98, with ABE according to scope of use.

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without outer diameter space issues.

Adjustline 631
With this shock absorber, the balance tank is attached via a steel braided line. This makes it the ideal shock absorber for street motorcycles with space constraints. The flexible hose allows the balance tank to be mounted wherever there is space – for example, at the frame rear, where air currents from the air stream provide cooling. The adjustment knobs for the low- and high-speed ranges of the compression damping, each adjustable in 22 steps, are also easily accessible from the outside. The rebound can be adjusted 22-fold via an open bleed system, and the spring base can be continuously adjusted.

Features:
- With hose-connected balance tank
- Continuous spring preload via the supplied hook wrench
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping

Additional information and notes:
- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, for an extra charge, you can have the surface of any spring painted by us in all RAL colours (please specify colour during the ordering process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify in the ordering process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
