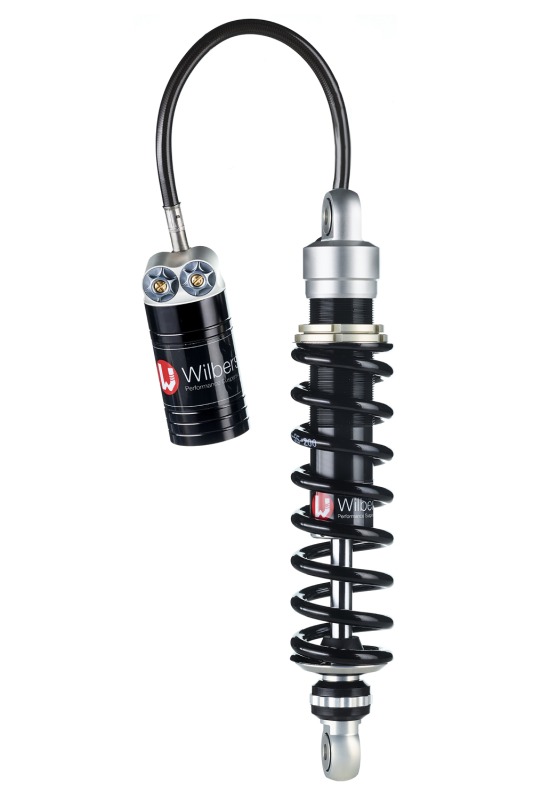

Wilbers shock absorber 631 Adjustline for BMW K 100 83-89

Product details

Wilbers Performance Suspension Adjustline 631 Competition, rear shock absorber, adjustable for rebound and compression damping as well as spring preload, remote reservoir on a hose connection, for BMW K 100, type BMW 100, model year 83-89, with ABE according to scope of use.

General description

Adjustline 36 mm radial pistons in precision ground cylinders guarantee optimal function without external diameter space issues.

Adjustline 631
With this shock absorber, the balance tank is attached to a braided steel line. This makes it the ideal shock absorber for street motorcycles with space constraints. The flexible hose allows the balance tank to be mounted wherever there is space – for example, on the frame tail, where air currents from the air stream provide cooling. The adjustment knobs for the low- and high-speed compression damping range, each adjustable in 22 clicks, are also easily accessible from the outside. The rebound damping can be adjusted 22-fold via an open bleed system, and the spring base can be continuously adjusted.

Features:
- With hose-connected balance tank
- Stepless spring preload by means of the supplied hook wrench
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping

Additional information and notes:
- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can, for an additional charge, have the surface of any spring painted by us in all RAL colours (please specify colour during the ordering process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify during the ordering process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road)
