Wilbers shock absorber 631 Adjustline for Beta Evo 125/200/250/290 (2-stroke) 09-

Product Details

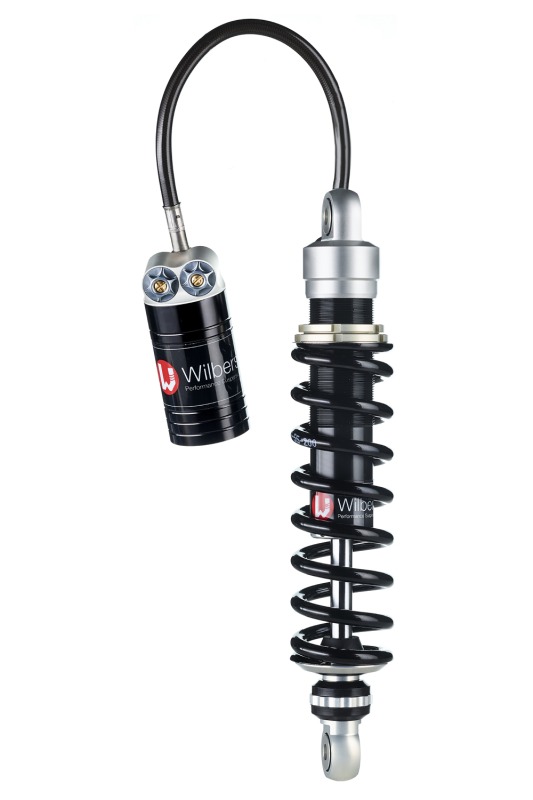

Wilbers Performance Suspension Adjustline 631 Competition, mono-shock absorber, rebound and compression damping as well as spring preload adjustable, piggyback reservoir on a hose connection, for Beta Evo 125/200/250/290 (2-stroke), type T 6, model year 09-, with ABE according to scope of use.

General Description

Adjustline 36 mm radial pistons in precision-ground cylinders guarantee optimal function without space issues in the outer diameter.

Adjustline 631
With this shock absorber, the balance tank is attached to a stainless steel braided hose. This makes it the ideal shock absorber for street motorcycles with space limitations. The flexible hose allows the balance tank to be mounted where space is available – for example, on the rear subframe, where air currents from the air stream provide cooling. The adjustment knobs for the low- and high-speed compression damping, each adjustable in 22 clicks, are also easily accessible from the outside. The rebound damping can be adjusted 22-fold via an open bleed system, and the spring preload can be steplessly adjusted.

Features:
- With hose-connected balance tank
- Stepless spring preload using the supplied hook wrench
- 22-way adjustable low-speed compression damping damping
- 22-way adjustable high-speed compression damping damping
- 22-way adjustable rebound damping

Additional Information and Notes:
- In addition to the standard versions with black (Blackline) and blue (Blueline) spring, you can have the surface of any spring painted by us in all RAL colours for an additional charge (please specify colour in the order process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- During the order process, please also state: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo riding without luggage in %, frequency of pillion riding in %, frequency of riding with luggage in %, riding style (touring/sporty), intended use (race track/street/off-road)
