Wilbers shock absorber 630 Adjustline for Harley Davidson Electra Glide Standard FLHT 96-08

Product details

Wilbers Performance Suspension 630 Adjustline, stereo shock absorbers rear (set), rebound and spring preload adjustable, for Harley Davidson Electra Glide Standard FLHT, type FLT / FL 1, model year 96-08, with ABE according to scope of application

General description

Adjustline 36 mm radial pistons in honed precision cylinders guarantee optimal function without external diameter space issues.

Adjustline 630
The basic version of the Wilbers Adjustline features the same technology as the more elaborate versions. The difference lies in the omission of the external balance tank and the adjustment options for compression damping. It makes no compromises regarding responsiveness and durability. Radial pistons, wet-running guide, Teflon-guided spherical plain bearings and other features redefine the standard for a basic shock absorber. Naturally, the spring base is also continuously adjustable here, and the rebound is adjustable over an extremely wide range via an open bleed system with 22 clicks. The shock absorber can be retrofitted with many extras from Wilbers.

Features:
- Continuous spring preload adjustment using the supplied hook wrenchs
- 22-way adjustable rebound damping

Additional information and notes:

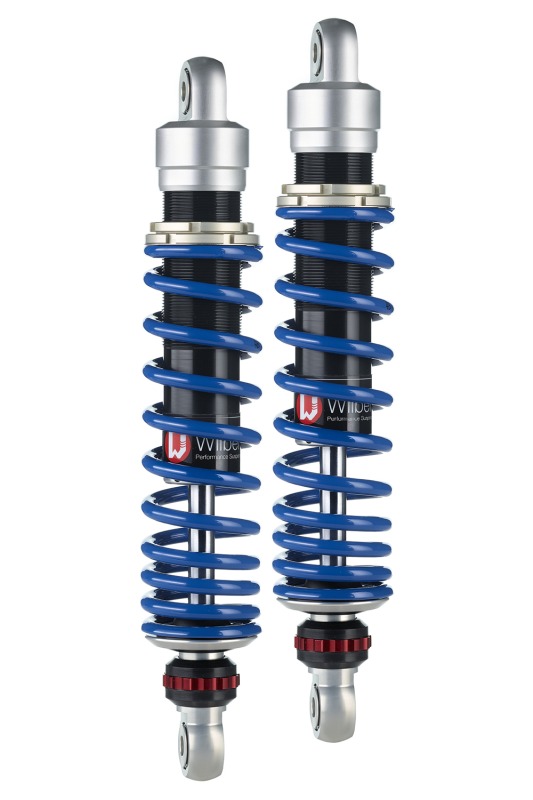

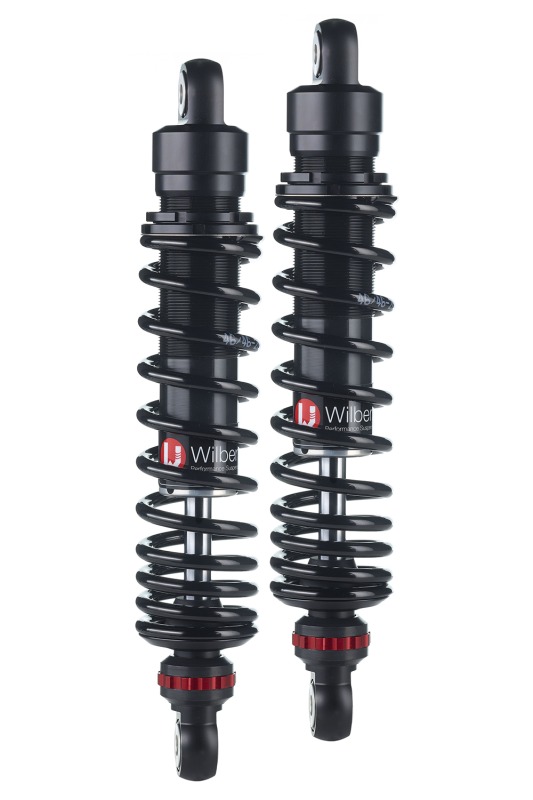

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours for an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matt black anodised in the Nightline, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour during the order process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- Please also specify during the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (race track/street/off-road)
