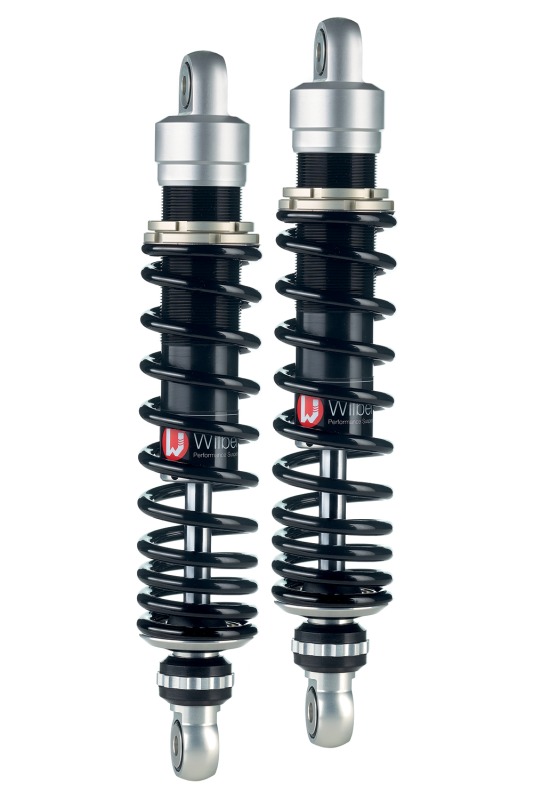

Wilbers shock absorber 630 Adjustline for Harley Davidson Dyna Super Glide FXD 04-

Product details

Wilbers Performance Suspension 630 Adjustline, stereo rear (set), rebound and spring preload adjustable, for Harley Davidson Dyna Super Glide FXD, type FD 1, model year 04-, with ABE according to scope of use

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without outer diameter space issues.

Adjustline 630
The basic version of the Wilbers Adjustline features the same technology as the more elaborate versions. The difference lies in the omission of the external balance tank and the adjustment options for compression damping. It makes no compromises in terms of response and durability. Radial pistons, wet running guides, PTFE-guided spherical bearings, and other features redefine the standard for a basic shock absorber. Of course, the spring base is continuously adjustable, and the rebound can be set over an extremely wide range with 22 clicks via an open bleed system. The shock absorber can be retrofitted with many extras from Wilbers.

Features:
- Stepless spring preload using the supplied hook wrenchs
- 22-way adjustable rebound damping

Additional information and notes:

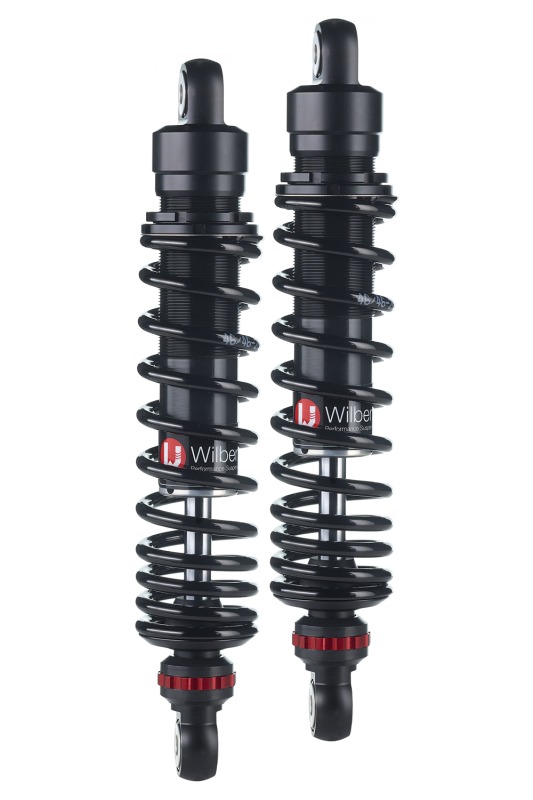

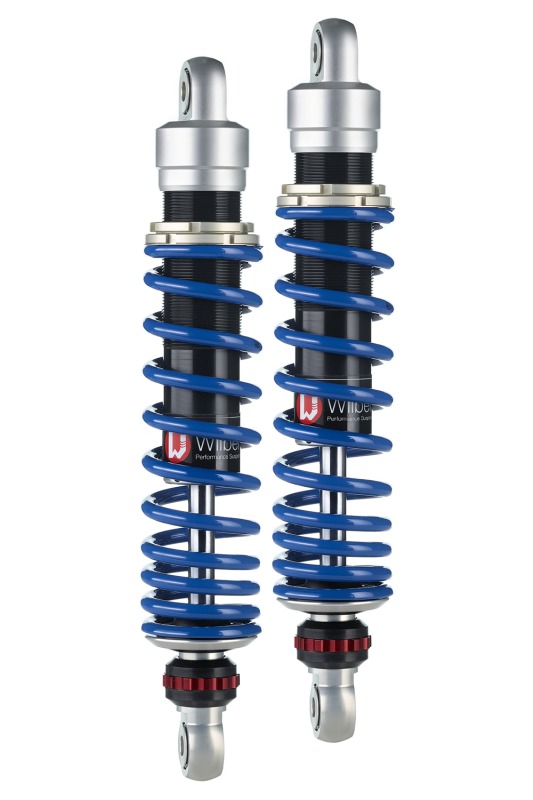

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, for an extra charge. Furthermore, it is possible to order the shock absorber as a Wilbers Nightline. In the Nightline, the aluminium upper surfaces are matte black anodised, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour in the ordering process)
- Also available in various lengths for raising or lowering: please inquire about lengths
- Please also specify in the ordering process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo riding without luggage in %, frequency of pillion riding in %, frequency of luggage use in %, riding style (touring/sporty), intended use (race track/street/off-road)
