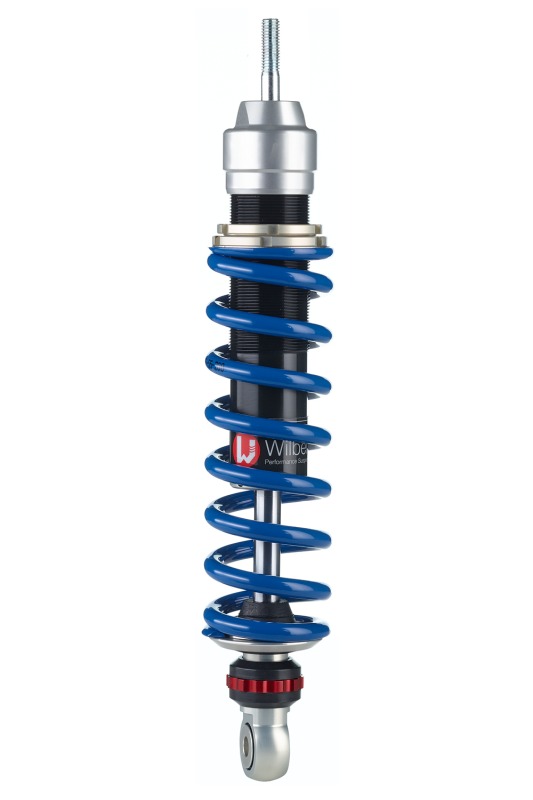

Wilbers shock absorber 630 Adjustline for BMW R 1200 RT 05-14

Product details

Wilbers Performance Suspension 630 Adjustline, mono shock fronte, rebound and spring preload adjustable, for BMW R 1200 RT, type R 12 T, model year 05-14, with ABE according to scope of use

General description

Adjustline 36 mm radial pistons in precision-honed cylinders guarantee optimal function without external diameter space issues.

Adjustline 630
The basic version of the Wilbers Adjustline features the same technology as the more elaborate versions. The difference lies in the omission of the external balance tank and the adjustment options for the compression damping. It makes no compromises in terms of responsiveness and durability. Radial pistons, wet-running guides, PTFE-guided spherical bearings, and other features redefine the standard for a basic shock absorber here. Naturally, the spring preload is also continuously adjustable, and the rebound damping is adjustable over an extremely wide range via an open bleed system with 22 clicks. The shock absorber can be retrofitted with many extras from Wilbers.

Features:
- Continuous spring preload adjustment using the supplied hook wrenchs
- 22-way adjustable rebound damping

Additional information and notes:

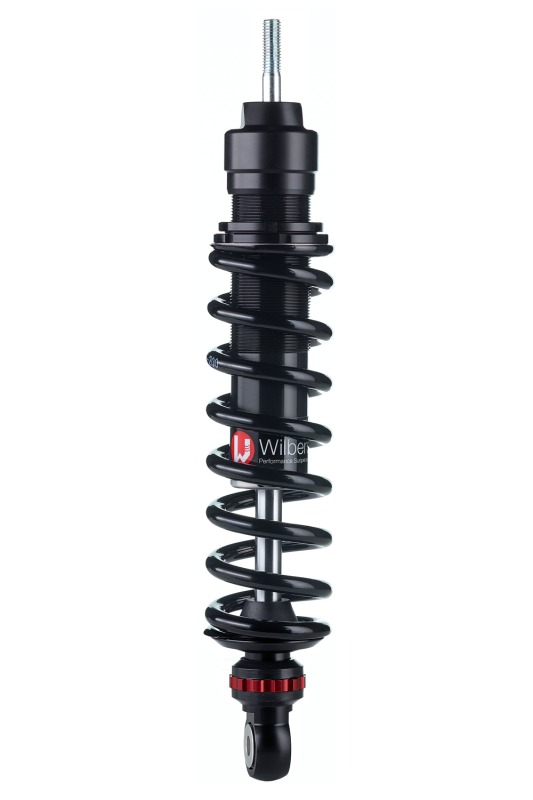

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours for an extra charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matte black anodised in the Nightline, the spring is painted black, and applications that serve the setting of the shock absorber are red anodised. For extra charge, see form (please specify colour in the order process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- Please also specify in the order process: rider weight incl. clothing in kg, pillion weight incl. clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
