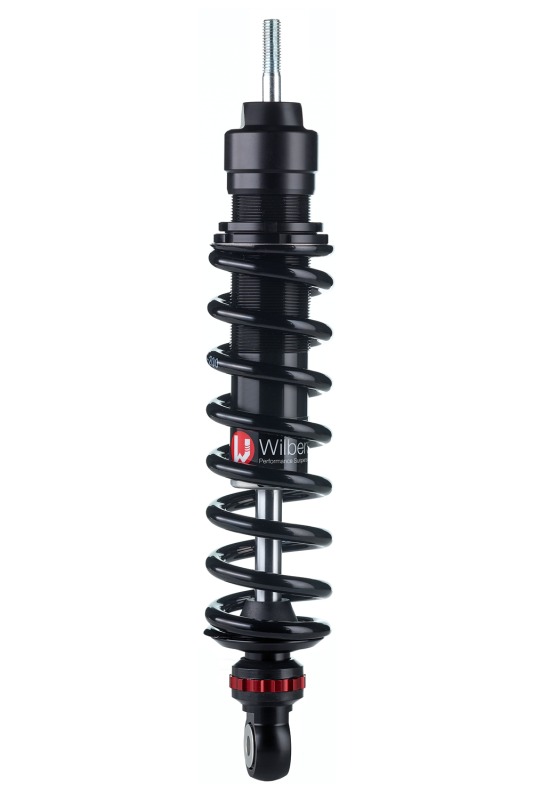

Wilbers shock absorber 630 Adjustline for BMW R 1150 RS 01-

Product details

Wilbers Performance Suspension 630 Adjustline, mono-shock fronte, rebound and spring preload adjustable, for BMW R 1150 RS, type R 11 RT / R 22, model year 01-, with ABE according to scope of application

General description

Adjustline 36 mm radial pistons in precision-honed cylinders guarantee optimal function without external diameter space issues.

Adjustline 630
The basic version of the Wilbers Adjustline features the same technology as the more elaborate versions. The difference lies in the absence of the external balance tank and the adjustment options in the compression damping. It makes no compromises in terms of responsiveness and durability. Radial pistons, wet-running guides, PTFE-guided spherical plain bearings, and other features redefine the standard for a basic shock absorber. Naturally, the spring basis is continuously adjustable here too, and the rebound damping can be set across an extremely wide range via an open bleed system with 22 clicks. The shock absorber can be retrofitted with many extras from Wilbers.

Features:
- Stepless spring preload by means of the supplied hook wrenchs
- 22-way adjustable rebound damping

Additional information and notes:

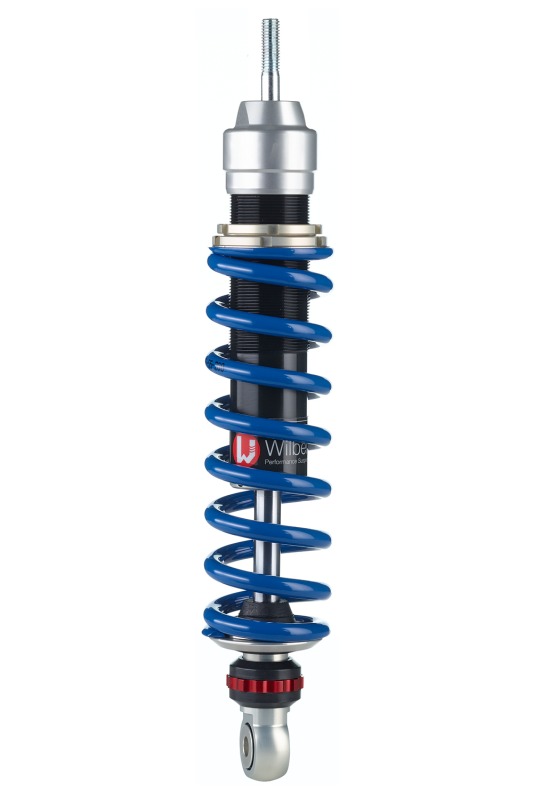

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours, at an additional cost. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces in the Nightline are anodised matt black, the spring is painted black, and applications serving the setting of the shock absorber are anodised red. For surcharges, see form (please specify colour during the ordering process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- During the ordering process, please also specify: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo operation without luggage in %, frequency of pillion operation in %, frequency of luggage operation in %, riding style (touring/sporty), intended use (racetrack/street/off-road)
