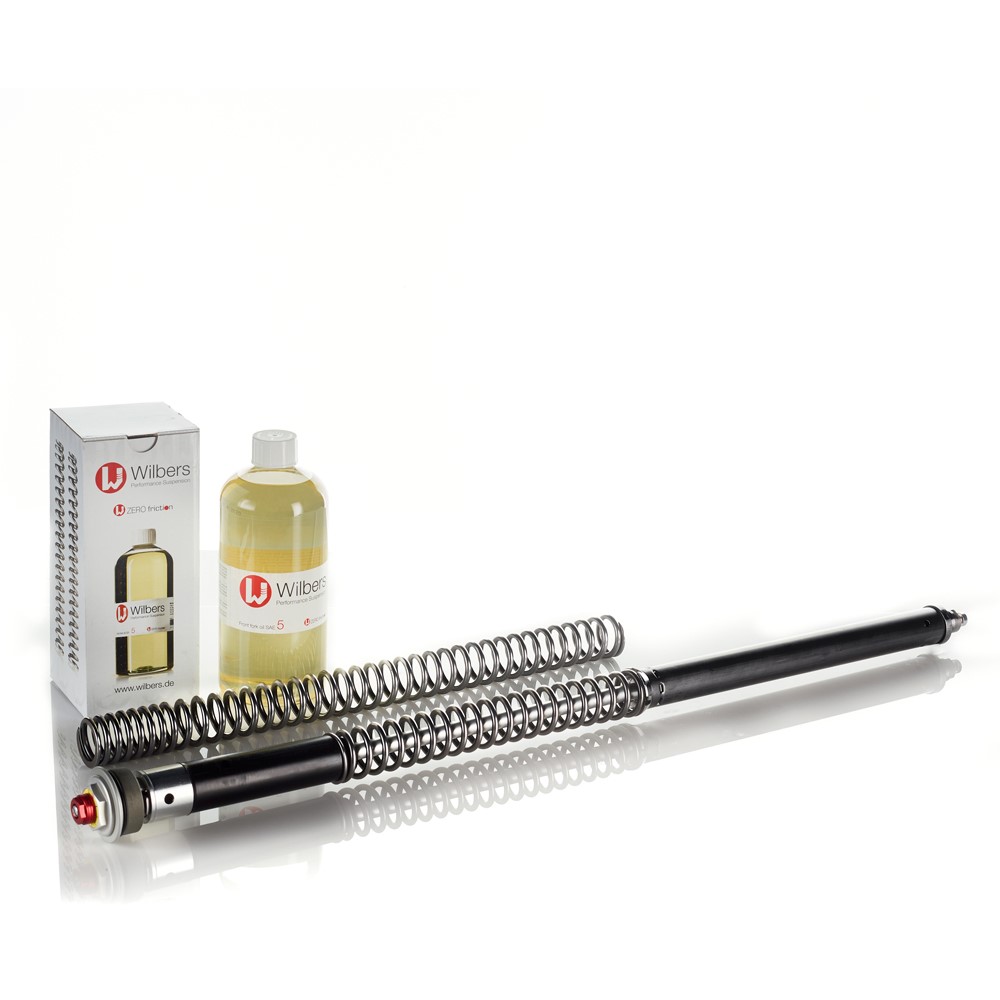

Wilbers Open Cartridge Set C30R for Suzuki GSX-8S, 2023-2025, Standard and +10mm Ride Height Adjustment
€899.10 gross €999.00 RRP incl. VAT
Article number:
WI-303-0016-00
Product Details
Wilbers Open Cartridge Set C30R Standard length or +10mm ride height adjustmentRebound and compression damping adjustable in 10 clicks, spring preload adjustable by 10mm, Zero friction spring, individually tuned for the rider,
GSX-8S, Type: WEM2, Model Year 2023-2025
GSX-8S, Type: WEM3, Model Year 2023-2025
with ABE according to scope of application
Delivery incl. fork oil
General Description
The fork can now be individually adjusted in terms of spring preload and damping with the ZF by Wilbers Cartridge Set. The large 30mm piston ensures very good response and sufficient progression. The standard fork spring with a spring rate of 8.5 N/mm can, of course, be freely chosen depending on rider weight and payload.Highlights:
- Compression damping adjustment range: 10 clicks
- Rebound damping adjustment range: 10 clicks
- spring preload adjustment range: 10mm
- 30mm piston
- *NEW* NOW INCLUDES FORK OIL!
fork oil SAE 2.5 (1 L)
Air chamber: 130mm
Standard / +10mm ride height adjustment
| fork filter: | Cartridge |
|---|
Recommended air chamber in millimetres per fork tube 130.00
Scope of Delivery
- 1x progressive Zero Friction fork spring for the left fork tube (includes reducing sleeve for lowering)
- 1x Wilbers powered by ZF open Cartridge for the right fork tube (adjustable in rebound damping and spring preload)
- 1 or 2 liter fork oil SAE 2.5
| Manufacturer | Model | Type | Model Year | Variant/Version | Homologation | ccm |
|---|---|---|---|---|---|---|
| Suzuki | GSX-8S | WEM2 EURO5 | 2023 - 2024 | Var 1 / Ver 1 | ABE | 800 |
| Suzuki | GSX-8S | WEM2 EURO5+ | 2024 - 2025 | Var 1 / Ver 1 | ABE | 800 |
| Suzuki | GSX-8S | WEM3 EURO5 | 2023 - 2024 | 35kW Var 1 / Ver 1 | ABE | 800 |
