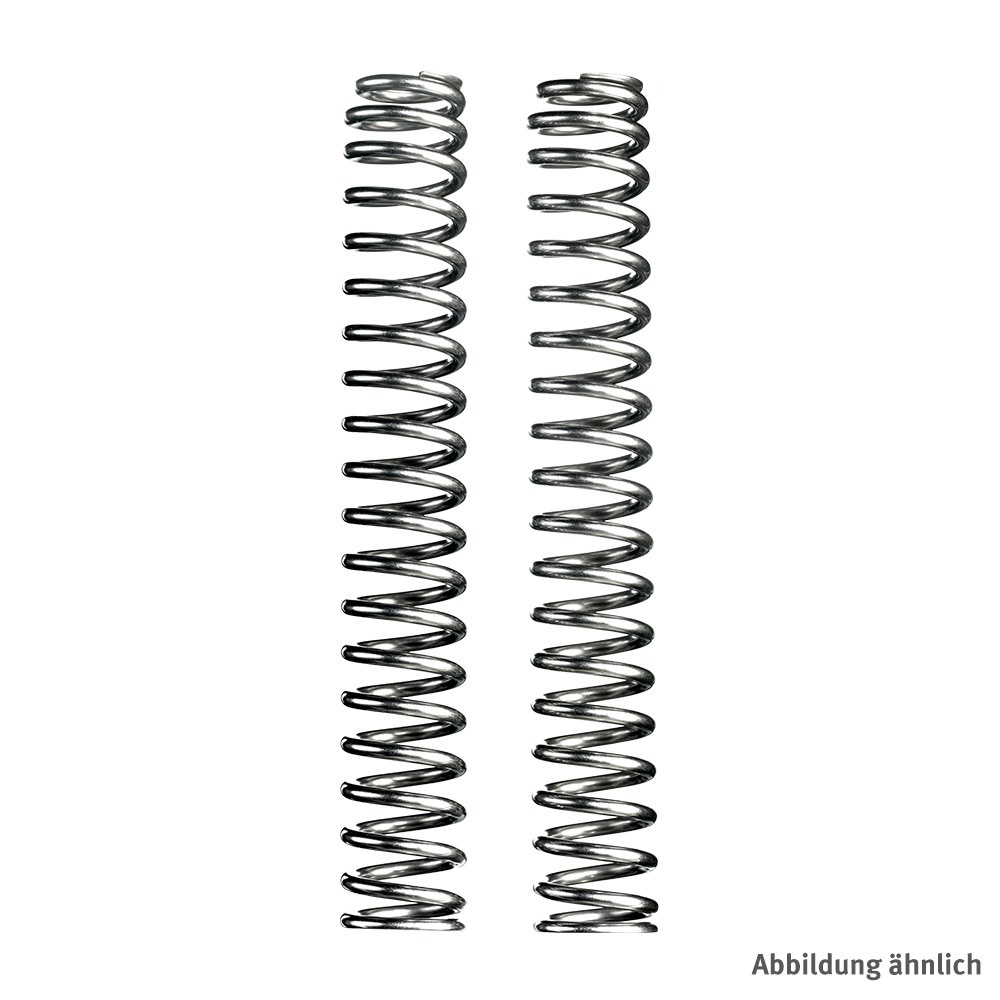

Wilbers fork springs for Suzuki SV 650 S 03-

Product Details

Wilbers fork spring kit, linear, spring rate 9.5 kg/cm, for Suzuki SV 650 S, Type WVBY, model year 03-, incl. 110 mm preload sleeves, (fork oil must be ordered separately), with ABE according to the application list

General Description

Depending on the application, Wilbers offers progressive or linear fork springs, manufactured from the best and highest quality chrome-silicon steel. For touring and touring sport, we generally recommend a progressive fork spring to optimise responsiveness and, on the other hand, to increase bottoming resistance. Crucial is the combination of the "Zero Friction" fork springs with the specially developed Wilbers fork oil, as well as observing the correct air chamber for the respective vehicle. If desired, a customised tuning can be achieved in special cases by changing the air chamber.
For motorsport applications, we recommend the very light linear chrome-silicon fork springs from Wilbers, which were co-developed by the Motorsport Team.

"ZERO friction" friction reduction through vibratory finishing:
During vibratory finishing, the components to be processed, such as Wilbers fork springs, are located together with an abrasive media specially adapted for this purpose in a vibrating container, the so-called trough vibrator.
The vibrations of the container create a relative movement between the workpiece and the abrasive media, leading to a smoothing of the componentupper surface through constant rubbing.
At the end of the process, a fine, glossy surface is achieved.
For Wilbers fork springs, this reduction in surface roughness means a minimisation of friction = ZERO friction.

Each set of fork springs includes a recommendation for the viscosity of the fork oil and the air chamber height in the fork. These values have been determined by experienced Wilbers technicians and ensure optimum riding comfort and feedback at the front wheel.

Note: please order the fork oil separately.
