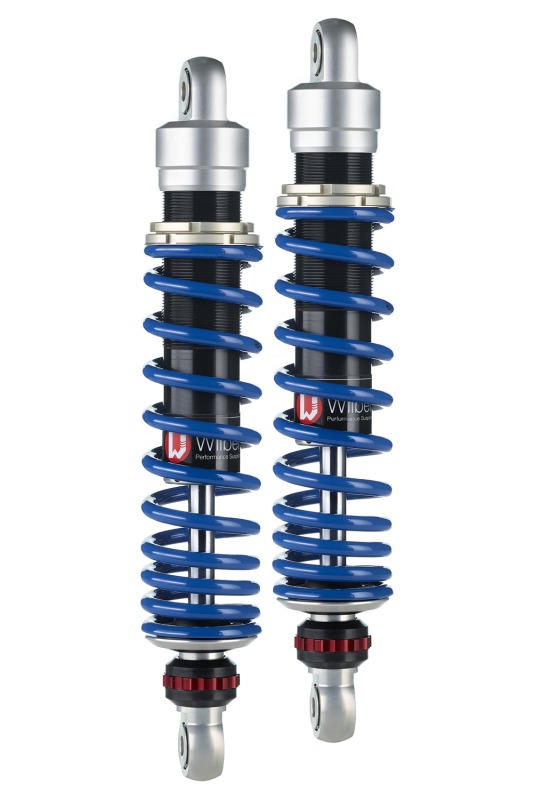

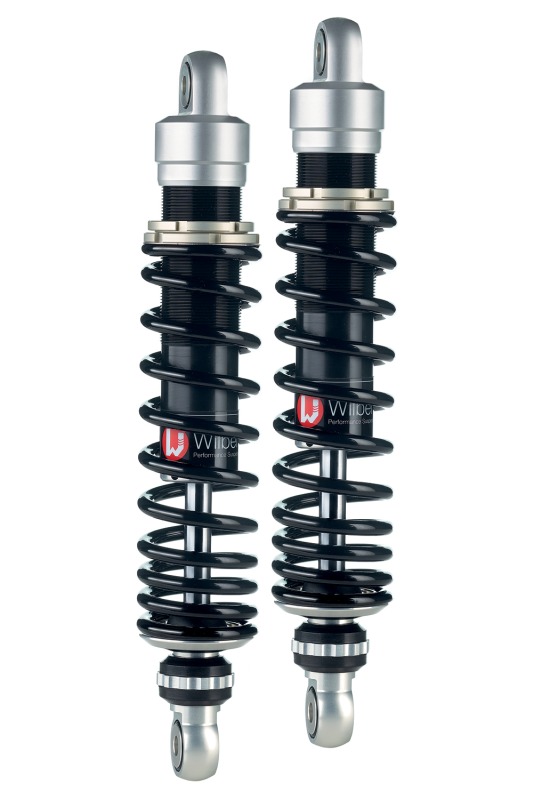

WI 630 Adjustline shock absorber for Harley Electra Glide

Product details

Wilbers Performance Suspension 630 Adjustline, stereo rear (set), rebound and spring preload adjustable, with ABE according to scope of use.
For Harley Davidson FLHTPI Electra Glide Standard Police, Type FL1, Model Year 2006-08

General description

Adjustline 36 mm radial pistons in precision-honed cylinders guarantee optimal function without external diameter space issues.

Adjustline 630
The basic version of the Wilbers Adjustline features the same technology as the more elaborate versions. The difference lies in the omission of the external balance tank and the adjustment options in the compression damping. It makes no compromises in terms of response and durability. Radial pistons, wet-running guides, PTFE-guided spherical plain bearings, and other features redefine the standard for a basic shock absorber here. Naturally, the spring base is also continuously adjustable, and the rebound can be set over an extremely wide range with 22 clicks via an open bleed system. The shock absorber can be retrofitted with many extras from Wilbers.

Features:
- Stepless spring preload using the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:
- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours for an additional charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper surfaces are matt black anodised in the Nightline, the spring is painted black, and applications serving the setting of the shock absorber are red anodised. For additional charges, see the form (please specify colour during the ordering process)
- Also available in various lengths for raising or lowering: please enquire about lengths
- During the ordering process, please also specify: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo use without luggage in %, frequency of pillion use in %, frequency of %, frequency of luggage use in %, riding style (touring/sporty), intended use (race track/street/off-road)
