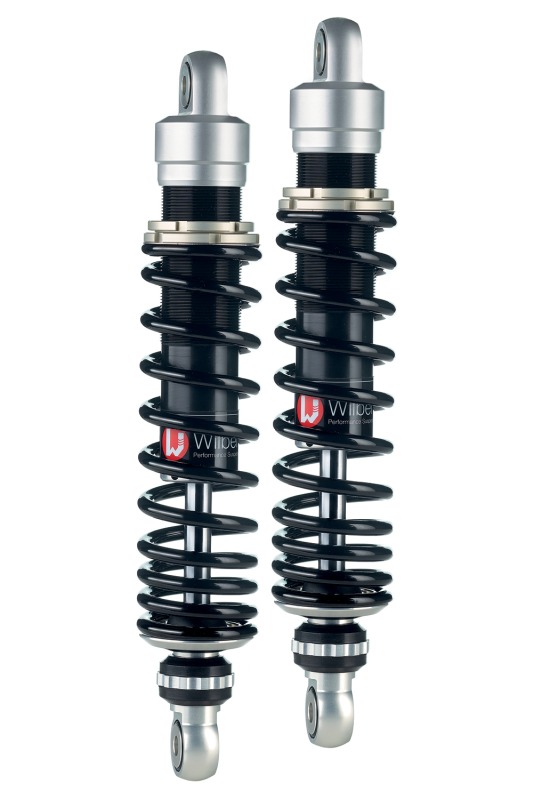

WI 630 Adjustline shock absorber for Harley Electra Glide Standard

Product details

Wilbers Performance Suspension 630 Adjustline, stereo rear (set), rebound and spring preload adjustable, with ABE according to scope of application.
For Harley Davidson FLHTCU / FLHTCUI Electra Glide Ultra Classic, type FL1, model year 2006-08

General description

Adjustline 36 mm radial pistons in ground precision cylinders guarantee optimal function without external diameter space issues.

Adjustline 630
The basic version of the Wilbers Adjustline features the same technology as the more elaborate versions. The difference lies in the omission of the external balance tank and the adjustment options for compression damping. It makes no compromises in terms of response and durability. Radial pistons, wet-running guides, PTFE-guided spherical bearings and other features redefine the standard for a basic shock absorber. Of course, the spring basis is continuously adjustable, and the rebound damping can be adjusted over an extremely wide range with 22 clicks via an open bleed system. The shock absorber can be retrofitted with many extras from Wilbers.

Features:
- Stepless spring preload using the supplied hook wrench
- 22-way adjustable rebound damping

Additional information and notes:

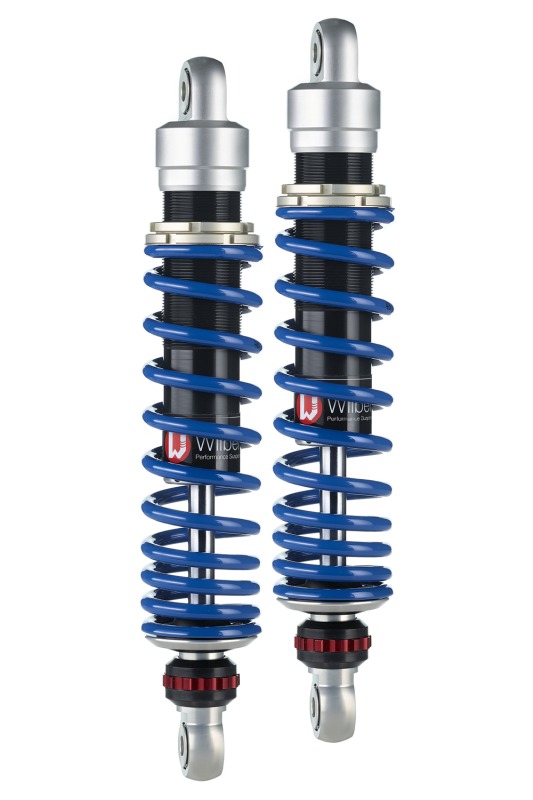

- In addition to the basic versions with black (Blackline) and blue (Blueline) spring, you can have the spring painted by us in all RAL colours for an additional charge. Furthermore, it is possible to order the shock absorber as Wilbers Nightline. The aluminium upper are anodised matt black in the Nightline, the spring is painted black and applications serving the setting of the shock absorber are anodised red. For surcharge, see form (please specify colour during the order process)
- Also available in different lengths for raising or lowering: please enquire about lengths
- Please also specify during the order process: rider weight including clothing in kg, pillion weight including clothing in kg, luggage weight in kg, frequency of solo use without luggage in %, frequency of pillion use in %, frequency of luggage use in %, riding style (touring/sporty), intended use (race track/street/off-road)
