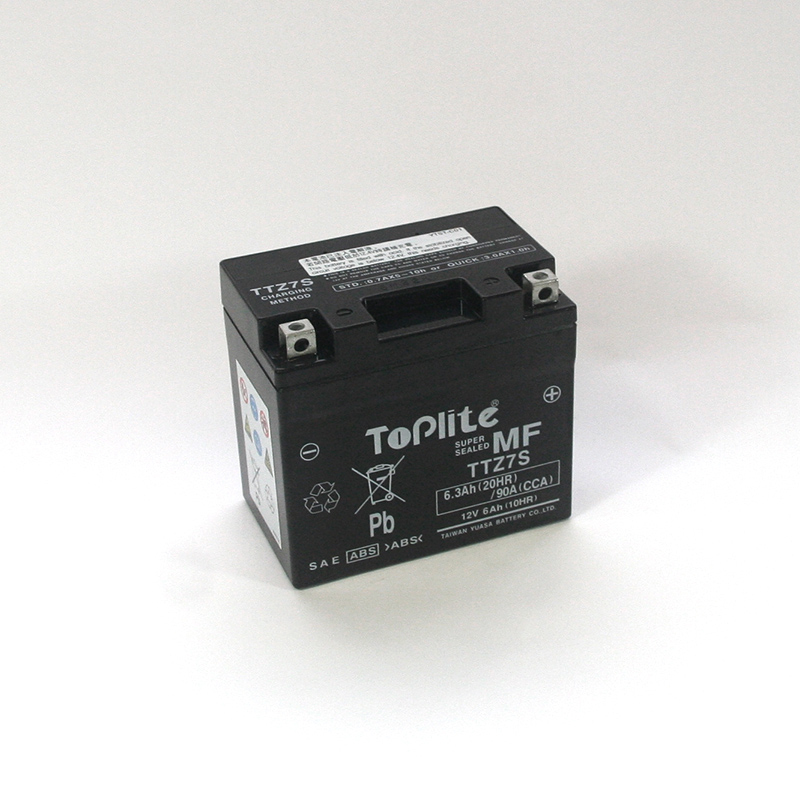

ToPlite YUASA Battery TTZ7-S

Product Details

ToPlite by YUASA maintenance-free battery TTZ7-S

General Description

The conventional 12-volt battery is the industry standard for motorcycles, snowmobiles, and ride-on mowers.
Its partition design delivers maximum power, performance, while the unique sealed terminals resist corrosion and provide a longer battery life.
The battery is supplied dry pre-charged and only needs to be filled (see notes below).

Features:
- Specifically designed to protect against leaks or corrosion
- Resists vibrations
- Patented separators offer high starting power
- Voltage: 12 volts
- Capacity 10 hours: 6 amp-hours (Ah), Capacity 20 hours: 6.3 Ah
- Dimensions (L x W x H): 113 x 70 x 105 mm
- Weight including acid approx. 3.4 kg
- Cold start capability (A) EN1 @ -18 C°: 130

Commissioning and notes on handling the acid pack:
Before filling the battery, safety glasses and gloves should be put on first. Make sure not to come into contact with the acid. Then remove the filler caps and the vent cap.
Fill with acid (the fluid level should settle between the Lower and Upper Level) and leave for approx. 30 minutes with the caps open to allow air to escape properly - then re-check the acid level check and top up if necessary.
Re-insert the sealing caps for the filling holees, connect the vent hose, fit, mount, install the battery and start – in this state, the battery does not yet have its full power, performance (approx. 70%), but usually allows for multiple starts without problems.
The battery reaches its full power, performance capacity on the first ride, or beforehand with the help of a battery capacity corresponding battery charger. Please use acid only for the initial filling - if the fluid level has dropped during battery use (after several rides), please only top up with distilled water!
