Öhlins TTX GP shock absorber Road & Track SU 469 for Suzuki GSX-R 600 2011-2019 and GSX-R 750 2011-2019
€1,745.85 gross
Article number:
OE-SU-469
Product Details

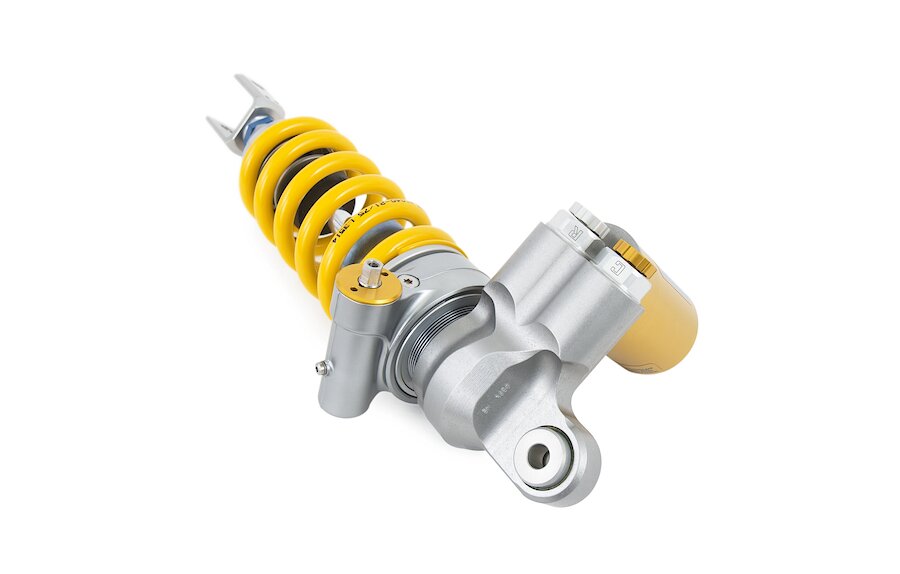

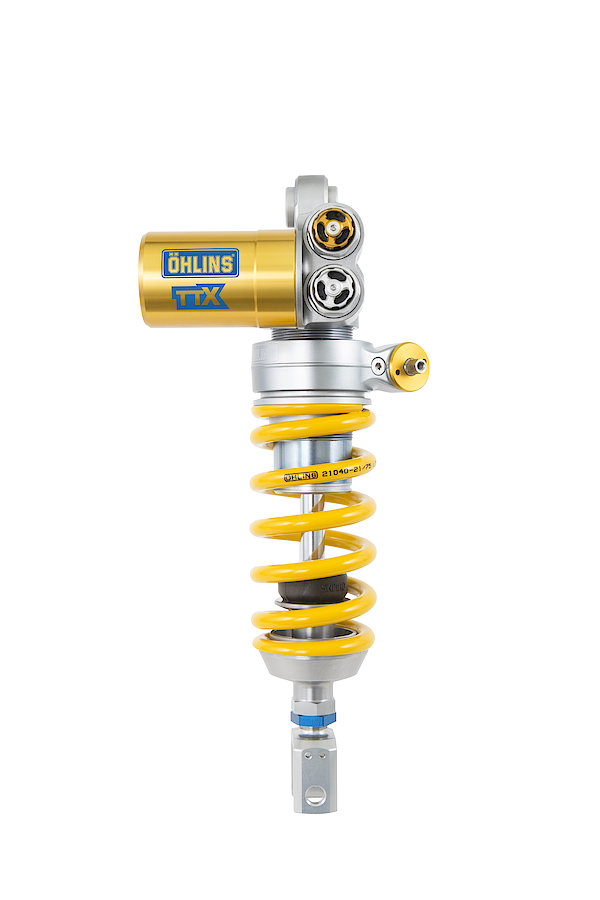

Öhlins TTX GP shock absorber Road & Track SU 469, mono rear shock, gas pressure shock with fixed external reservoir ("Piggy Back"); adjustable rebound damping, adjustable compression damping; integrated hydraulic spring preload adjuster; adjustable length; piston diameter 36 mm; with Vehicle Type Approval for SuzukiGSX-R 600, model year 2011-2016
GSX-R 750, model year 2011-2016
Without road approval for Suzuki
GSX-R 600 (Euro 3 model), year 2017-2019
GSX-R 750 (Euro 3 model), year 2017-2019
Description

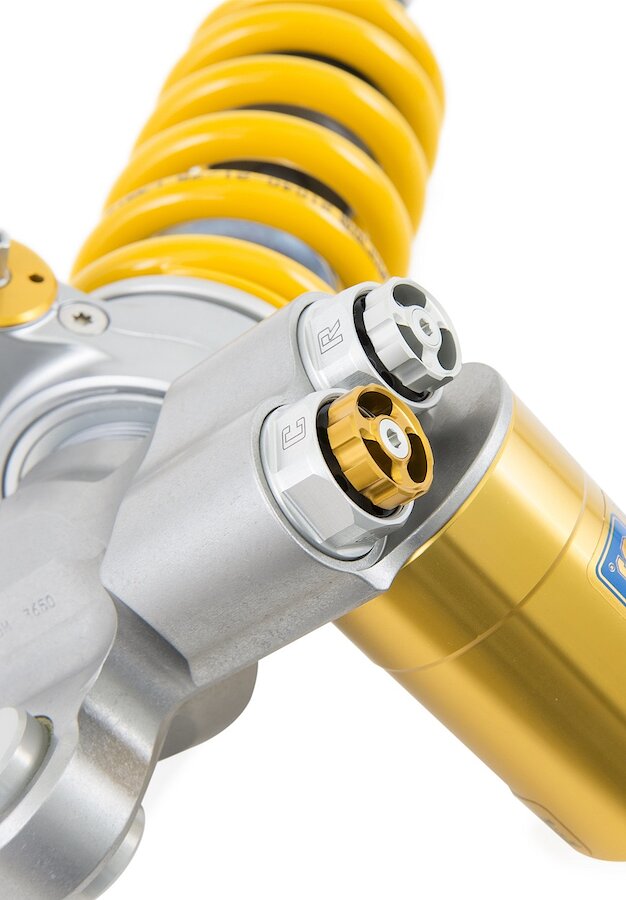

The TTX GP is our latest shock absorber for hypersport and sport bikes. It features the TTX twin tube technology but has been developed with the latest technology from Öhlins vast experiences in MotoGP.The compression and rebound damping adjustments are improved by a new adjustment needle with better guidance and different flow restriction behavior. It gives a more precise adjustment and constant function. The adjustment range is also wider and variations between shock absorbers are reduced.
A much improved chassis feedback as well as improved performance for the rider is obtained.
News also includes a new main piston. This gives the rider much better traction and feeling which means improved
control. The TTX GP is further optimized and shares all other benefits with the TTX36 shock absorber.
lenght 319 (+2/-4)mm; stroke 65mm; fitted spring 21040-31 (Y);
| Manufacturer | Model | Type | Model Year | Homologation | Position | ccm | |
|---|---|---|---|---|---|---|---|
| Suzuki | GSX-R600 | C3 | 2017 - 2022 | Monoshock | 600 | ||
| Suzuki | GSX-R600 | C3 | 2011 - 2016 | ABE | Monoshock | 600 | |
| Suzuki | GSX-R750 | C4 | 2017 - 2022 | Monoshock | 750 | ||
| Suzuki | GSX-R750 | C4 | 2011 - 2016 | ABE | Monoshock | 750 |
