Öhlins STX46 Shock Absorber Custom & Heritage HD 504 for Harley Davidson Softail Fat Bob and FXDR 114
€1,120.96 gross
Article number:
OE-HD-505
Product Details

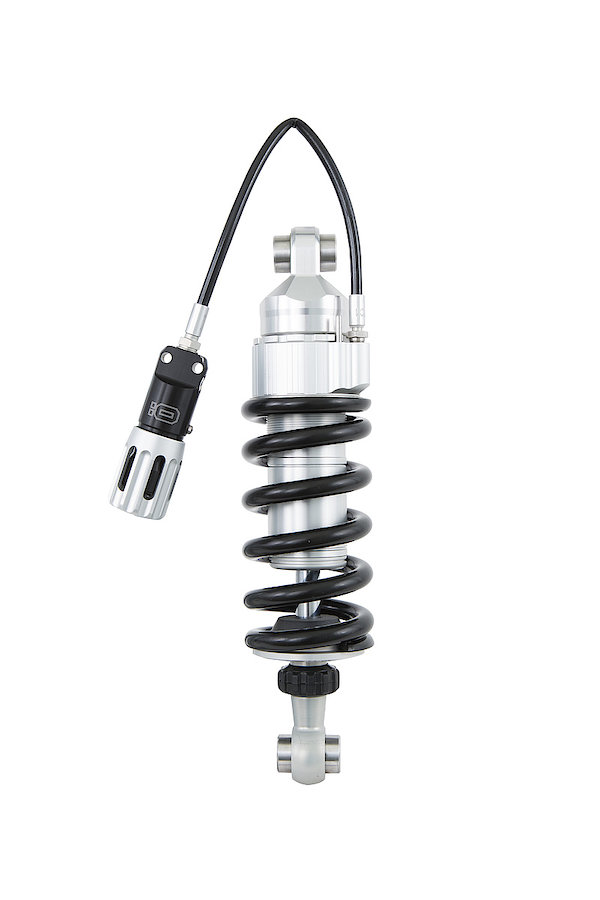

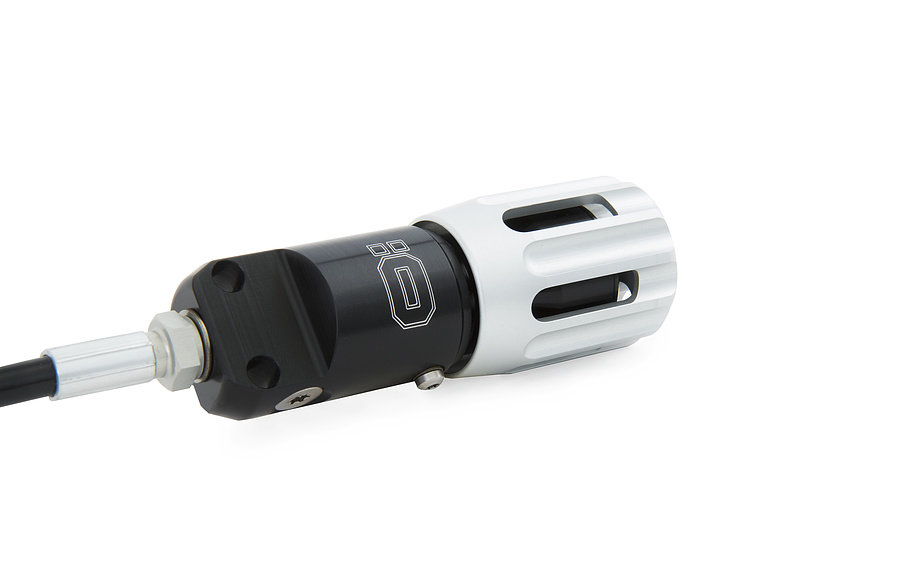

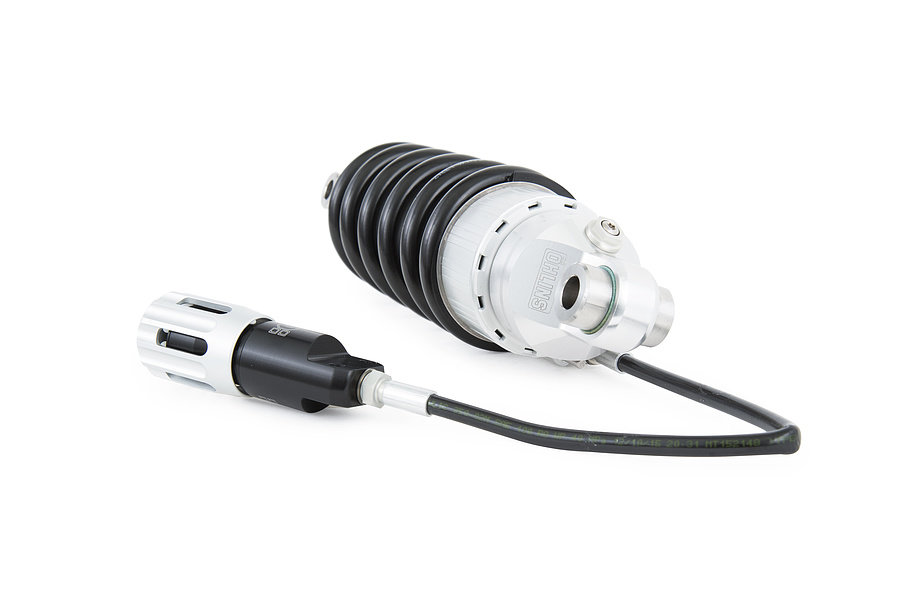

Öhlins STX46 Shock absorber Custom & Heritage HD 505, mono rear shock, gas pressure mono tube shock with integrated reservoir, adjustable rebound damping with adjustment wheel above the end eye, piston diameter 46 mm; with Vehicle Type Approval for Harley-DavidsonSoftail Fat Bob, Type FXFB , year 2018-2022
Softail FXDR 114, Type FXDR, year 2018-2020
Description
Based on your bike’s performance, its price and available mounting space we have designed a shockthat we think suits it, both when it comes to price and performance.
We start by choosing a type which we tailor-make for your specific bike. The basic setup, the design of the
shim stacks and the calibration of the adjusters, is tested both on road and track. They are the results of true tests with your bike and no guesswork!
Öhlins manufactures more than 300 different shock absorber models, each model is tailormade for one specific bike. The concept of all Öhlins products is not a secret, it is precision. Precision provides superior control of the damping force and the key to our success.
| Spring rate N/mm: | 105 |
|---|---|
| Stroke in mm: | 43 |
| Length in mm: | 318 |
shock absorber lenght 330 +6 mm; Stroke 43 mm; Fitted spring 21102-36
| Manufacturer | Model | Type | Model Year | Homologation | Position | ccm |
|---|---|---|---|---|---|---|
| Harley Davidson | Softail Fat Bob | FXFB | 2018 - 2022 | ABE | rear | 1750 |
| Harley Davidson | Softail FXDR 114 | FXDR | 2018 - 2020 | ABE | rear | 1868 |
