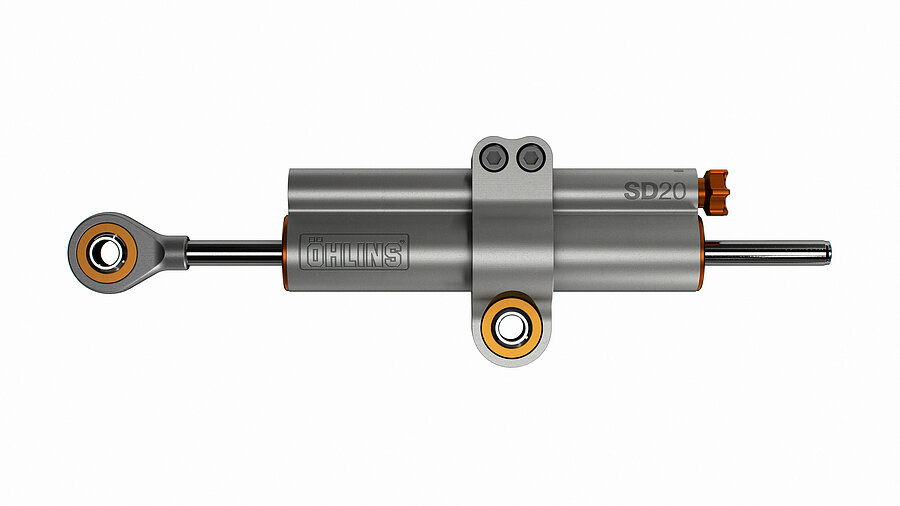

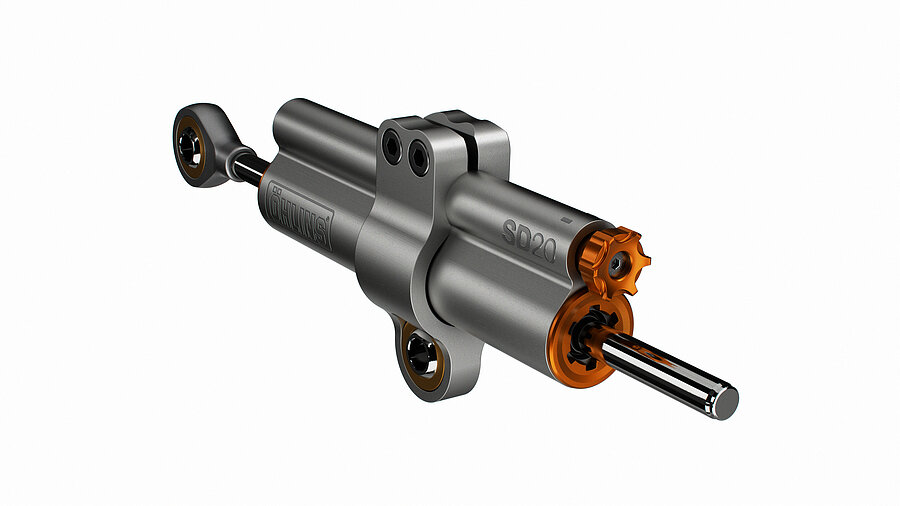

Öhlins Steering Damper Universal SD20 003 Stroke 120 mm

Product details

Öhlins Steering Damper Universal SD20 003, stroke 120 mm, installation length min 36.5 mm max 223.5 mm; without a parts certificate

General description

The new SD20 Road & Track steering damper with piston technology features a larger cylinder and piston, allowing for tighter tolerances and a more efficient design. With its exclusive cylinder valve design, inspired by our racing applications and the electronic steering damper (EC), it significantly improves riding comfort. Unlike a conventional needle valve, the cylinder valve has a series of openings limited by an edge inside the cylinder to balance the forces acting on the damper. This enables faster setting and greater sensitivity and responsiveness in both low and high adjustment ranges.

This universal version of our SD20 steering damper (SD20 004) has a stroke of 150 mm.

The new SD20 steering damper has been developed to improve agility and power, performance in all conditions and riding situations. Experience ultimate confidence and control – when accelerating, entering fast corners, or during brake at the corner entry. Whether you are chasing new lap records or seeking maximum comfort on the open street.

Features:

Ø20 mm piston

New, more advanced design

More compact construction

Improved damping force distribution

Increased damping force for better control

Faster reduction of handlebar and a safer riding feel compared to the SD16

Derived from Factory Racing technology

High-quality, titanium-anodised surface
