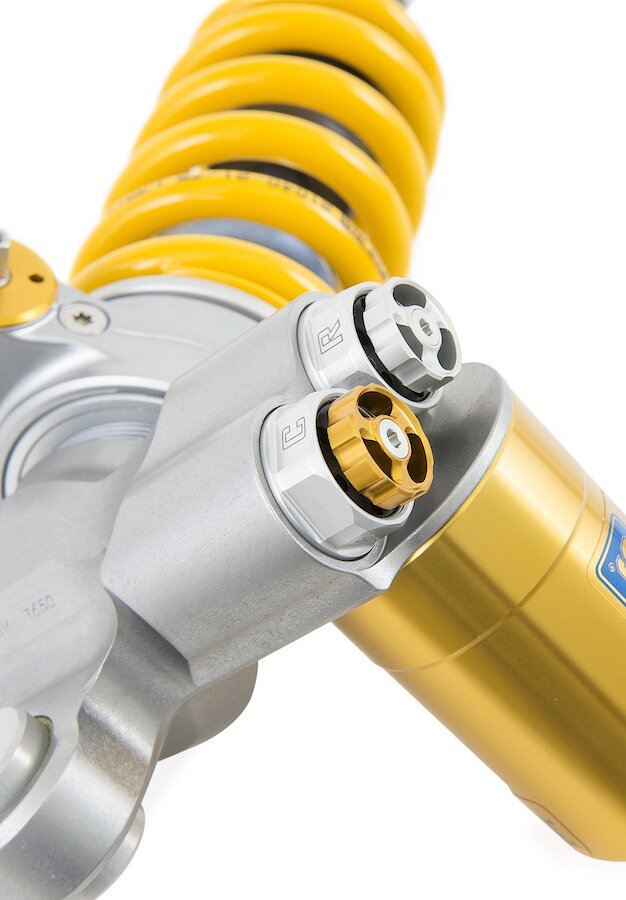

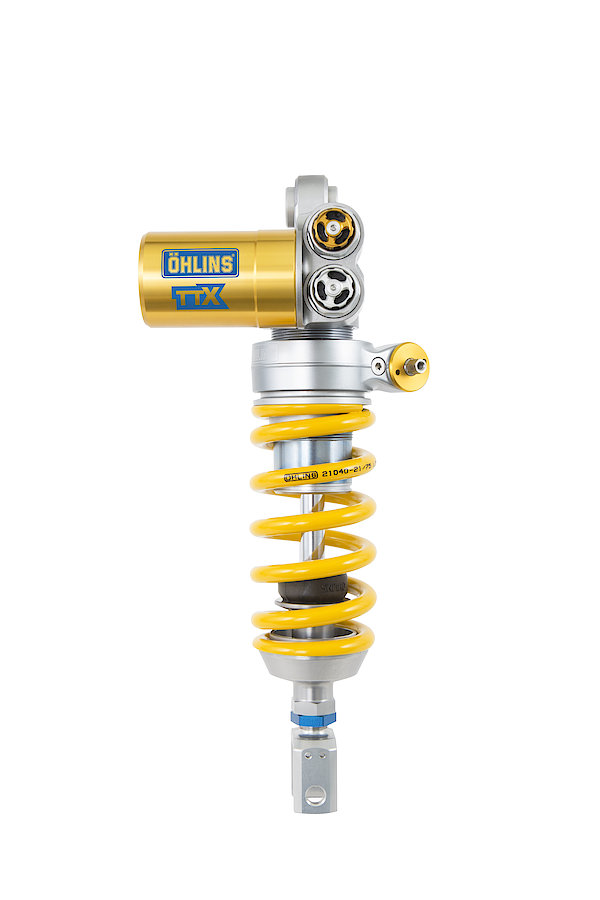

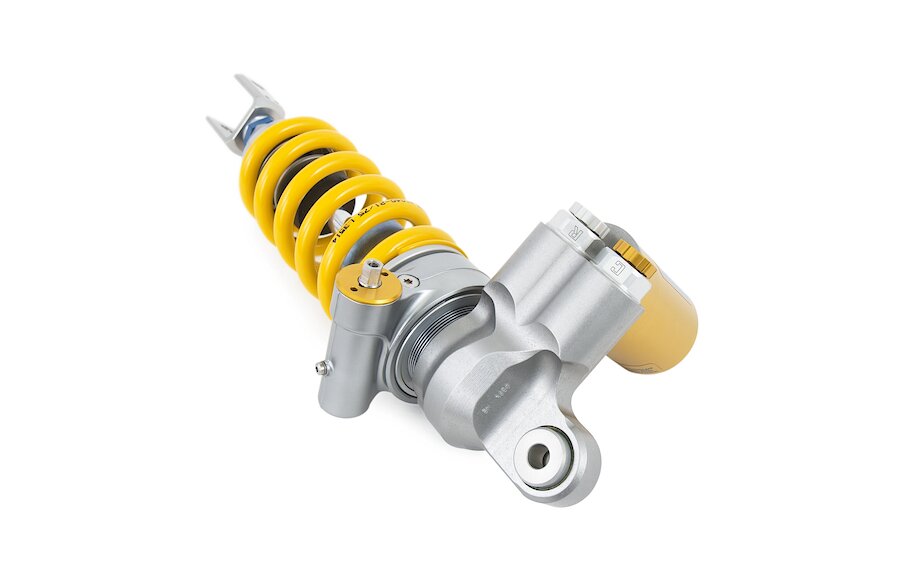

Öhlins shock absorber TTX GP Road & Track YA 468 for Yamaha YZF R1/M 2015-2021, MT-10 2016-, YZF 1000 2021-
€1,745.85 gross
Article number:
OE-YA-468
Product Details
Öhlins TTX GP Road & Track YA 468 shock absorber, rear monoshock, gas-pressure damper with fixed, externa reservoir ("Piggy Back"); adjustable rebound damping, adjustable compression damping damping; integrated hydraulic spring preload adjuster; adjustable length; piston diameter 36 mm; with ABE for YamahaYZF R1, model year 2015-2021
YZF 1000, from model year 2021
YZF R1M, model year 2015-2021
MT-10, from model year 2016-
General Description
The TTX GP is our new shock absorber for sports motorcycles. It features TTX Twin Tube technology and is based on Öhlins' latest experience values from MotoGP.The setting of the compression and rebound damping can be improved due to a new needle valve with optimised guide and modified flow restriction behaviour. This allows for even more precise setting and absolutely consistent function. As a result, the adjustment range is further extended, and chassis feedback is once again improved.
Among the innovations is also a new main piston. This enables improved traction, as well as more control for the rider. The TTX GP is a further development of the TTX36 shock absorber and therefore has the same advantages, only optimised.
Installation Instructions Öhlins Motorcycle YA 468 (German)
Öhlins Motorcycle YA 468 Fitting Instructions (English)
Operating Instructions Öhlins Motorcycle TTX GP Shock Absorber Road Track (English)
Operating Instructions Öhlins Motorcycle TTX GP Shock Absorber Road Track (German)
Product News Öhlins Motorcycle YA 468 (English)
Product News Öhlins Motorcycle YA 468 (English)
shock absorber length 315 +6/-0mm; Stroke 60mm; Fitted spring: 21041-29 (Y);
Changed Vehicle Parts
Attention, semi-active suspension function is lost on YZF-R1M!
| Manufacturer | Model | Type | Model Year | Homologation | Position | ccm |
|---|---|---|---|---|---|---|
| Yamaha | MT10 | RN45 EURO4 | 2016 - 2021 | ABE | rear | 1000 |
| Yamaha | MT10 | RN78 EURO5 | 2021 - | ABE | rear | 1000 |
| Yamaha | YZF-R1 | RN32 | 2015 - 2016 | ABE | rear | 1000 |
| Yamaha | YZF-R1 | RN49 EURO4 | 2017 - 2019 | ABE | rear | 1000 |
| Yamaha | YZF-R1 | RN65 EURO5 | 2021 - | ABE | rear | 1000 |
| Yamaha | YZF-R1 M | RN32 | 2015 - 2016 | ABE | rear | 1000 |
| Yamaha | YZF-R1 M | RN49 EURO4 | 2017 - 2019 | ABE | rear | 1000 |
| Yamaha | YZF-R1 M | RN65 EURO5 | 2021 - | ABE | rear | 1000 |
