Öhlins shock absorber TTX GP Road & Track TR 469 for Triumph Daytona 675, 675 R 2013-2018 and Daytona 765 Moto2, 2020-2021
€1,745.85 gross
Article number:
OE-TR-469
Product details

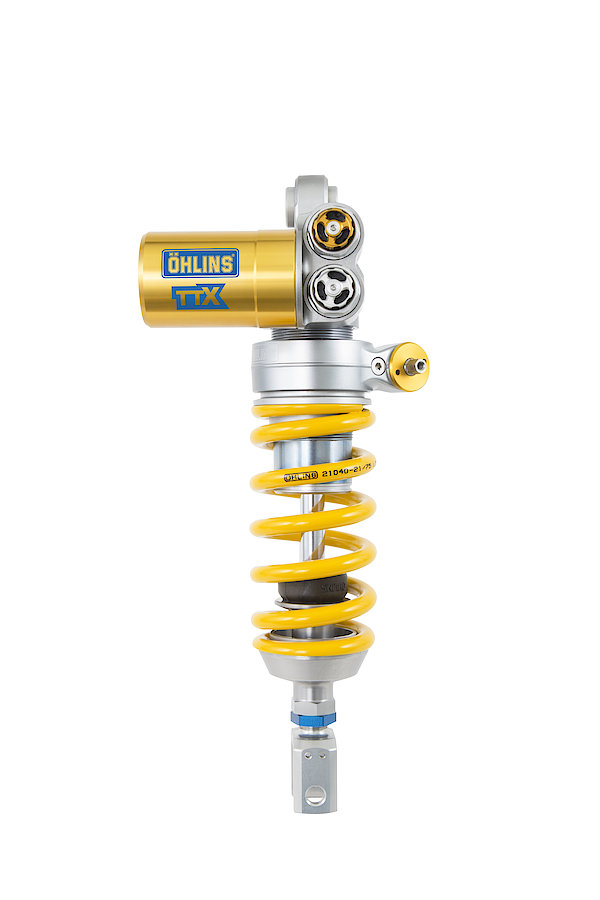

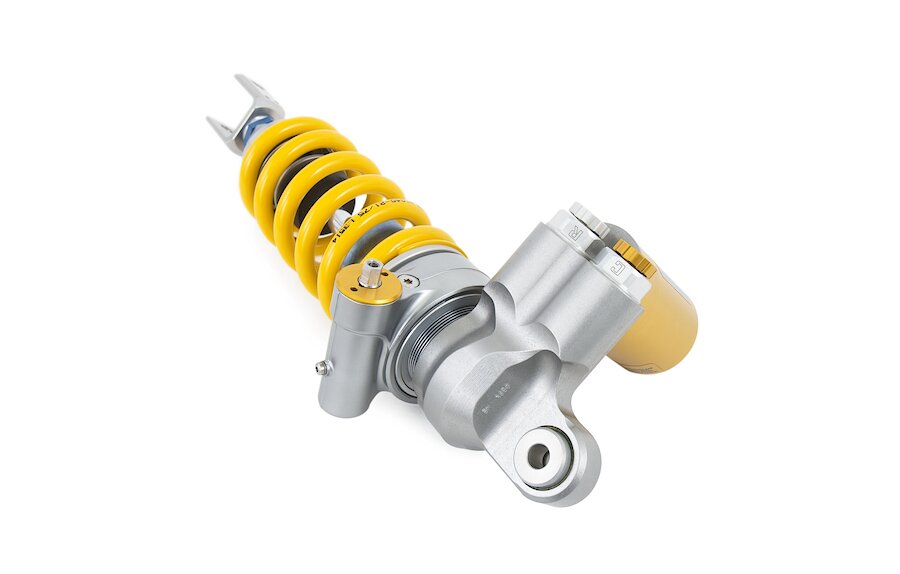

Öhlins TTX GP shock absorber Road & Track TR 469, monoshock rear, gas-pressure damper with fixed, externa reservoir (“Piggy Back”); adjustable rebound damping, adjustable compression damping damping; integrated hydraulic spring preload adjuster; adjustable length; piston diameter 36 mm; with ABE for TriumphDaytona 675 / R, model year 2013-2018
Daytona 765, model year 2020-2021
General description

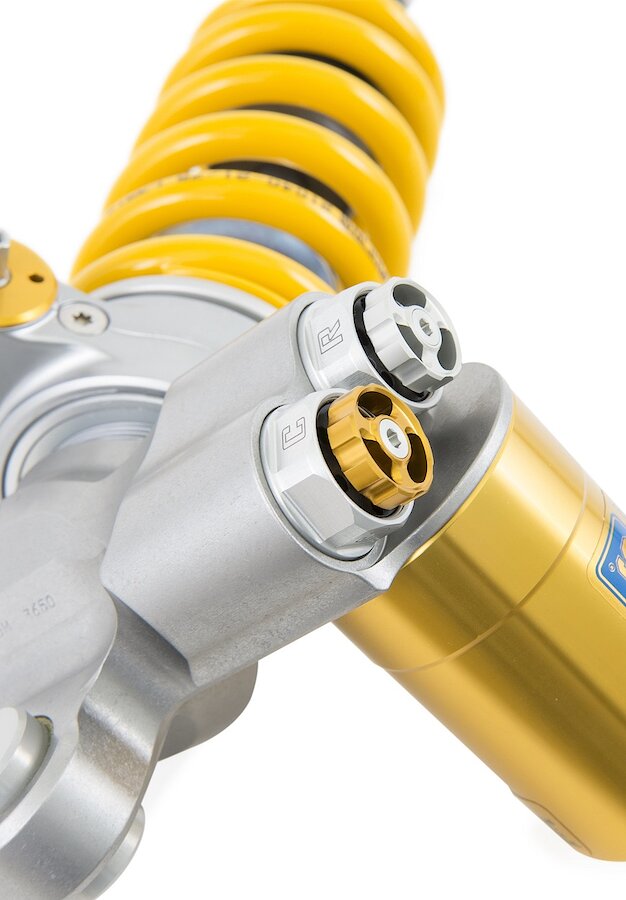

The TTX GP is our new shock absorber for sport motorcycles. It features TTX Twin Tube Technology and is based on Öhlins' latest experience data from MotoGP.The setting of the compression and rebound damping can be improved due to a new needle valve with optimised guide and modified flow restriction behaviour. This allows for even more precise setting and absolutely consistent function. As a result, the adjustment range has been further extended and chassis feedback improved once again.
New features also include a new main piston. This enables improved traction, as well as more control for the rider. The TTX GP is a further development of the TTX36 shock absorber and therefore has the same advantages, only optimised.
shock absorber length 295.5 +5.5/-0.5mm; Stroke 60mm; Installed spring: 21040-34 (Y);
| Manufacturer | Model | Additional designation | Type | Model year | Homologation | Position | ccm |
|---|---|---|---|---|---|---|---|
| Triumph | Daytona 675 | H67 | 2013 - 2018 | ABE | rear | 675 | |
| Triumph | Daytona 675R | H67 | 2013 - 2018 | ABE | rear | 675 | |
| Triumph | Daytona 765 | Moto 2 Limited Edition | HB06 EURO4 | 2020 - 2021 | ABE | rear | 765 |
