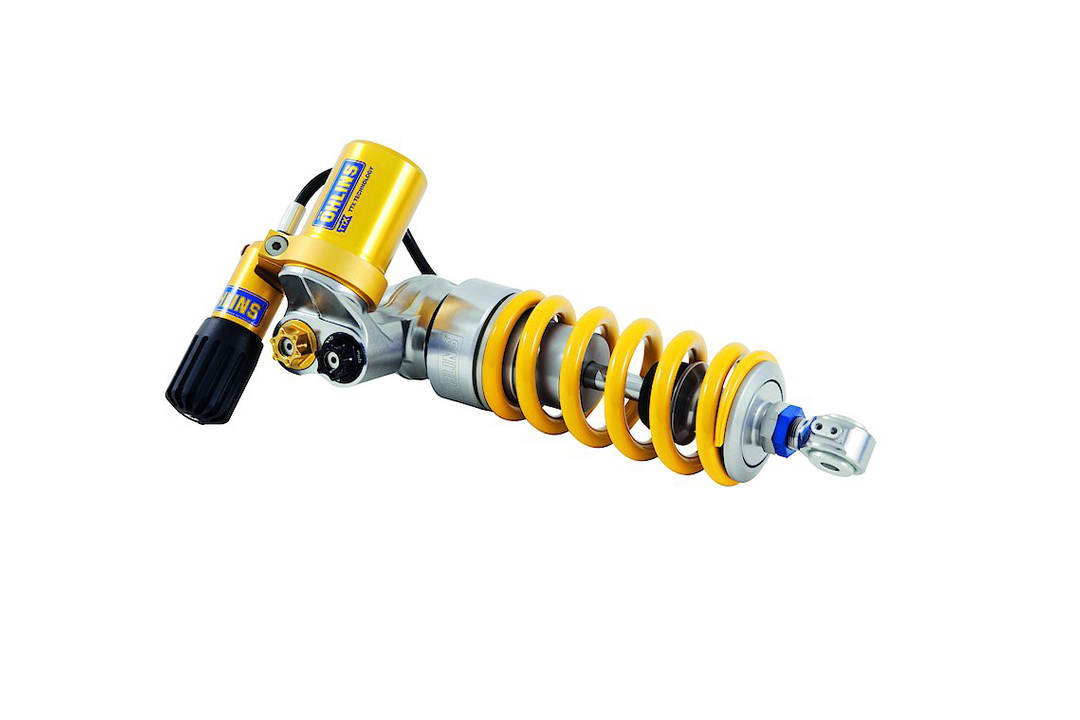

Öhlins shock absorber TTX GP Road & Track DU 468 for Ducati Panigale V4 2018-2022 and Panigale V4 R/S/S Corse/Speciale 2018-2022
€1,745.85 gross
Article number:
OE-DU-468
Product details
Öhlins TTX GP shock absorber Road & Track DU 468, rear monoshock, gas-pressure twin-tube damper with externa, fixed reservoir; adjustable rebound damping, adjustable compression damping damping; integrated hydraulic spring preload adjuster; piston diameter 36 mm; with ABE for DucatiPanigale V4, from model year 2018-
Panigale V4 S, from model year 2018- (error may appear on display)
Panigale V4 Speciale, model year 2018-2020
ABE in preparation for:
Panigale V4 R, model year 2019-2020
General description
The TTX GP is our new shock absorber for sport motorcycles. It features TTX Twin Tube Technology and is based on the latest Öhlins experience values from MotoGP.The setting of the compression and rebound damping can be improved due to a new needle valve with optimised guide and modified flow restriction behaviour. This enables even more precise setting and absolutely consistent function. As a result, the adjustment range has been further extended and chassis feedback significantly improved.
New features also include a new main piston. This allows for improved traction and more control for the rider. The TTX GP is a further development of the TTX36 shock absorber and therefore has the same advantages, only optimised.
shock absorber length 312 +4/-8mm; Stroke 65mm; Installed spring 01092-29 (Y);
| Manufacturer | Model | Additional designation | Type | Model year | Note | Homologation | Position | ccm |
|---|---|---|---|---|---|---|---|---|
| Ducati | Panigale V4 | S | 1D EURO5 | 2021 - | ABE | rear | 1100 | |
| Ducati | Panigale V4 | 1D EURO5 | 2020 - | ABE | rear | 1100 | ||
| Ducati | Panigale V4 | S | 3D EURO5 | 2022 - | ABE | rear | 1100 | |
| Ducati | Panigale V4 | 3D EURO5 | 2022 - | ABE | rear | 1100 | ||
| Ducati | Panigale V4 | S | 4D EURO5 | 2022 - | ABE | rear | 1100 | |
| Ducati | Panigale V4 | 4D EURO5 | 2022 - | ABE | rear | 1100 | ||
| Ducati | Panigale V4 | DA EURO4 | 2018 - 2021 | ABE | rear | 1100 | ||
| Ducati | Panigale V4 | S | DA EURO4 | 2018 - 2021 | only suitable for track use, error may appear on display | ABE | rear | 1100 |
| Ducati | Panigale V4 | Speciale | DA EURO4 | 2018 - 2020 | ABE | rear | 1100 | |
| Ducati | Panigale V4 | S Corse | DA EURO4 | 2019 - 2020 | For racing only! May cause error warning on display! | rear | 1100 | |
| Ducati | Panigale V4 | R | DA EURO4 | 2019 - 2020 | For V4R model, the shock absorber length must be adjusted to 312mm, the end eye must be unscrewed by 2 full rotation, turns. | ABE in preparation | rear | 998 |
| Ducati | Panigale V4 | S | DB EURO4 | 2018 - 2020 | ABE | rear | 1100 | |
| Ducati | Panigale V4 | Speciale | DB EURO4 | 2018 - 2021 | ABE | rear | 1100 | |
| Ducati | Panigale V4 | DB EURO4 | 2018 - 2020 | ABE | rear | 1100 |
