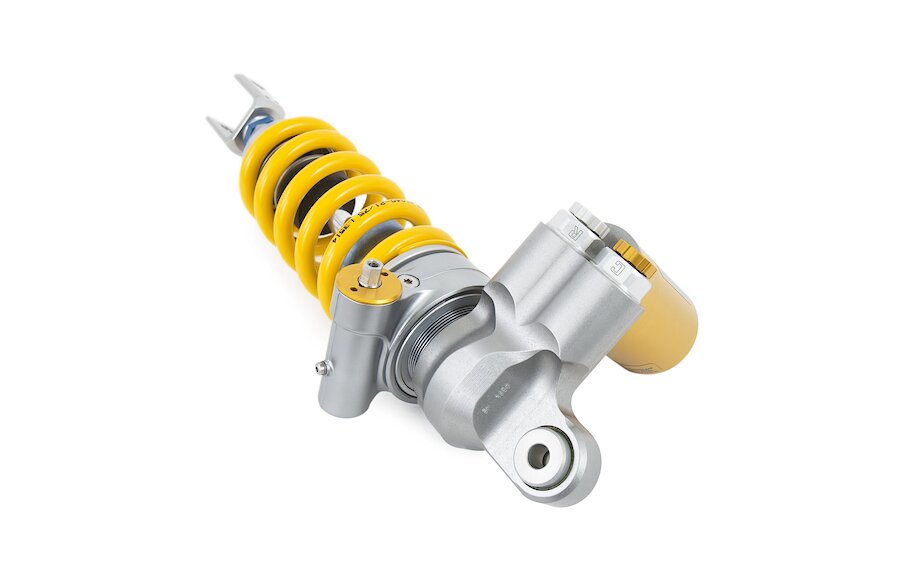

Öhlins shock absorber TTX GP HO 261 for Honda CB 1000 Hornet, 2024-2025
€1,745.85 gross
Article number:
OE-HO-261
Product details

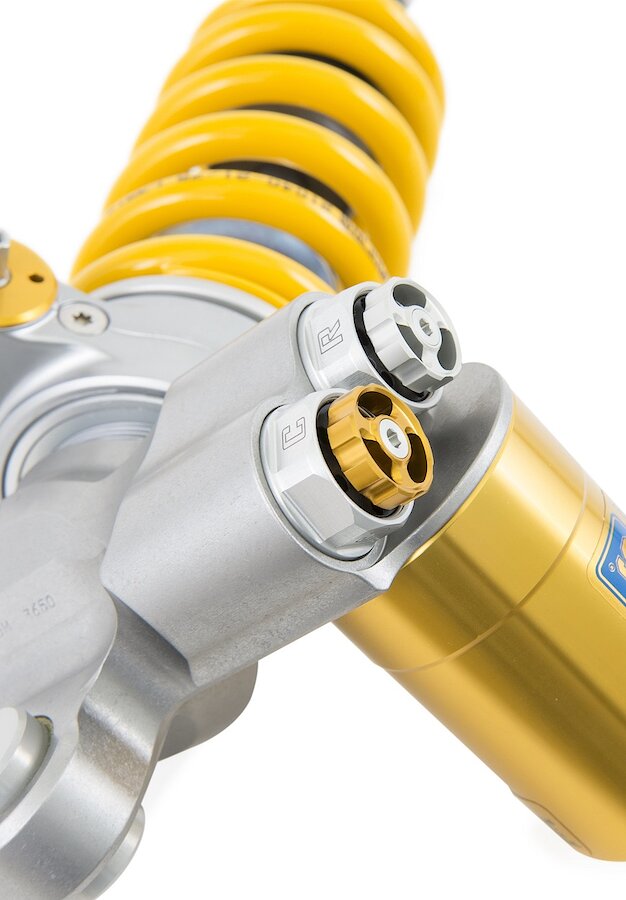

Öhlins TTX GP shock absorber HO 261, monoshock rear, gas-pressure twin-tube damper with externa fixed reservoir; adjustable rebound damping, adjustable compression damping damping; integrated hydraulic spring preload adjuster; piston diameter 36 mm; with ABEfor Honda
CB 1000 Hornet, Type: SC86, Model year: 2024-2025
General description
The TTX GP is our new shock absorber for sports motorcycles. It features TTX Twin Tube Technology and is based on Öhlins' latest experience values from MotoGP.The setting of the compression and rebound damping can be improved due to a new needle valve with optimised guide and modified flow restriction behaviour. This allows for even more precise setting and absolutely constant function. As a result, the adjustment range is further extended, and chassis feedback is once again improved.
The new features also include a new main piston. This enables improved traction and more control for the rider. The TTX GP is a further development of the TTX36 shock absorber and therefore has the same advantages, only optimised.
| Spring rate N/mm: | 85 |
|---|---|
| Stroke in mm: | 60 |
| Length in mm: | 369 |
shock absorber length 324mm, stroke 55mm; rate: 145 N/mm; fitted spring: 21141-56 (spring series: 21141-XX)spring rate 85N/mm
| Manufacturer | Model | Type | Model year | Homologation | ccm |
|---|---|---|---|---|---|
| Honda | CB1000 Hornet | SC86 EURO5+ | 2024 - 2025 | ABE | 1000 |
