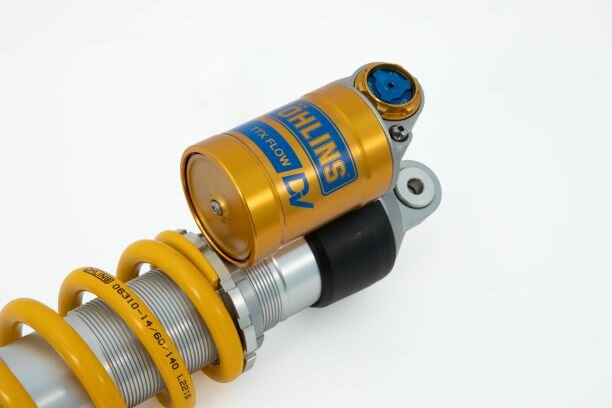

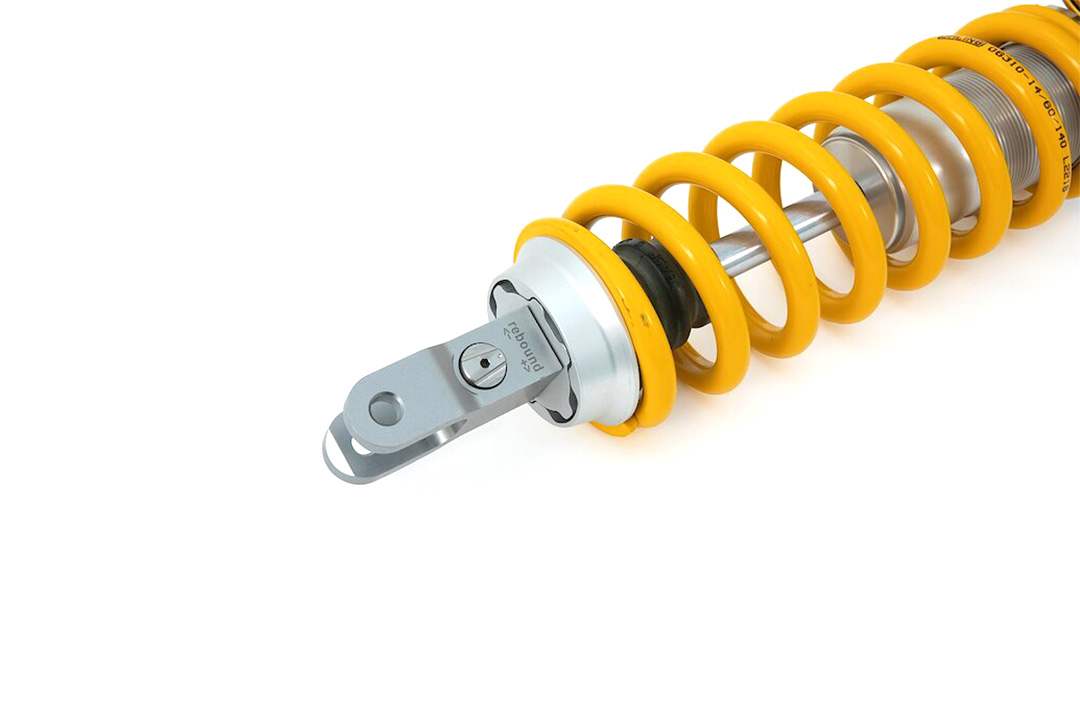

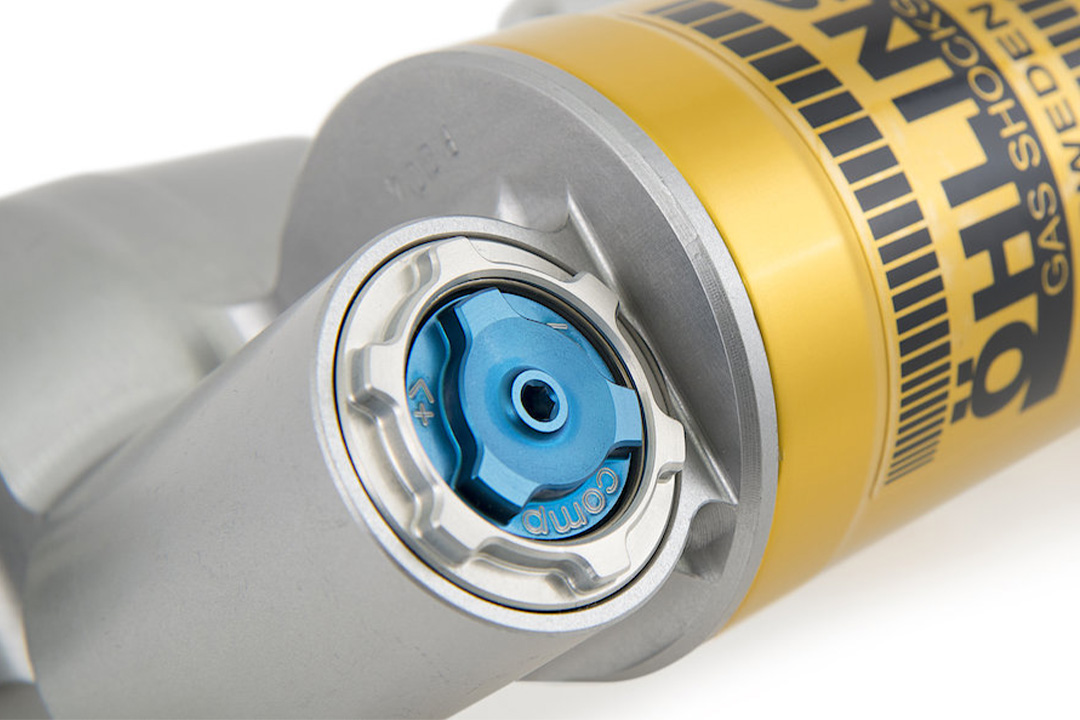

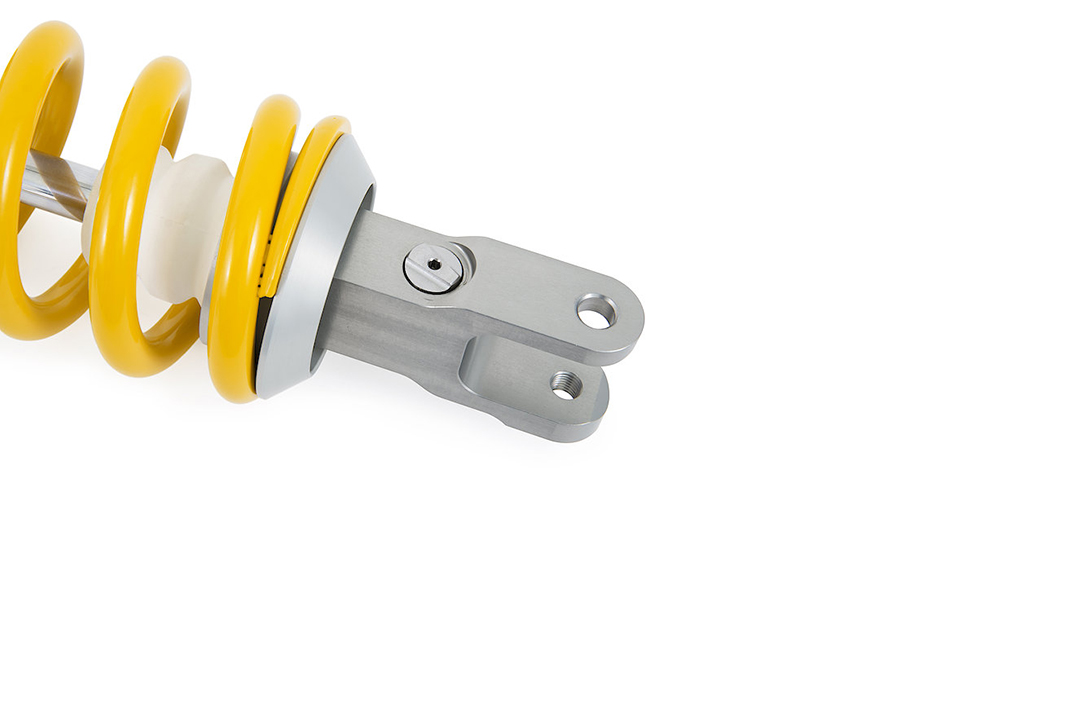

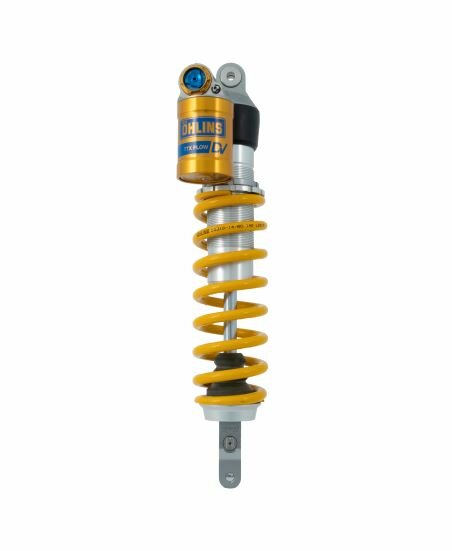

Öhlins shock absorber TTX Flow DV DMX 0304 for GASGAS and Husqvarna models

€1,951.85 gross €1,640.21 net

Article number: OE-DMX-0304

In ca. 20 working days

Product details

Öhlins TTX Flow DV DMX 0304 shock absorber, monoshock rear, gas-pressure twin-tube damper with externa fixed reservoir; adjustable rebound damping TTX Flow, adjustable compression damping damping TTX Flow; piston diameter 46 mm; without street approval for Gas Gas
EC 300, model year 2021-2023
For Husqvarna
FE 450, model year 2020-2023
FE 501, model year 2020-2023
TE 300, model year 2020-2023
Delivery without spring, please order separately.

General description

We are pleased to introduce the TTX Flow DV, a highly efficient high-speed adjuster with a unique design, currently unavailable elsewhere on the market. Our new high-speed adjuster specifically aids at very high stroke velocities, simultaneously controlling the last part of the suspension travel and thus keeping the damper in a higher riding position. Furthermore, significant improvements in traction and comfort have been achieved through the introduction of the new rebound needle and a new piston rod. Additionally, the new compression damping adjuster provides a more comfortable response.

Öhlins MX & Enduro shock absorbers are delivered without springs. The appropriate spring for the respective rider weight must be ordered separately. Information on the spring series and assistance in selecting the correct spring rate can be found in the technical details for the shock absorber and in the installation instructions.
Adjustment options

Low-speed rebound damping
Low-speed compression damping damping
High-speed compression damping damping
spring preload

Scope of delivery

TTX Flow DV shock absorber
Operating and installation instructions

shock absorber length 477 mm; matching spring: OE-06310 series;
