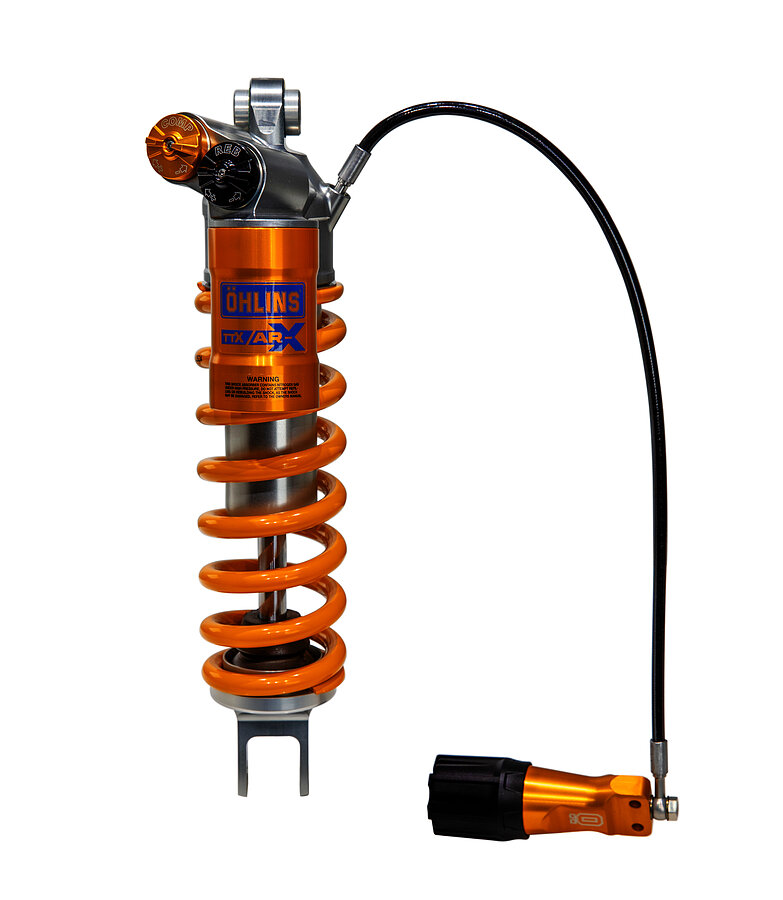

Öhlins shock absorber TTX AR-X 40, ARX 0103 for Yamaha XT700 Ténéré, 2025-

€1,749.97 gross €1,470.56 net

Article number: OE-ARX-0103

In ca. 10 working days

Product details

Öhlins TTX AR-X 40 Adventure shock absorber ARX 0103, single shock rear, gas pressure damper with fixed, externa reservoir ("Piggy Back"); adjustable rebound damping, adjustable compression damping damping; integrated hydraulic spring preload adjuster; adjustable length; twin-tube damper, piston diameter 40 mm; with type approval (TTG) for Yamaha XT700 Ténéré, Type: DM 20 Model year: 2025- XT700 Ténéré, Type: DM 21 Model year: 2025-

General description

We present the next generation of twin-tube dampers for adventure motorcycles, offering significantly more comfort on the street and greater off-road performance. The new Öhlins TTX AR-X 40 shock absorber has also been developed for the higher loads and other operating requirements of street and Hyper Naked Bikes.
The TTX AR-X 40 features a 40 mm piston (diameter), equipped with a high-speed blow-off valve that generates comfort and control across a wide range of damping forces. The new damper is equipped with an integrated hydraulic preload unit, which maintains the preferred ride height under increased load and allows the rider to increase the preload on the damper and change the seat height.

shock absorber length 385mm; Stroke 105mm; Rate: 70N/mm, Installed spring: 00580-19 (Y)
