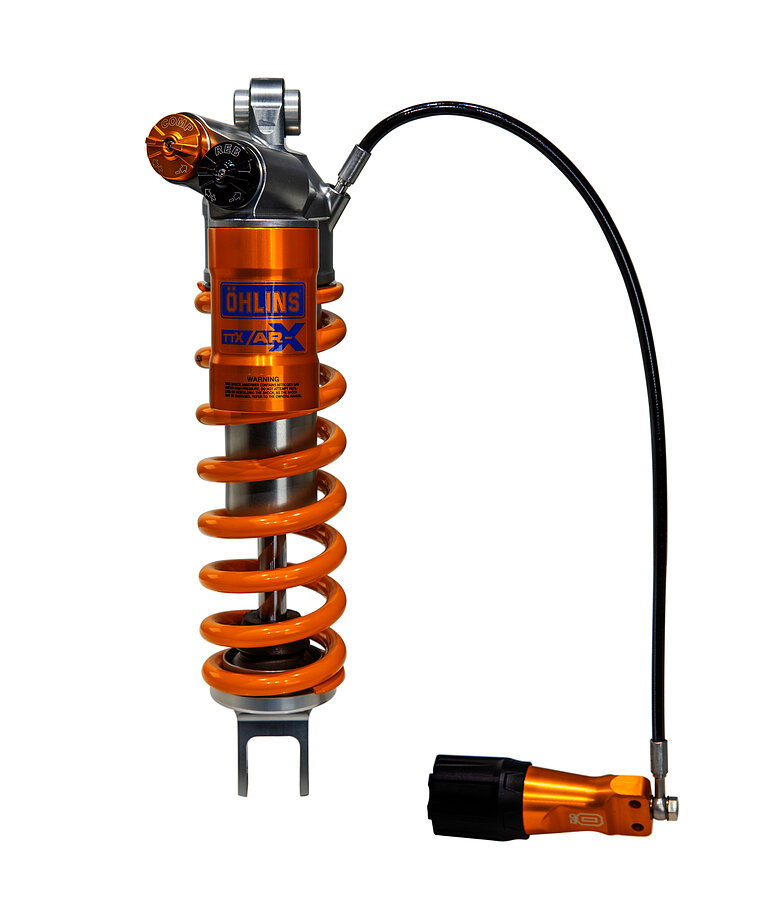

Öhlins shock absorber TTX AR-X 40, ARX 0101 for Yamaha XT700 Ténéré / Rally Edition, 2019-2024
€1,749.97 gross
Article number:
OE-ARX-0102
Product details
Öhlins TTX AR-X 40 Adventure shock absorber ARX 0102, monoshock rear, gas-pressure damper with fixed, externa reservoir ("Piggy Back"); adjustable rebound damping, adjustable compression damping damping; integrated hydraulic spring preload adjuster; adjustable length; twin-tube damper, piston diameter 40 mm; with part type approval (TTG) for YamahaXT700 Ténéré Extreme, Type: DM Model year: 2022-2024
XT700 Ténéré World Raid, Type: DM21 Model year: 2023-2024
General description
We present the next generation of twin-tube dampers for adventure motorcycles, offering significantly more comfort on the street and enhanced off-road performance. The new Öhlins TTX AR-X 40 shock absorber has also been developed for the higher loads and other operating requirements of street and hyper naked bikes.The TTX AR-X 40 features a 40 mm piston (diameter) equipped with a high-speed blow-off valve, which generates comfort and control across a wide spectrum of damping forces. The new damper is equipped with an integrated hydraulic preload unit that maintains the preferred ride height under increased load and allows the rider to increase the preload on the damper and change the seat height.
shock absorber length 385mm; stroke 105mm; spring rate: 75N/mm, installed spring: 00580-21 (Y)
| Manufacturer | Model | Additional designation | Type | Model year | Variant/Version | Homologation | ccm |
|---|---|---|---|---|---|---|---|
| Yamaha | Tenere 700 | World Raid | DM11 EURO5 | 2022 - | A / 07 | TTG | 700 |
| Yamaha | Tenere 700 | World Raid | DM15 EURO5 | 2023 - | TTG | 700 | |
| Yamaha | Tenere 700 | Extreme Edition | DM15 EURO5 | 2023 - | TTG | 700 | |
| Yamaha | Tenere 700 | World Raid | DM16 EURO5 | 2023 - | TTG | 700 | |
| Yamaha | Tenere 700 | Extreme Edition | DM16 EURO5 | 2023 - | TTG | 700 |
