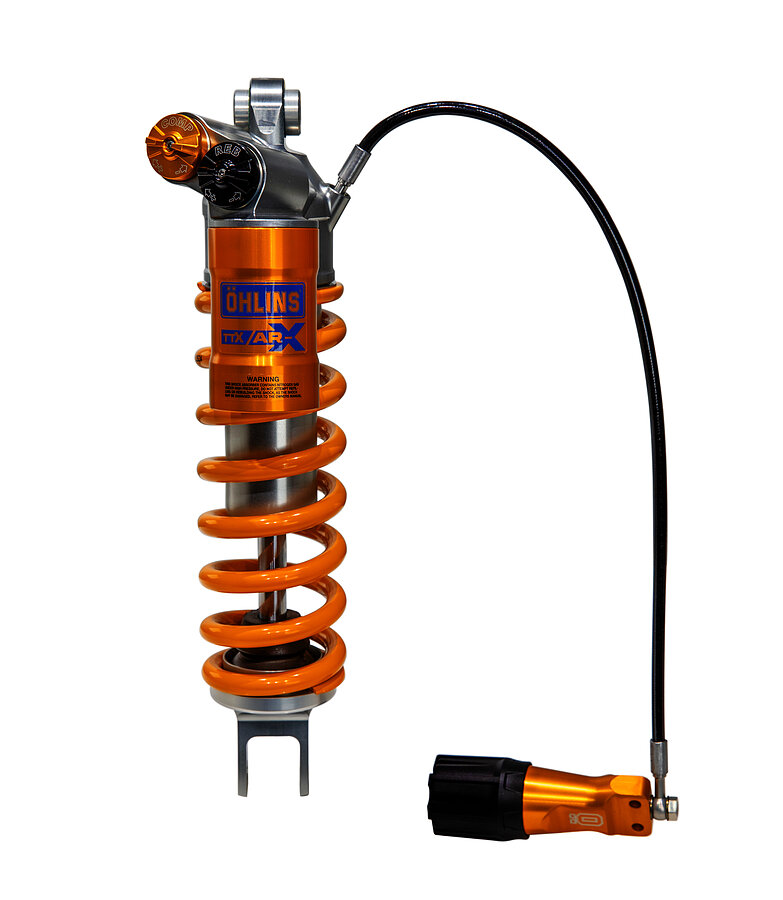

Öhlins shock absorber TTX AR-X 40, ARX 0101 for Yamaha XT700 Ténéré / Rally Edition, 2019-2024
€1,749.97 gross
Article number:
OE-ARX-0101
Product Details
Öhlins TTX AR-X 40 Adventure shock absorber ARX 0101, monoshock rear, gas-pressure damper with fixed, externa reservoir ("Piggy Back"); adjustable rebound damping, adjustable compression damping damping; integrated hydraulic spring preload adjuster; adjustable length; twin-tube damper, piston diameter 40 mm; with type approval (TTG) for Yamaha XT700 Ténéré, Type: DM07/DM08/DM11/DM15/DM16 Model Year: 2019-2024 XT700 Ténéré Rally Edition, Model Year: 2023-2024General Description
We present the next generation of twin-tube dampers for adventure motorcycles, offering significantly more comfort on the street and more performance off-road. The new Öhlins TTX AR-X 40 shock absorber has also been developed for the higher loads and other operating requirements of street and Hyper Naked bikes. The TTX AR-X 40 features a 40 mm piston (diameter), equipped with a high-speed blow-off valve that generates comfort and control over a wide range of damping forces. The new damper is equipped with an integrated hydraulic preload unit, which maintains the preferred ride height under increased load and allows the rider to increase the preload on the damper and change the seat height.
shock absorber length 371mm; Stroke 96mm; Rate: 70N/mm, Installed spring: 00698-19 (Y)
| Manufacturer | Model | Type | Model Year | Homologation | ccm |
|---|---|---|---|---|---|
| Yamaha | Tenere 700 | DM07 EURO4 | 2019 - 2020 | TTG | 700 |
| Yamaha | Tenere 700 | DM08 EURO4 | 2019 - 2020 | TTG | 700 |
| Yamaha | Tenere 700 | DM11 EURO5 | 2021 - 2022 | TTG | 700 |
| Yamaha | Tenere 700 | DM15 EURO5 | 2023 - 2024 | TTG | 700 |
| Yamaha | Tenere 700 | DM16 EURO5 | 2023 - 2024 | TTG | 700 |
