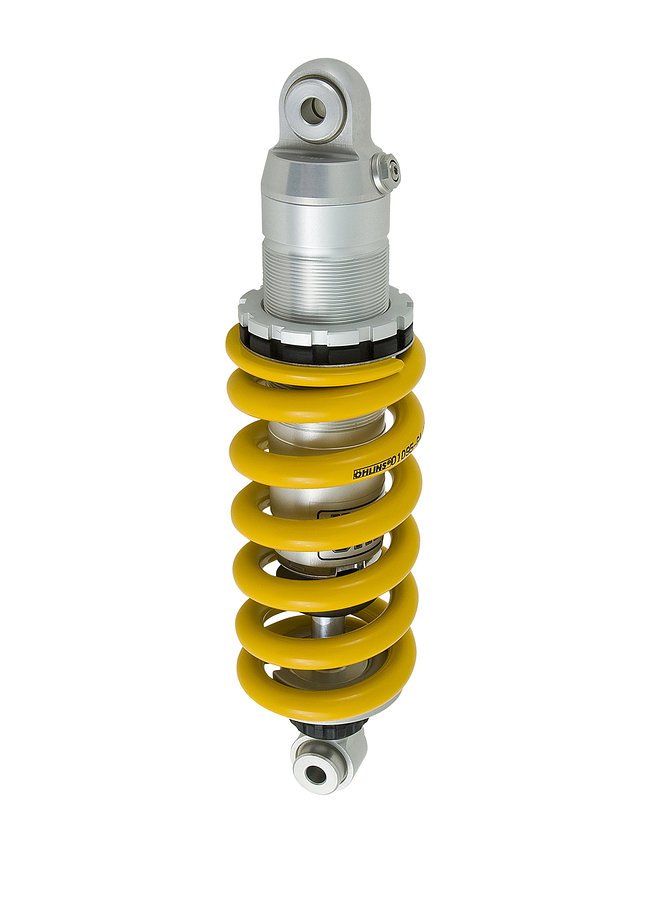

Öhlins shock absorber STX 46 Street YA 570 for Yamaha MT-09 from model year 2021-
Product Details
Öhlins STX 46 Street YA 570 shock absorber, rear monoshock, gas-pressure damper with reservoir integrated in the housing, adjustable rebound damping with adjustment wheel on the end eye, piston diameter 46 mm; with ABE for Yamaha MT09 (SP) Type: RN69 / RN82 from model year 2021-General Description
The proven STX 46 Street shock absorber is the perfect upgrade for sporty streetn motorcycles. This single-tube gas-pressure shock absorber with a dividing piston and internal or externa reservoir features a 46 mm main piston diameter. Depending on the version, the STX46 is equipped with mechanical or hydraulic spring preload adjustment, as well as adjustable rebound and compression damping damping.Features STX 46 Street YA 570:
- piston diameter: 46 mm
- Gas-pressure monotube damper with reservoir integrated in the housing
- Adjustable rebound damping on the monotube damper. Adjustment wheel above the end eye
- Length: 326 mm
- Stroke: 65 mm
- Spring rate N/mm: 90 N/mm
shock absorber length 326 mm; Installed spring 01093-29;
| Manufacturer | Model | Additional designation | Type | Model year | Homologation | Position | ccm |
|---|---|---|---|---|---|---|---|
| Yamaha | MT09 | RN69 EURO5 | 2021 - | ABE | rear | 900 | |
| Yamaha | MT09 | SP | RN69 EURO5 | 2021 - | ABE | rear | 900 |
| Yamaha | MT09 | RN82 EURO5 | 2022 - | ABE | rear | 900 |
