Öhlins shock absorber STX 46 Street YA 569 for Yamaha MT09 (SP) Model Year 2021-

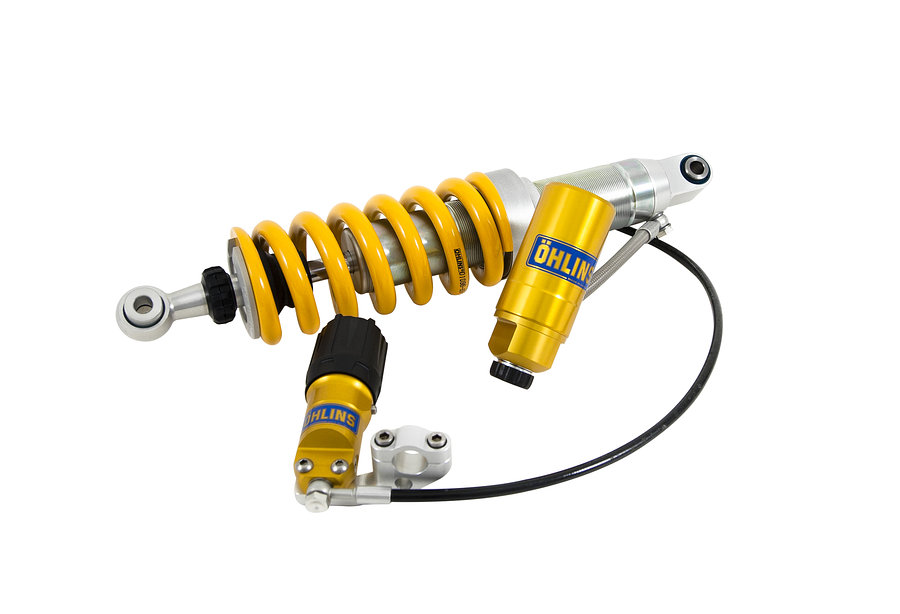

Sample photo - item may vary

€1,436.85 gross €1,207.44 net

Article number: OE-YA-569

In ca. 20 working days

Product details

Öhlins STX 46 Street YA 569 shock absorber, rear monoshock, gas-pressure damper with externa reservoir and high-pressure hose connection, adjustable rebound damping with adjuster wheel at the end eye, adjustable high- and low-speed compression damping damping at the reservoir, externa hydraulic spring preload with hose connection; piston diameter 46 mm; with ABE for Yamaha MT09 (SP) Type: RN69 / RN82 from model year 2021-

General description

The proven STX 46 Street shock absorber is the perfect upgrade for sporty street motorcycles. This single-tube gas-pressure shock absorber with dividing piston and internal or externa reservoir features a main piston with a 46 mm diameter. Depending on the version, the STX46 is equipped with mechanical or hydraulic spring preload adjustment, as well as adjustable rebound and compression damping damping.

Features STX 46 Street YA 569:
- piston diameter: 46 mm
- Gas-pressure damper with externa reservoir and high-pressure hose connection
- Adjustable rebound damping on the single-tube damper. Adjuster wheel above the end eye
- Adjustable compression damping damping. Adjuster wheel or Allen key at the reservoir.
- External, hydraulic spring preload adjuster with hose connection
- Length: 326 mm
- Stroke: 65 mm
- Rate N/mm: 90 N/mm
