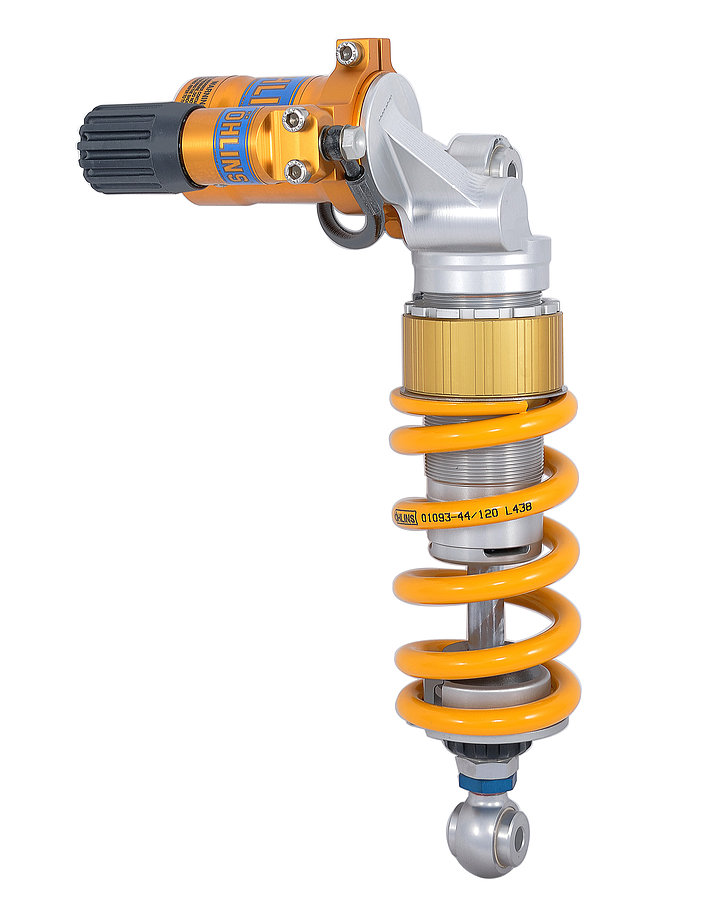

Öhlins shock absorber STX 46 Street YA 343 for Yamaha YZF-R1 RN12 model year 2003-2006
€1,642.85 gross
Article number:
OE-YA-343
Product details
Öhlins shock absorber STX 46 Street YA 343, mono-shock rear, gas pressure damper with fixed, externa reservoir ('Piggy Back'), adjustable rebound damping with adjuster wheel at the end eye, adjustable high- and low-speed compression damping damping at the reservoir, adjustable length, externa hydraulic spring preload; piston diameter 46 mm; with ABE for Yamaha YZF-R1, type RN12, model year 2003-2006General description
The proven STX 46 Street shock absorber is the perfect upgrade for sporty streetnmotorcycles. This monotube gas pressure shock absorber with a dividing piston and internal or externa reservoir features a main piston with a 46 mm diameter. Depending on the version, the STX46 is equipped with mechanical or hydraulic spring preload adjustment, as well as adjustable rebound and compression damping damping.Features STX 46 Street YA 343:
- piston diameter: 46 mm
- Gas pressure damper with fixed, externa reservoir
- Adjustable rebound damping on the monotube damper. Adjuster wheel above the end eye
- High- and low-speed compression damping adjustment on the S46 shock absorber. Hexagonal and slot screw adjusters on the reservoir
- Adjustable length
- External, hydraulic spring preload adjuster with hose connection
- Position: rear
- Length: 300 +6/-0 mm
- Stroke: 64.5 mm
- Rate N/mm: 95 N/mm
shock absorber length 325 +6/-0 mm; Installed spring 01093-29;
| Manufacturer | Model | Type | Model year | Homologation | ccm |
|---|---|---|---|---|---|
| Yamaha | YZF-R1 | RN12 | 2003 - 2006 | ABE | 1000 |
