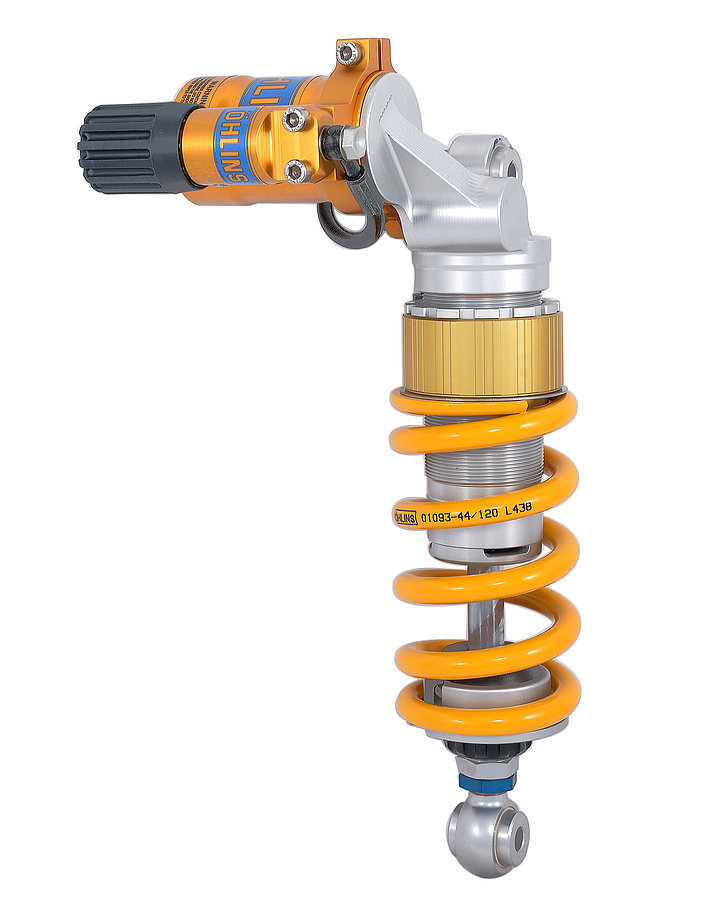

Öhlins shock absorber STX 46 Street SU 503 for Suzuki GSX-R1000 2004-2006
€1,745.85 gross
Article number:
OE-SU-503
Product Details
Öhlins STX 46 Street SU 503 shock absorber, mono-shock for rear, gas-pressure damper with fixed, externa reservoir ("Piggy Back"), adjustable rebound damping with adjustment wheel on the end eye, adjustable high and low speed compression damping damping on the reservoir, adjustable length, externa hydraulic spring preload; piston diameter 46 mm; with ABE for Suzuki GSX-R1000, model year 2004-2006.General Description
The proven STX 46 Street shock absorber is the perfect upgrade for sport street motorcycles. This single-tube gas pressure shock absorber with a dividing piston and internal or externa reservoir features a main piston with a 46 mm diameter. Depending on the version, the STX46 is equipped with mechanical or hydraulic spring preload adjustment, as well as adjustable rebound and compression damping damping.Features STX 46 Street SU 503:
- piston diameter: 46 mm
- Gas-pressure damper with fixed, externa reservoir
- Adjustable rebound damping on the single-tube damper. Adjustment wheel above the end eye
- High and low speed compression damping adjustment for the S46 shock absorber. Hex and slot screw adjusters on the reservoir
- Adjustable length
- External, hydraulic spring preload adjuster with hose connection
- Position: rear
- Length: 330 +10/-0 mm
- Stroke: 68 mm
- Rate N/mm: 115 N/mm
shock absorber length 325 +6/-0 mm; Installed spring 01093-29;
| Manufacturer | Model | Type | Model Year | Homologation | ccm |
|---|---|---|---|---|---|
| Suzuki | GSX-R1000 | WVB6 | 2004 - 2006 | ABE | 1000 |
