Öhlins shock absorber STX 46 Blackline YA 580 for Yamaha MT-09 from model year 2021-
€1,493.50 gross
Article number:
OE-YA-580
Product details

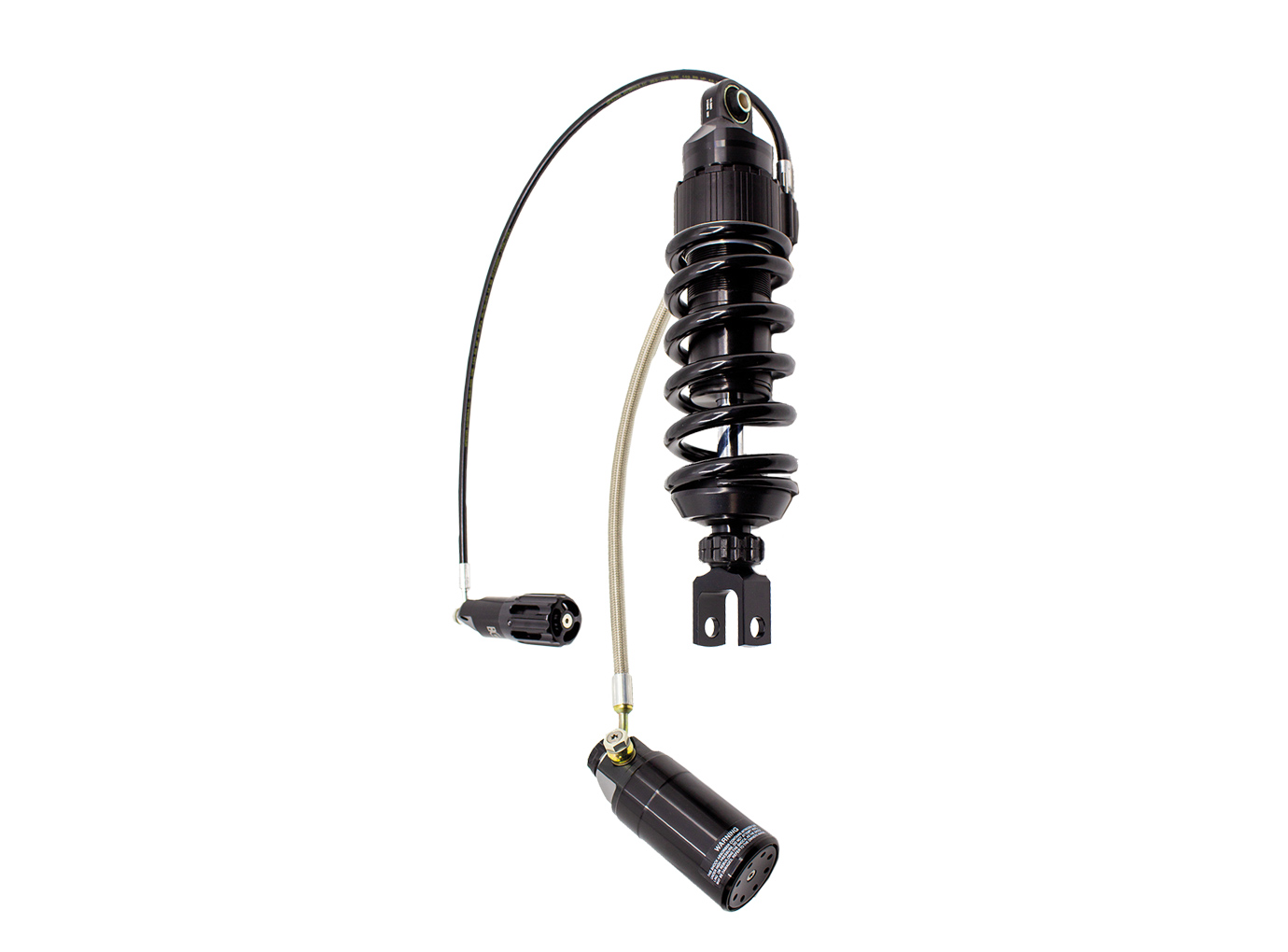

Öhlins STX 46 Blackline YA 580 shock absorber, monoshock rear, gas-pressure damper with externa reservoir and high-pressure hose connection, adjustable rebound damping with adjustment wheel at the end eye, adjustable compression damping damping, externa and hydraulic spring preload adjuster, piston diameter 46 mm; with ABE for Yamaha MT09, Type RN69/RN82, from model year 2021-General description
The proven STX 46 Street shock absorber is the perfect upgrade for sporty street motorcycles. This single-tube gas-pressure shock absorber with dividing piston and internal or externa reservoir features a main piston with a 46 mm diameter. Depending on the version, the STX46 is equipped with mechanical or hydraulic spring preload adjustment, as well as adjustable rebound and compression damping damping.Features STX 46 Blackline YA 580:
- piston diameter: 46 mm
- Gas-pressure damper with externa reservoir and high-pressure hose connection
- Adjustable rebound damping on the single-tube damper. Adjustment wheel above the end eye
- Adjustable compression damping damping. Adjustment wheel or Allen key at the reservoir
- Length: 326.5 mm
- Stroke: 65.5 mm
- Spring rate N/mm: 90 N/mm
shock absorber length 326.5 mm; Installed spring 21102-29 (B)
| Manufacturer | Model | Additional designation | Type | Model year | Homologation | Position | ccm |
|---|---|---|---|---|---|---|---|
| Yamaha | MT09 | SP | RN69 EURO5 | 2021 - | ABE | rear | 900 |
| Yamaha | MT09 | RN69 EURO5 | 2021 - | ABE | rear | 900 | |
| Yamaha | MT09 | RN82 EURO5 | 2022 - | ABE | rear | 900 |
