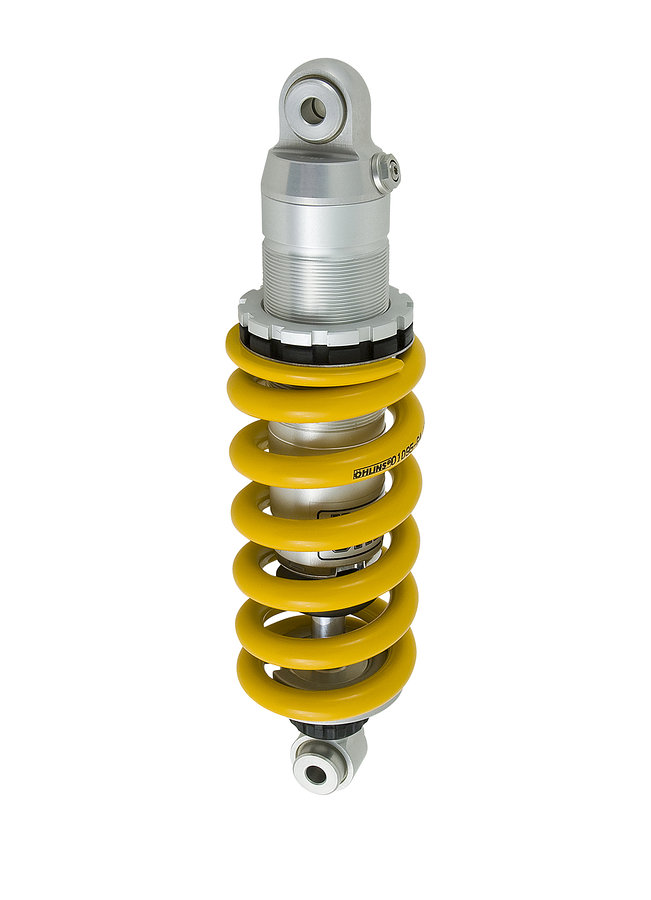

Öhlins shock absorber Street Performance YA 009 for Yamaha FZ 1, FZ 1 Fazer 2005-2016 / FZ 8, FZ 8 Fazer 2010-2016
Product details
Öhlins shock absorber Street Performance YA 009, mono-shock rear, gas-pressure monotube damper with reservoir integrated into the housing, adjustable rebound damping with adjustment wheel at the end eye; piston diameter 46 mm; with ABE according to application range for YamahaFZ 1, FZ 1 Fazer model year 2005-2016
FZ 8, FZ 8 Fazer model year 2010-2016
General description
The proven STX 46 Street shock absorber is the perfect upgrade for sporty street motorbikes. This monotube gas-pressure shock absorber with dividing piston and internal or externa reservoir features a main piston with 46 mm diameter. Depending on the version, the STX46 is equipped with mechanical or hydraulic spring preload adjustment as well as adjustable rebound and compression damping damping.Features:
- piston diameter: 46 mm
- Gas-pressure monotube damper with reservoir integrated into the housing
- Adjustable rebound damping on the monotube damper. Adjustment wheel above the end eye
- Length: 320 mm
- Stroke: 66 mm
- Rate N/mm: 120 N/mm
- For models with and without ABS
For vehicles with and without ABS; shock absorber length 320 mm; stroke 66 mm; installed spring 01095-44 (Y);
| Manufacturer | Model | Type | Model Year | Homologation | Position | ccm |
|---|---|---|---|---|---|---|
| Yamaha | FZ1 | RN16 | 2005 - 2016 | ABE | rear | 1000 |
| Yamaha | FZ1 Fazer | RN16 | 2005 - 2016 | ABE | rear | 1000 |
| Yamaha | FZ8 | RN25 | 2010 - 2016 | ABE | rear | 800 |
| Yamaha | FZ8 Fazer | RN25 | 2010 - 2016 | ABE | rear | 800 |
