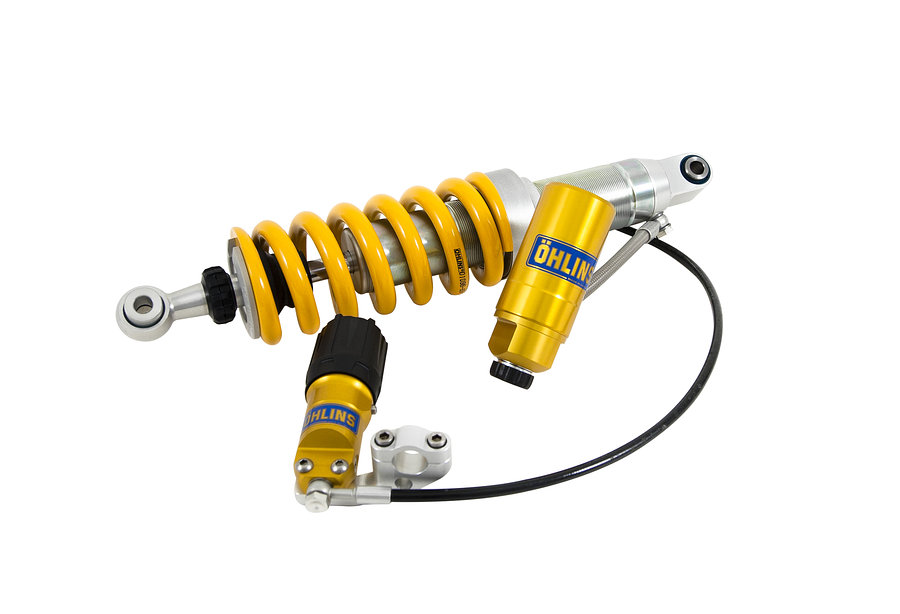

Öhlins shock absorber Road & Track YA 535 for Yamaha MT-09 2014- / XSR 900 2015- / Tracer 900 2015-2017
€1,436.85 gross
Article number:
OE-YA-535
Product details
Öhlins Road & Track YA 535 shock absorber, mono shock rear, gas pressure single-tube damper with externa hose-mounted reservoir; adjustable rebound damping, adjustable compression damping damping; hydraulic hose-mounted spring preload; piston diameter 46 mm; with ABE according to the application range for YamahaMT-09 (Tracer), type RN29 model year 2014-2016 / type RN43 model year 2016-2020
XSR 900, model year 2015-2021
Tracer 900, type RN29 model year 2015-2016 / type RN43 model year 2017
General description
The proven STX 46 Street shock absorber is the perfect upgrade for sporty street motorcycles. This single-tube gas pressure shock absorber with a dividing piston and externa reservoir features a main piston with a 46 mm diameter.Features:
- piston diameter: 46 mm
- Gas pressure damper with externa reservoir and high-pressure hose connection.
- Adjustable rebound damping on the single-tube damper. Adjustment wheel above the end eye.
- Adjustable compression damping damping. Adjustment wheel or Allen key on the reservoir.
- External, hydraulic spring preload adjuster with hose connection.
- Length: 329 mm
- Stroke: 65 mm
- Rate N/mm: 95 N/mm
- spring: 01092-31
- spring series: 01092
shock absorber length 329 mm; stroke 65 mm; installed spring 01092-31 (Y);
| Manufacturer | Model | Type | Model year | Homologation | Position | ccm |
|---|---|---|---|---|---|---|
| Yamaha | MT09 | RN29 | 2014 - 2016 | ABE | rear | 900 |
| Yamaha | MT09 | RN43 EURO4 | 2016 - 2020 | ABE | rear | 900 |
| Yamaha | MT09 Tracer | RN29 | 2015 - 2016 | ABE | rear | 900 |
| Yamaha | MT09 Tracer | RN43 EURO4 | 2017 - 2020 | ABE | rear | 900 |
| Yamaha | Tracer 900 | RN29 | 2015 - 2017 | ABE | rear | 900 |
| Yamaha | XSR900 | RN43 EURO4 | 2015 - 2021 | ABE | rear | 900 |
