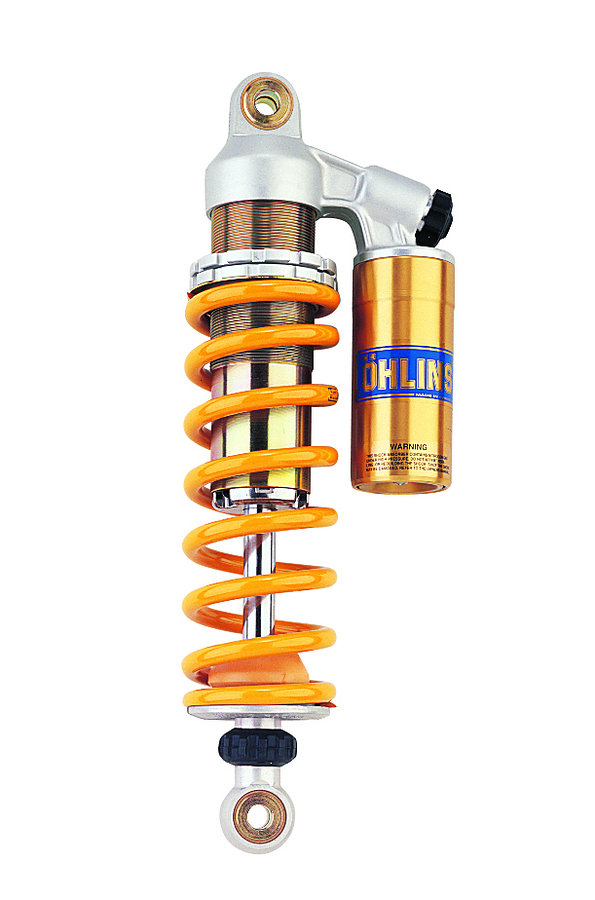

Öhlins shock absorber Road & Track DU 509 for Ducati Scrambler 800 Desert Sled 2016-2022
€1,127.86 gross
Article number:
OE-DU-509
Product Details
Öhlins shock absorber Road & Track DU 509, mono rear shock, gas pressure shock with fixed external reservoir ("Piggy Back"); adjustable rebound damping with adjustment wheel above the end eye, adjustable compression damping at the reservoir; piston diameter 46 mm; with Vehicle Type Approval according to range of use for Ducati Scrambler 800 Desert Sled, model year 2016-2022Description
Based on your bike’s performance, its price and available mounting space we have designed a shockthat we think suits it, both when it comes to price and performance.
We start by choosing a type which we tailor-make for your specific bike. The basic setup, the design of the
shim stacks and the calibration of the adjusters, is tested both on road and track. They are the results of true tests with your bike and no guesswork!
Öhlins manufactures more than 300 different shock absorber models, each model is tailormade for one specific bike. The concept of all Öhlins products is not a secret, it is precision. Precision provides superior control of the damping force and the key to our success.
shock absorber length 335 mm; spring rate 100 N/mm; Stroke 81 mm; Fitted spring 01096-34 (Y);
| Manufacturer | Model | Additional designation | Type | Model year | Homologation | Position | ccm |
|---|---|---|---|---|---|---|---|
| Ducati | Scrambler 800 | Desert Sled | KB EURO4 | 2016 - 2020 | ABE | rear | 800 |
| Ducati | Scrambler 800 | Desert Sled | KB EURO4 | 2017 - 2020 | ABE | rear | 800 |
| Ducati | Scrambler 800 | Desert Sled | KE EURO4 | 2021 - 2022 | ABE | rear | 800 |
