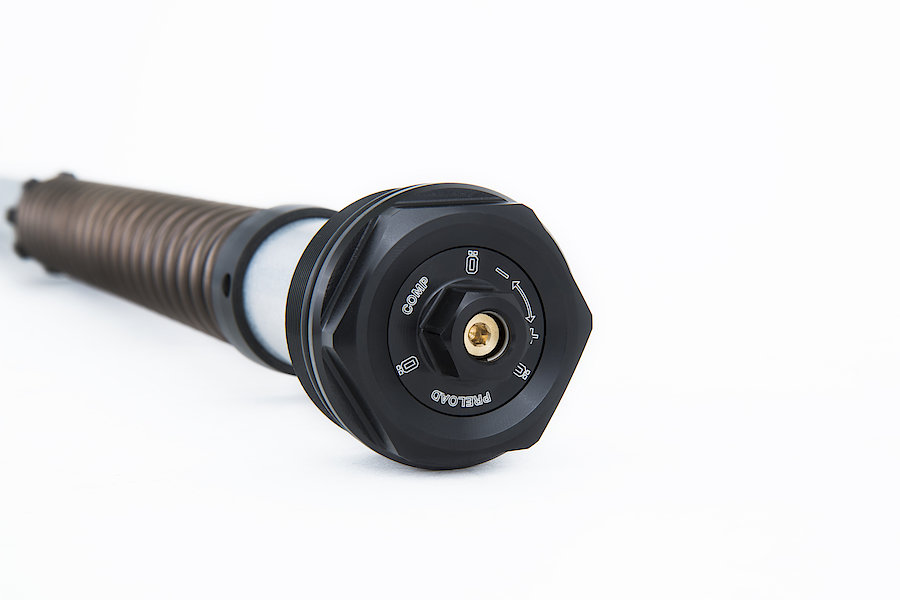

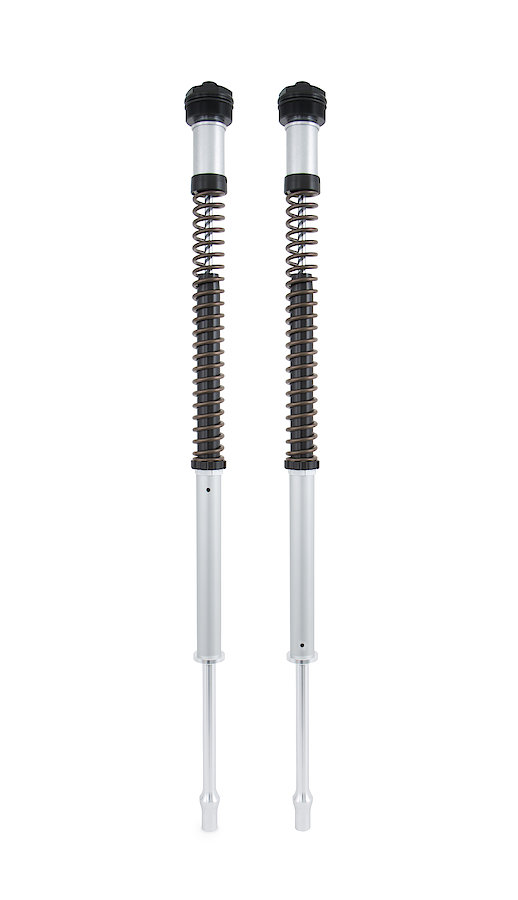

Öhlins Cartridge NIX22 FKS 209 for Kawasaki ER-6 N/F 2012-2016 / Ninja 650 2017- / Z650 2017-
€818.85 gross
Article number:
OE-FKS-209
Product details
Öhlins 22mm Cartridge Kit Road & Track, spring preload adjustable on both sides, one fork leg with compression dampingndamping adjustable, one fork leg with rebound damping adjustable; with streetn approval for KawasakiER-6 N/F, model year 2012-2016
Z 650, model year 2017-2020
Ninja 650 (EX650), model year 2017-2020
Supplied without springn, please order separately
General description
Öhlins Cartridge Kits are based on years of experience in racing. The cartridge kits deliver significantly improved performance and stable damping characteristics paired with a high degree of riding comfort. With the NIX22 Cartridge Kit, this technology is now also available for motorcycles with conventional telescopic forks.Each Öhlins Cartridge Kit is developed and tested specifically for a vehicle model. Together with the proven design for cartridge kits, which separates rebound and compression dampingndamping in the left and right fork tube, it enables precise function and ensures optimal riding stability. All setting regarding damping and spring preload are made at the upper top cap.
The cartridge system is intended for installation in the standard fork and is supplied without springn. fork springs must be ordered separately - please note our recommendation for the spring rate depending on rider weight.
Technical data:
- Position: Front
- Air gap mm: 130 mm
- Packing unit: Pair
| fork filter: | Cartridge |
|---|
- Oil recommendation OE-01309-01

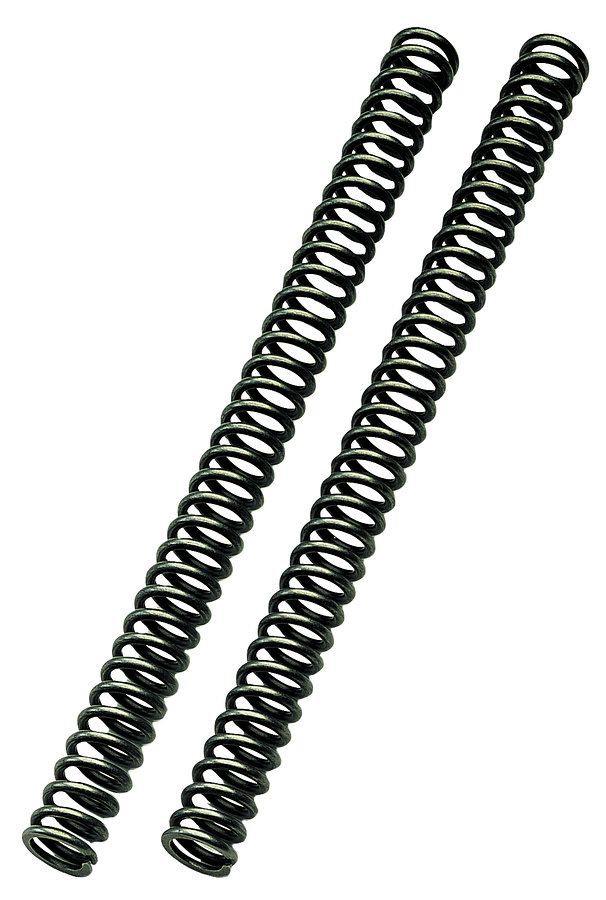

- spring series: OE-08429
- spring series: OE-08429
Netto Fahrergewicht: 105-110 kg
OE-08429-10
€169.96
Netto Fahrergewicht: 40 bis 50 kg
OE-08429-85
€169.96
Netto Fahrergewicht: 60 bis 70 kg
OE-08429-90
€169.96
Netto Fahrergewicht: 80 bis 100 kg
OE-08429-95
€169.96
| Manufacturer | Model | Type | Model Year | Homologation | ccm |
|---|---|---|---|---|---|
| Kawasaki | ER6f | EX650E | 2012 - 2016 | Parts certificate | 650 |
| Kawasaki | ER6n | ER650E | 2012 - 2016 | ABE | 650 |
| Kawasaki | Ninja 650 | EX650K EURO4 | 2017 - 2020 | ABE | 650 |
| Kawasaki | Z650 | ER650H EURO4 | 2017 - 2020 | ABE | 650 |
| Kawasaki | Z650 | ER650HA2 EURO4 | 2017 - 2020 | ABE | 650 |
