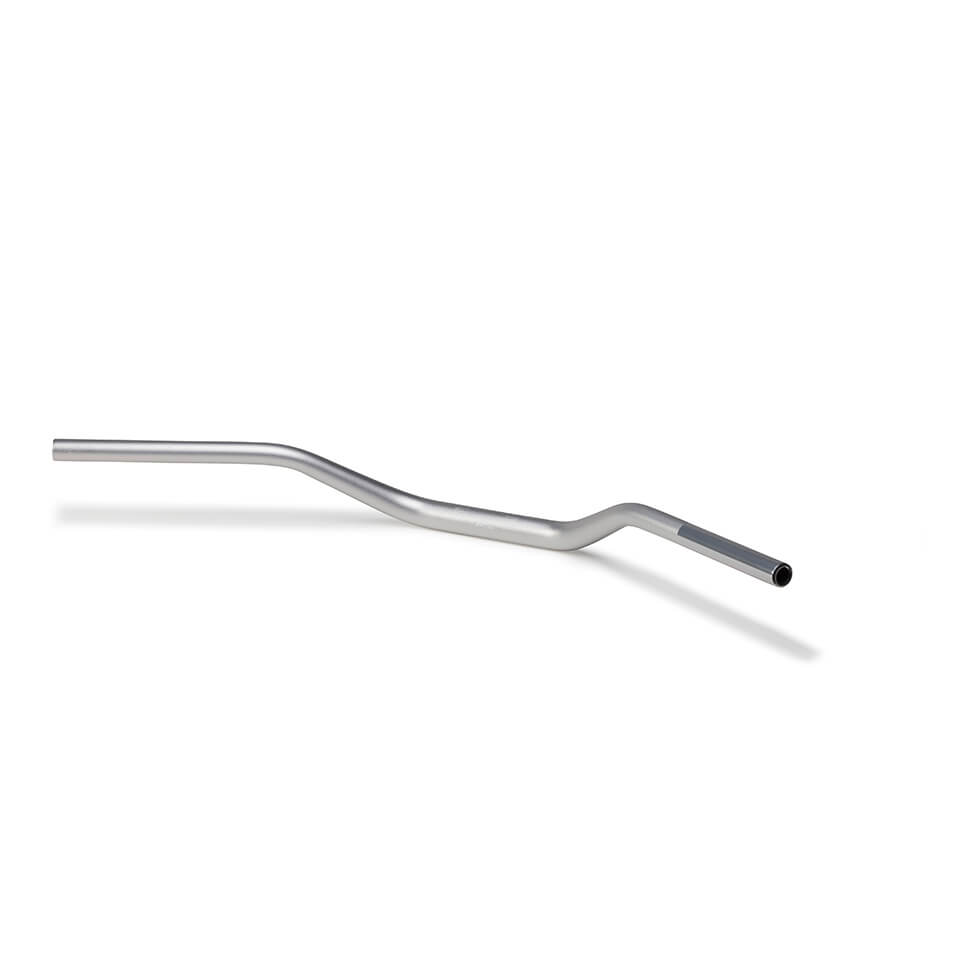

LSL X-Bar Aluminium-handlebar Tour Bar XB3, 1 1/8 inch, silver

LSL X-Bar Aluminium-handlebar Tour Bar XB3, 1 1/8 inch, silver
LSL X-Bar Aluminium-handlebar Tour Bar XB3, 1 1/8 inch, silver
LSL X-Bar Aluminium-handlebar Tour Bar XB3, 1 1/8 inch, silver
LSL X-Bar Aluminium-handlebar Tour Bar XB3, 1 1/8 inch, silver

€89.95 gross

Prices incl. VAT plus shipping costs

Article number: LSL-128AXB3SI
Immediately available

Product details

LSL X-Bar Aluminium-handlebar Tour Bar XB3, 1 1/8 inch 28.6mm diameter, silver colour,
Width 780mm, Height 82mm, Depth 202mm, Wall thickness 4.5/4mm, Clamping area 130mm, Grip tube length 210mm

General description

LSL stands for excellent handlebar quality.
This is due to the company's in-house selection of materials and material treatment, as well as the manufacturing quality of the handlebar, which has been optimised over decades.
The X-Bar-handlebar impress with double bending stiffness compared to standard handlebars.
The basis for this extraordinary stability of the handlebar is the strong diameter in the clamping area and the uniform, conical transition to the grip area.
The handlebar flexes less and offers more reserves under extreme loads.

The diameter of the handlebar is 28.6mm in the clamping area and tapers to 22.2 mm towards the grip tube.
The wall thickness at the handlebar ends is 4 mm (inner Ø 14mm). The surface is matt bead-blasted or high-gloss polished and available in up to four anodised colours, depending on the handlebar type.

We also offer a version with carbon fibre sheathing.
As already known in the high-tech bicycle sector, LSL now also offers a variant of the X-Bar-handlebar with genuine carbon fibre sheathing.
Here, the aluminium tube is covered with a carbon fibre sleeve. This sandwich construction achieves a further reduced weight with the same stiffness of the handlebar.
The manufacturing process is absolutely precise work. This is the only way to adhere to the required tolerances of a motorcycle handlebar.
When mounting these handlebar, proceed with great care to ensure that the transparent top layer of the carbon fibre material is not damaged.

The handlebar are supplied without holes for the anti-rotation device of the switch fittings.
To best transfer the position of the holes from the standard handlebars, we recommend, to use an LSL drilling template.

All LSL-handlebar are supplied with ABE.
The range of models is huge and is expanded with new entries every year.
In the ABE, you will find reliably documented which handlebar type fits your motorcycle and is approved.
Generally, the assignments in the ABE are without conditions.
However, there are exceptions.
For example, LSL offers handlebar mounts for many models, with which you can mount, fit, assemble one of the X-Bar-handlebar on a motorcycle with standard 22.2 mm mounting.
Therefore, please check the entry for your motorcycle in the ABE.
Should you not find your vehicle in the ABE, the ABE can be used as accompanying documentation for an individual inspection.

Scope of delivery: 1 piece

Care instructions:
• For all handlebars and their surface variants, only use acid- and alkali-free cleaners!
• Never clean in direct sunlight and do not allow the cleaner to dry.
• Avoid contact with brake fluid, brake cleaner, oil, fuel, polishing pastes with abrasive particles, etc.; immediately absorb any drips with a soft cloth.
• Before application of cleaning agents, test compatibility in an inconspicuous area!
• No guarantee or warranty for improper cleaning and care.
Diameter: 28.6mm
ManufacturerModelAdditional DesignationTypeModel YearVariant/VersionNoteHomologationccm
BMWF700GSE8GS2013 - 2016ABE800
BMWR nineTScrambler1N12 EURO42020 - 2020Spoke wheelABE1200
BMWR nineT1N12 EURO42020 - 2020Spoke wheelABE1200
BMWR nineTUrban G/S1N12 EURO42020 - 2020Cast wheelABE1200
BMWR nineT1N12 EURO42017 - 2020ABE1200
BMWR nineTUrban G/S1N12 EURO42017 - 2019ABE1200
BMWR nineTScrambler1N12 EURO42016 - 2019ABE1200
BMWR nineTPure1N12 EURO42017 - 2019ABE1200
BMWR nineT1N12 EURO42020 - 2020Cast wheelABE1200
BMWR nineTScrambler1N12 EURO42020 - 2020Cast wheelABE1200
BMWR nineTUrban G/S1N12 EURO42020 - 2020Spoke wheelABE1200
BMWR nineTR1ST2014 - 2016ABE1200
BMWR nineTScramblerRN12 EURO52021 - 2023Cast wheelABE1200
BMWR nineTUrban G/SRN12 EURO52021 - 2023Cast wheelABE1200
BMWR nineTPureRN12 EURO52021 - 2023Cast wheelABE1200
BMWR nineTUrban G/SRN12 EURO52021 - 2023Spoke wheelABE1200
BMWR nineTScramblerRN12 EURO52021 - 2023Spoke wheelABE1200
BMWR nineTPureRN12 EURO52021 - 2023Spoke wheelABE1200
BMWR nineTRN12 EURO52021 - 2023ABE1200
BMWR1200GSR122003 - 2012ABE1200
BMWR1200GSR122004 - 2012ABSABE1200
BMWR1200RR1ST2006 - 2014ABE1200
DucatiMultistrada V41A EURO52021 - 2023ABE1160
DucatiMultistrada V4S Sport6A EURO52021 - 2023ABE1160
DucatiScrambler 1100SportKG EURO42018 - 2020ABE1100
DucatiScrambler 1100SpecialKG EURO42018 - 2020ABE1100
DucatiScrambler 1100KG EURO42018 - 2020ABE1100
DucatiScrambler 400 Sixty2KA EURO42016 - 2020ABE400
DucatiScrambler 400 Sixty2KA EURO42016 - 2020ABE400
DucatiScrambler 800Icon3K EURO52021 - 2022ABE803
DucatiScrambler 800Icon3K EURO52021 - 2022ABE803
DucatiScrambler 800Icon4K EURO52021 - 2022ABE803
DucatiScrambler 800Icon4K EURO52021 - 2022ABE803
DucatiScrambler 800Desert Sled5K EURO52020 - 2024ABE800
DucatiScrambler 800Desert Sled6K EURO52021 - 2024A2ABE800
DucatiScrambler 800IconK12015 - 2016ABE803
DucatiScrambler 800K12015 - 2016ABE803
DucatiScrambler 800Desert SledKB EURO42017 - 2021ABE800
DucatiScrambler 800Cafe RacerKC EURO42017 - 2021ABE803
DucatiScrambler 800IconKC EURO42017 - 2021ABE803
DucatiScrambler 800Icon DarkKC EURO42017 - 2021ABE803
DucatiScrambler 800Cafe RacerKD EURO42017 - 2020ABE803
DucatiScrambler 800Icon DarkKD EURO42020 - 2021ABE803
DucatiScrambler 800IconKD EURO42018 - 2020ABE803
DucatiScrambler 800Desert SledKE EURO42017 - 2022ABE800
FanticCaballero 125RallyCA132021 - 2024ABE125
FanticCaballero 125DeluxeCA132021 - 2024ABE125
FanticCaballero 125Flat TrackCA132021 - 2024ABE125
FanticCaballero 125ScramblerCA132021 - 2024ABE125
HondaCB1100SC652013 - 2014ABE1100
HondaCRF1000L Africa TwinSD042016 - 2016ABE1000
HondaCRF1000L Africa TwinDTCSD042016 - 2016ABE1000
HondaCRF1000L Africa TwinDTCSD06 EURO42017 - 2019ABE1000
HondaCRF1000L Africa TwinSD06 EURO42017 - 2019ABE1000
HondaNC750XDCTRC90 EURO42016 - 2020ABE750
HondaNC750XRC90 EURO42017 - 2020ABE750
HondaNT1100DCTSC84 EURO52022 - ABE1084
HondaNT1100SC84 EURO52022 - ABE1084
HondaVFR1200X CrosstourerDTCSC702012 - 2015ABE1200
HondaVFR800X CrossrunnerRC802015 - 2016ABE800
KawasakiER6fEX650E2012 - 2016ABE650
KawasakiVersys 1000LZT00A2012 - 2014ABE1000
KawasakiVersys 1000LZT00B2015 - 2016ABE1000
KawasakiVersys 1000LZT00B2016 - 2016ABE1000
KawasakiVersys 1000LZT00B EURO42017 - 2018ABE1000
KawasakiZ1000ZRT00D2010 - 2013ABE1000
KawasakiZ650RSER650M EURO52022 - 2022ABE650
KawasakiZ650RSER650MA2 EURO52022 - 2022ABE650
KawasakiZ650RSER650R EURO5+2023 - ABE650
KawasakiZ650RSER650RA2 EURO5+2023 - ABE650
KawasakiZ800ZR800A2013 - 2016ABE800
KawasakiZ800e VersionZR800C2013 - 2015ZR800CCDAABE800
KawasakiZ900RSZR900C EURO42018 - 2020ABE900
KTM790 AdventureRKTM 790 Adventure EURO42019 - 2020ABE790
KTM790 AdventureKTM 790 Adventure EURO42019 - 2020ABE790
KTM890 AdventureRKTM R2 ADVENTURE EURO52021 - 2023ABE890
KTM890 AdventureKTM R2 ADVENTURE EURO52020 - 2023ABE890
KTM890 AdventureLKTM R2 ADVENTURE EURO52022 - 2023ABE890
Moto GuzziV100 MandelloMG EURO52022 - 2023ABE1000
Moto GuzziV100 MandelloSMG EURO52023 - ABE1000
Moto GuzziV85 TTKW EURO42019 - 2020ABE850
Moto GuzziV85 TTTravel PackKY EURO52020 - 2023ABE850
Moto GuzziV85 TTKY EURO52021 - 2023ABE850
Moto GuzziV85 TTMB EURO52021 - 202335kWABE850
Moto GuzziV85 TTTravel PackMB EURO52021 - 202335kWABE850
SuzukiDL1000 V-StromDD2014 - 2016ABE1000
SuzukiDL1000 V-StromWDD0 EURO42017 - 2020ABE1000
SuzukiDL650 V-StromC72012 - 2016C71111ABE650
SuzukiV-Strom 1050XTWEF0 EURO52020 - 2022ABE1050
SuzukiV-Strom 1050WEF0 EURO52020 - 2023ABE1050
SuzukiV-Strom 800DEWEM0 EURO52023 - ABE800
SuzukiV-Strom 800DEWEM1 EURO52023 - 35 kWABE800
TriumphSpeed Triple 1050i515NJ2008 - 2010ABE1050
TriumphSpeed Triple 1050i515NJ2005 - 2007ABE1050
TriumphStreet ScramblerDC01 EURO42017 - 2018ABE900
TriumphStreet ScramblerDC02 EURO42017 - 2018ABE900
TriumphStreet ScramblerDC03 EURO42019 - 2020ABE900
TriumphStreet ScramblerDC03R EURO42019 - 2020ABE900
TriumphStreet ScramblerDC04 EURO52021 - 2023ABE900
TriumphStreet ScramblerDC04R EURO52021 - 202335kWABE900
TriumphStreet TripleL67LR2013 - 2013with ABSABE675
TriumphStreet Triple RL67LR2013 - 2017ABE675
TriumphTiger 1050 Sport115NG2013 - 2015ABE1050
TriumphTiger 800A082011 - 2013ABE800
TriumphTiger 800A082011 - 2014with ABSABE800
TriumphTiger Explorer 1200V13VG2012 - 2015ABE1200
YamahaMT10RN45 EURO42016 - 2020ABE1000
YamahaXSR700RM11 EURO42016 - 2020ABE700
YamahaXSR700RM36 EURO52021 - 2023ABE700
YamahaXSR700LegacyRM36 EURO52023 - ABE700
YamahaXSR700LegacyRM37 EURO52023 - 2023ABE700
YamahaXSR700RM37 EURO52021 - 2023ABE700
YamahaXT1200Z Super TenereDP012010 - 2013ABE1200
