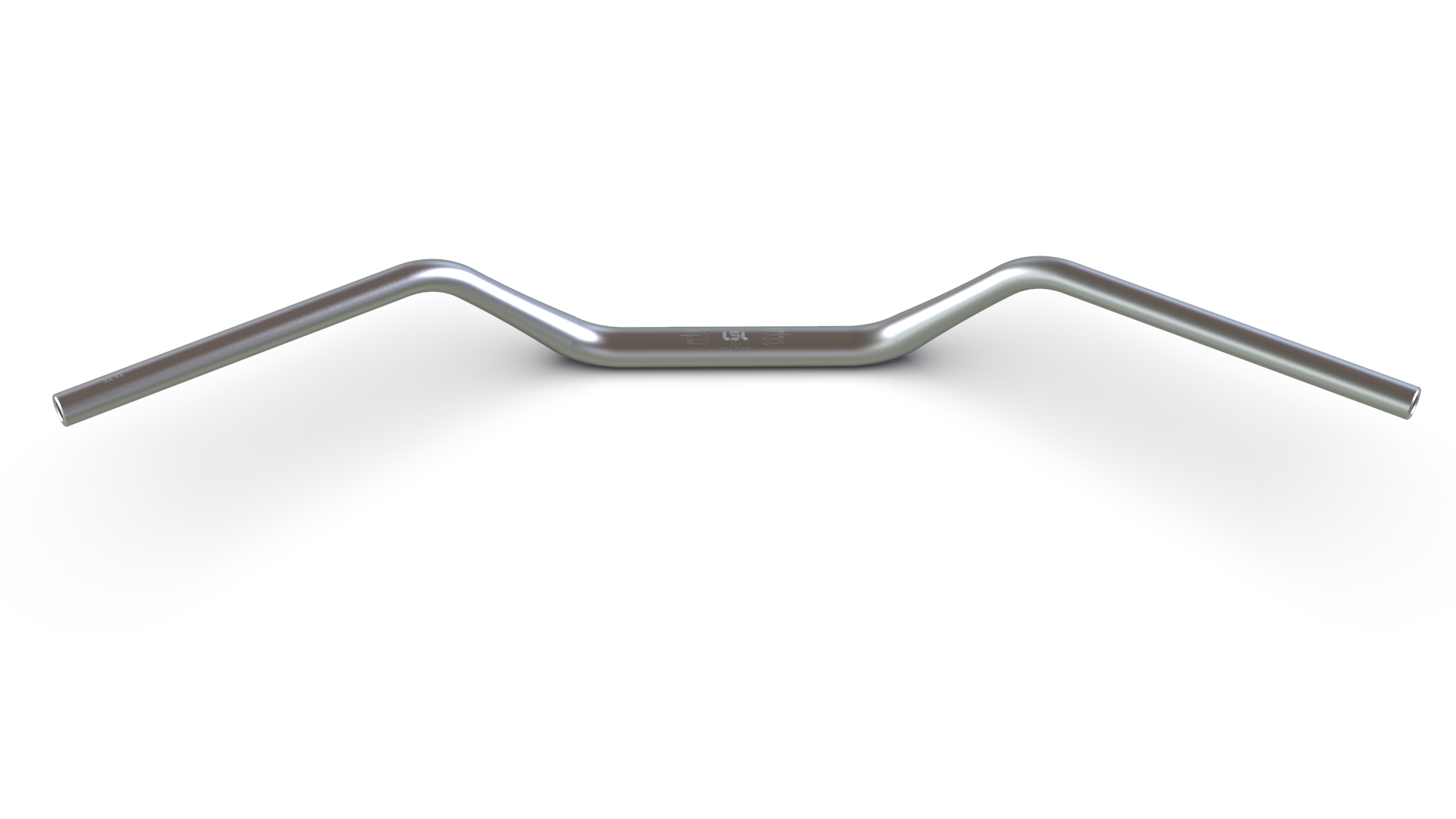

LSL X-Bar Aluminium handlebar Flat Track X14, 1 1/8 inch, silver bead-blasted
€89.95 gross
Article number:
LSL-128AX14SI
Product Details

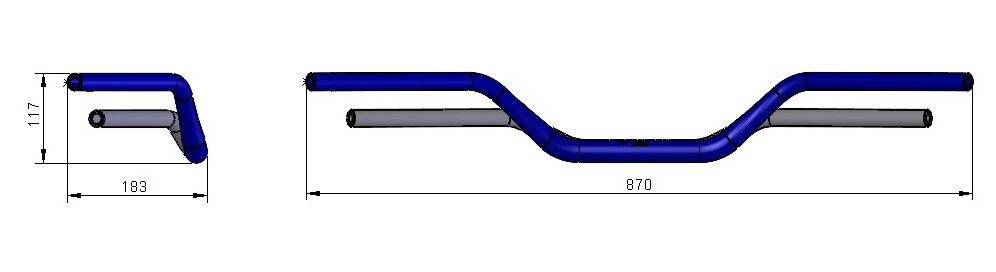

LSL X-Bar Aluminium handlebar Flat Track X14, 1 1/8 inch, 28.6mm diameter, silver bead-blasted colour.Width 870mm, height 117mm, depth 183mm, wall thickness 4.5/4mm, clamping area 157mm, grip tube length 235mm.
General Description
LSL stands for excellent handlebar quality.This is due to the company's own selection of materials and material treatment, as well as the manufacturing quality of the handlebar, which has been optimised over decades.
The X-Bar handlebar stands out with double the bending stiffness compared to standard handlebars.
The basis for this exceptional stability of the handlebar is the large diameter in the clamping area and the uniform, conical transition to the grip area.
The handlebar flexes less and offers more reserves under extreme loads.
The diameter of the handlebar in the clamping area is 28.6mm and tapers down to 22.2 mm towards the grip tube.
The wall thickness at the handlebar ends is 4 mm (inner Ø 14mm). The surface is matt bead-blasted or high-gloss polished and, depending on the handlebar type, available in up to four anodised colours.
In addition, we also offer a version with carbon fibre sheathing.
As already known in the high-tech bicycle sector, LSL now also offers a variant of the X-Bar handlebar with genuine carbon fibre sheathing.
Here, the aluminium tube is covered with a carbon fibre sleeve. This sandwich construction achieves a further reduced weight with the same stiffness as the handlebar.
The manufacturing involves absolute precision work. This is the only way to maintain the required tolerances of a motorcycle handlebar.
High attention must be paid during the assembly of these handlebar so that the transparent top layer of the carbon fibre material is not damaged.
The handlebar are supplied without holes for the anti-twist device of the switch fittings.
To best transfer the position of the holes from the standard handlebar, we recommend using an LSL drilling template.
All LSL handlebar are supplied with ABE.
The model range is huge and is expanded with new entries every year.
The ABE reliably documents which handlebar type fits and is approved for your motorcycle.
Generally, the assignments in the ABE are without conditions.
However, there are exceptions.
For example, LSL offers handlebar mounts for many models, with which you can also mount, fit, assemble one of the X-Bar handlebar on a motorcycle with standard 22.2 mm mounting.
Therefore, refer to the entry for your motorcycle in the ABE.
Should your vehicle not be found in the ABE, the ABE can be used as accompanying documentation for an individual acceptance.
Scope of delivery: 1 piece
Care instructions:
• For all handlebar and their surface variants, only use acid-free and alkali-free cleaners!
• Never clean in direct sunlight and do not allow the cleaner to dry.
• Avoid contact with brake fluid, brake cleaner, oil, fuel, polishing pastes with abrasive particles, etc.; immediately wipe up any drips with a soft cloth.
• Before application cleaning agents, test for compatibility in an inconspicuous area!
• No guarantee or warranty for improper cleaning and care.
| Diameter: | 28.6mm |
|---|
LSL-138EG125SI
€44.95
| Manufacturer | Model | Additional Designation | Type | Model Year | Variant/Version | Homologation | ccm |
|---|---|---|---|---|---|---|---|
| BMW | R12 | GN12 EURO5+ | 2024 - | ABE | 1200 | ||
| BMW | R12 | GN12r EURO5+ | 2024 - | 35kW | ABE | 1200 | |
| Ducati | Scrambler 1100 | Tribute Pro | 1K EURO5 | 2022 - 2023 | ABE | 1100 | |
| Ducati | Scrambler 1100 | Dark Pro | 1K EURO5 | 2021 - 2023 | ABE | 1100 | |
| Ducati | Scrambler 1100 | Sport Pro | 1K EURO5 | 2021 - 2022 | ABE | 1100 | |
| Ducati | Scrambler 1100 | Sport Pro | 2K EURO5 | 2021 - 2022 | ABE | 1100 | |
| Ducati | Scrambler 1100 | Sport | KG EURO4 | 2018 - 2020 | ABE | 1100 | |
| Ducati | Scrambler 1100 | Spezial | KG EURO4 | 2018 - 2020 | ABE | 1100 | |
| Ducati | Scrambler 1100 | KG EURO4 | 2018 - 2020 | ABE | 1100 | ||
| Ducati | Scrambler 400 Sixty2 | KA EURO4 | 2016 - 2020 | ABE | 400 | ||
| Ducati | Scrambler 800 | Icon | 3K EURO5 | 2021 - 2022 | ABE | 803 | |
| Ducati | Scrambler 800 | Icon | 3K EURO5 | 2021 - 2022 | ABE | 803 | |
| Ducati | Scrambler 800 | Icon | 4K EURO5 | 2021 - 2022 | ABE | 803 | |
| Ducati | Scrambler 800 | Icon | 4K EURO5 | 2021 - 2022 | ABE | 803 | |
| Ducati | Scrambler 800 | Desert Sled | 5K EURO5 | 2020 - 2024 | ABE | 800 | |
| Ducati | Scrambler 800 | Desert Sled | 6K EURO5 | 2021 - 2024 | A2 | ABE | 800 |
| Ducati | Scrambler 800 | Flat Track Pro | K1 | 2016 - 2016 | ABE | 803 | |
| Ducati | Scrambler 800 | Full Throttle | K1 | 2015 - 2016 | ABE | 803 | |
| Ducati | Scrambler 800 | Icon | K1 | 2015 - 2016 | ABE | 803 | |
| Ducati | Scrambler 800 | Desert Sled | KB EURO4 | 2017 - 2021 | ABE | 800 | |
| Ducati | Scrambler 800 | Icon | KC EURO4 | 2017 - 2021 | ABE | 803 | |
| Ducati | Scrambler 800 | Full Throttle | KC EURO4 | 2017 - 2021 | ABE | 803 | |
| Ducati | Scrambler 800 | Cafe Racer | KC EURO4 | 2017 - 2021 | ABE | 803 | |
| Ducati | Scrambler 800 | Icon Dark | KC EURO4 | 2017 - 2021 | ABE | 803 | |
| Ducati | Scrambler 800 | Full Throttle | KD EURO4 | 2017 - 2021 | ABE | 803 | |
| Ducati | Scrambler 800 | Cafe Racer | KD EURO4 | 2017 - 2020 | ABE | 803 | |
| Ducati | Scrambler 800 | Icon | KD EURO4 | 2018 - 2020 | ABE | 803 | |
| Ducati | Scrambler 800 | Icon Dark | KD EURO4 | 2020 - 2021 | ABE | 803 | |
| Ducati | Scrambler 800 | Desert Sled | KE EURO4 | 2017 - 2022 | ABE | 800 | |
| Moto Guzzi | V100 Mandello | MG EURO5 | 2022 - 2023 | ABE | 1000 | ||
| Moto Guzzi | V100 Mandello | S | MG EURO5 | 2023 - | ABE | 1000 | |
| Suzuki | V-Strom 800DE | WEM0 EURO5 | 2023 - | ABE | 800 | ||
| Suzuki | V-Strom 800DE | WEM1 EURO5 | 2023 - | 35 kW | ABE | 800 |
