LSL X-Bar Aluminium handlebar Flat Track X14, 1 1/8 inch, black bead-blasted
€89.95 gross
Article number:
LSL-128AX14SW
Product details

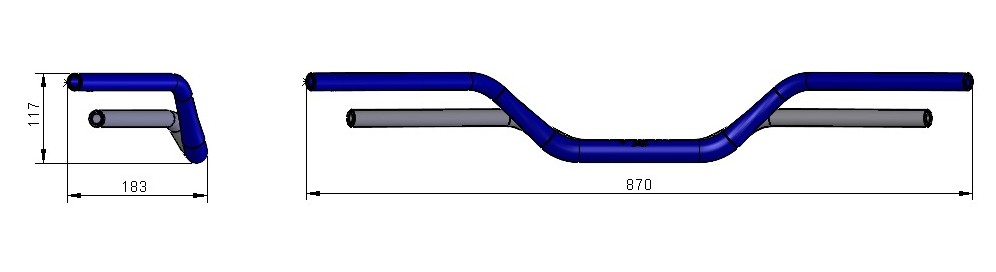

LSL X-Bar Aluminium handlebar Flat Track X14, 1 1/8 inch, 28.6mm diameter, colour black bead-blastedWidth 870mm, height 117mm, depth 183mm, wall thickness 4.5/4mm, clamping area 157mm, grip tube length 235mm
General description
LSL stands for excellent handlebar quality.This is due to the company's in-house selection of materials and material treatment, as well as the manufacturing quality of the handlebars, which has been optimised over decades.
The X-Bar handlebars impress with double bending stiffness compared to standard handlebars.
The basis for this exceptional stability of the handlebar is the large diameter in the clamping area and the uniform, conical transition to the grip area.
The handlebar flexes less and offers more reserves under extreme loads.
The diameter of the handlebar in the clamping area is 28.6mm and tapers towards the grip tube to 22.2 mm.
The wall thickness at the handlebar ends is 4 mm (inner Ø 14mm). The surface is matt bead-blasted or high-gloss polished and, depending on the handlebar type, is available in up to four anodised colours.
We also offer a version with carbon fibre casing.
As already known in the high-tech bicycle sector, LSL now also offers a version of the X-Bar handlebar with genuine carbon fibre casing.
Here, the aluminium tube is covered with a carbon fibre sleeve. This sandwich construction achieves a further reduced weight with the same stiffness of the handlebar.
The manufacturing is absolute precision work. Only in this way can the required tolerances of a motorcycle handlebar be met.
When mounting these handlebars, proceed with great care so that the transparent top layer of the carbon fibre material is not damaged.
The handlebars are supplied without holes for the anti-rotation of the switch fittings.
In order to best transfer the position of the holes from the standard handlebar, we recommend to use an LSL drilling template.
All LSL handlebars are supplied with ABE.
The range of models is huge and is expanded every year with new entries.
The ABE reliably documents which handlebar type is suitable and approved for your motorcycle.
As a rule, the assignments in the ABE are without conditions.
However, there are exceptions.
For example, LSL offers handlebar mounts for many models, with which you can mount, fit, assemble one of the X-Bar handlebars to a motorcycle with standard 22.2 mm mounting.
Therefore, refer to the entry for your motorcycle in the ABE.
If you do not find your vehicle in the ABE, the ABE can be used as a supplementary document for an individual inspection.
Scope of delivery: 1 piece
Care instructions:
• For all handlebars and their surface variants, only use acid- and alkali-free cleaners!
• Never clean in direct sunlight and do not let the cleaner dry on.
• Avoid contact with brake fluid, brake cleaner, oil, fuel, polishing pastes with abrasive particles, etc. Immediately wipe up any drips with a soft cloth.
• Before application of cleaning agents, test compatibility in an inconspicuous area!
• No warranty or guarantee in case of improper cleaning and care.
| Diameter: | 28.6mm |
|---|
LSL-138EG125SI
€44.95
| Manufacturer | Model | Additional designation | Type | Model year | Variant/Version | Homologation | ccm |
|---|---|---|---|---|---|---|---|
| BMW | R12 | GN12 EURO5+ | 2024 - | ABE | 1200 | ||
| BMW | R12 | GN12r EURO5+ | 2024 - | 35kW | ABE | 1200 | |
| Ducati | Scrambler 1100 | Sport Pro | 1K EURO5 | 2021 - 2022 | ABE | 1100 | |
| Ducati | Scrambler 1100 | Dark Pro | 1K EURO5 | 2021 - 2023 | ABE | 1100 | |
| Ducati | Scrambler 1100 | Tribute Pro | 1K EURO5 | 2022 - 2023 | ABE | 1100 | |
| Ducati | Scrambler 1100 | Sport Pro | 2K EURO5 | 2021 - 2022 | ABE | 1100 | |
| Ducati | Scrambler 1100 | Sport | KG EURO4 | 2018 - 2020 | ABE | 1100 | |
| Ducati | Scrambler 1100 | KG EURO4 | 2018 - 2020 | ABE | 1100 | ||
| Ducati | Scrambler 1100 | Special | KG EURO4 | 2018 - 2020 | ABE | 1100 | |
| Ducati | Scrambler 400 Sixty2 | KA EURO4 | 2016 - 2020 | ABE | 400 | ||
| Ducati | Scrambler 800 | Icon | 3K EURO5 | 2021 - 2022 | ABE | 803 | |
| Ducati | Scrambler 800 | Icon | 3K EURO5 | 2021 - 2022 | ABE | 803 | |
| Ducati | Scrambler 800 | Icon | 4K EURO5 | 2021 - 2022 | ABE | 803 | |
| Ducati | Scrambler 800 | Icon | 4K EURO5 | 2021 - 2022 | ABE | 803 | |
| Ducati | Scrambler 800 | Desert Sled | 5K EURO5 | 2020 - 2024 | ABE | 800 | |
| Ducati | Scrambler 800 | Desert Sled | 6K EURO5 | 2021 - 2024 | A2 | ABE | 800 |
| Ducati | Scrambler 800 | Flat Track Pro | K1 | 2016 - 2016 | ABE | 803 | |
| Ducati | Scrambler 800 | Icon | K1 | 2015 - 2016 | ABE | 803 | |
| Ducati | Scrambler 800 | Full Throttle | K1 | 2015 - 2016 | ABE | 803 | |
| Ducati | Scrambler 800 | Desert Sled | KB EURO4 | 2017 - 2021 | ABE | 800 | |
| Ducati | Scrambler 800 | Full Throttle | KC EURO4 | 2017 - 2021 | ABE | 803 | |
| Ducati | Scrambler 800 | Icon | KC EURO4 | 2017 - 2021 | ABE | 803 | |
| Ducati | Scrambler 800 | Cafe Racer | KC EURO4 | 2017 - 2021 | ABE | 803 | |
| Ducati | Scrambler 800 | Icon Dark | KC EURO4 | 2017 - 2021 | ABE | 803 | |
| Ducati | Scrambler 800 | Cafe Racer | KD EURO4 | 2017 - 2020 | ABE | 803 | |
| Ducati | Scrambler 800 | Icon | KD EURO4 | 2018 - 2020 | ABE | 803 | |
| Ducati | Scrambler 800 | Icon Dark | KD EURO4 | 2020 - 2021 | ABE | 803 | |
| Ducati | Scrambler 800 | Full Throttle | KD EURO4 | 2017 - 2021 | ABE | 803 | |
| Ducati | Scrambler 800 | Desert Sled | KE EURO4 | 2017 - 2022 | ABE | 800 | |
| Moto Guzzi | V100 Mandello | MG EURO5 | 2022 - 2023 | ABE | 1000 | ||
| Moto Guzzi | V100 Mandello | S | MG EURO5 | 2023 - | ABE | 1000 | |
| Suzuki | V-Strom 800DE | WEM0 EURO5 | 2023 - | ABE | 800 | ||
| Suzuki | V-Strom 800DE | WEM1 EURO5 | 2023 - | 35 kW | ABE | 800 |
