LSL X-Bar Aluminium-handlebar Drag Bar Wide XD2, 1 1/8 inch, Black

LSL X-Bar Aluminium-handlebar Drag Bar Wide XD2, 1 1/8 inch, Black
LSL X-Bar Aluminium-handlebar Drag Bar Wide XD2, 1 1/8 inch, Black
LSL X-Bar Aluminium-handlebar Drag Bar Wide XD2, 1 1/8 inch, Black
LSL X-Bar Aluminium-handlebar Drag Bar Wide XD2, 1 1/8 inch, Black

€89.95 gross

Prices incl. VAT plus shipping costs

Article number: LSL-128AXD2SW
Immediately available

Product Details

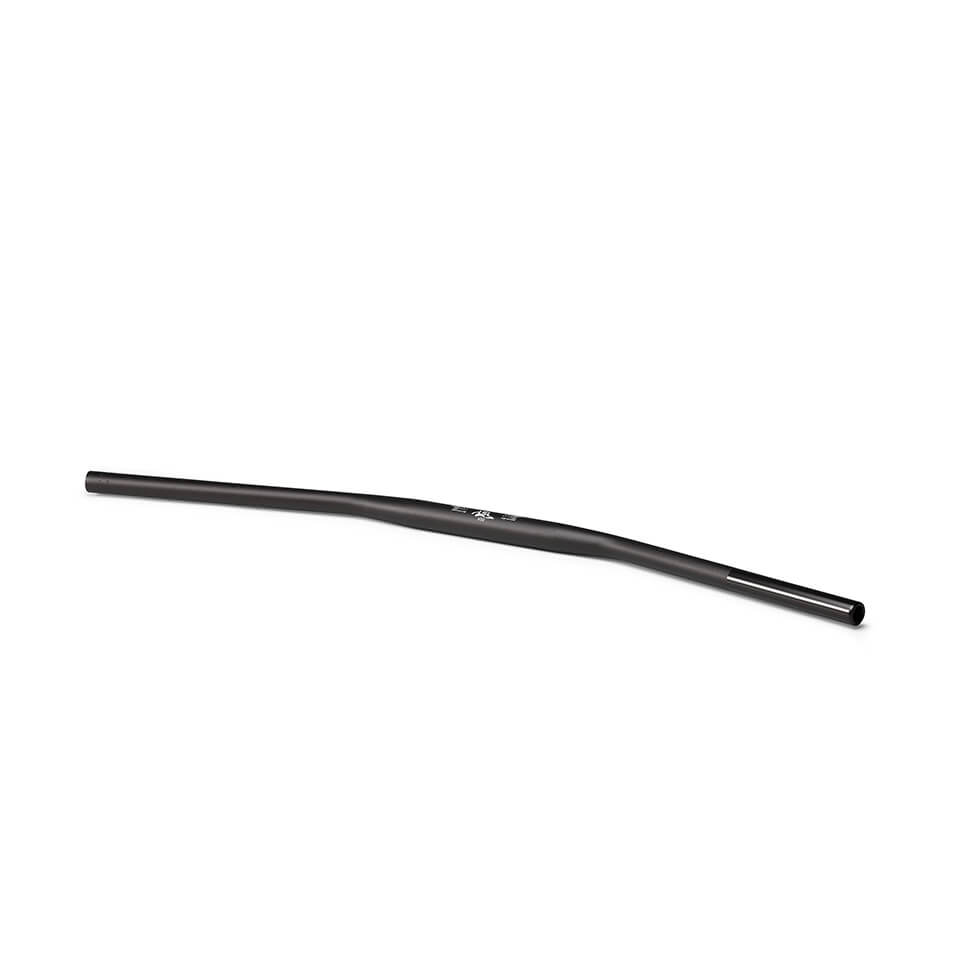

LSL X-Bar Aluminium-handlebar Drag Bar Wide XD2, 1 1/8 inch, 28.6mm diameter, black colour,

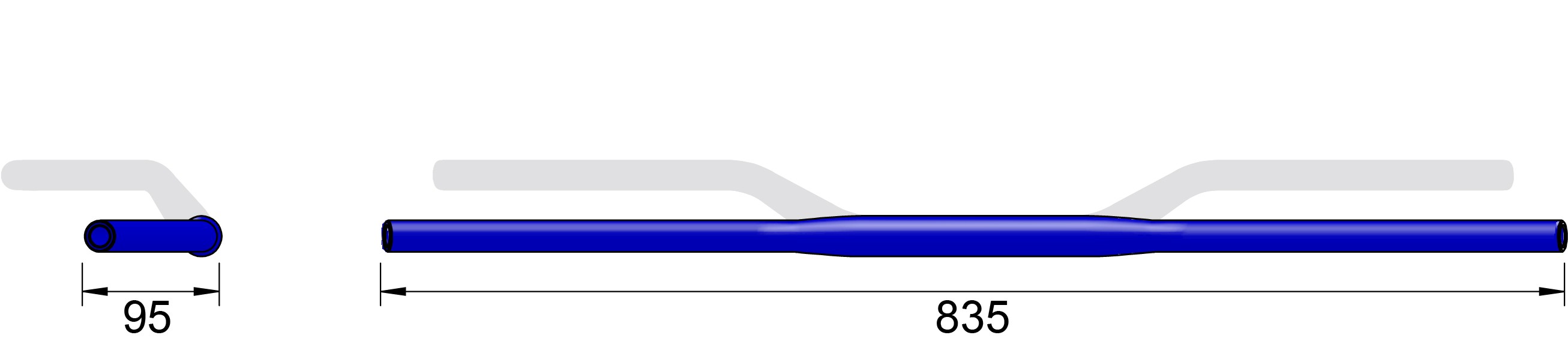

Width 835mm, depth 97mm, wall thickness 4.5/4mm, clamping area 160mm, grip tube length 265mm

General Description

LSL stands for excellent handlebar quality.

This is due to the company's own selection of materials and material treatment, as well as the handlebar manufacturing quality optimised over decades.

The X-Bar handlebar bars impress with double bending stiffness compared to standard handlebars.

The basis for this exceptional stability of the handlebar is the large diameter in the clamping area and the uniform, conical transition to the grip area.

The handlebar flexes less and offers more reserves under extreme loads.



The diameter of the handlebar in the clamping area is 28.6mm and tapers to 22.2 mm towards the grip tube.

The wall thickness at the handlebar ends is 4 mm (inner Ø 14mm). The surface is matt bead-blasted or high-gloss polished and available in up to four anodised colours, depending on the handlebar type.



We also offer a version with carbon fibre sheathing.

As already known in the high-tech bicycle sector, LSL now also offers a variant of the X-Bar handlebar with real carbon fibre sheathing.

Here, the aluminium tube is covered with a carbon fibre sleeve. This sandwich construction achieves a further reduced weight with the same stiffness of the handlebar.

Manufacturing involves absolute precision work. Only in this way can the required tolerances of a motorcycle handlebar be maintained.

Care must be taken when mounting this handlebar to ensure that the transparent top layer of the carbon fibre material is not damaged.



The handlebar bars are supplied without holes for the anti-twist protection of the switchgear.

To best adopt the position of the holes from the standard handlebar, we recommend to use an LSL drilling template.



All LSL handlebar bars are supplied with ABE.

The range of models is huge and is expanded with new entries every year.

The ABE reliably documents which handlebar type is suitable and approved for your motorcycle.

Generally, the assignments in the ABE are without conditions.

However, there are exceptions.

For example, LSL offers handlebar mounts for many models, with which you can mount, fit, assemble one of the X-Bar handlebar bars also on a motorcycle with a standard 22.2 mm mounting.

Therefore, refer to the entry for your motorcycle in the ABE.

If you cannot find your vehicle in the ABE, the ABE can be used as accompanying documentation for an individual approval.



Scope of delivery: 1 piece



Care instructions:

• For all handlebar bars and their surface variants, use only acid- and alkali-free cleaners!

• Never clean in direct sunlight and do not allow the cleaner to dry.

• Avoid contact with brake fluid, brake cleaner, oil, fuel, polishing pastes with abrasive particles etc.; immediately wipe away drips with a soft cloth.

• Before application cleaning agents, test compatibility in an inconspicuous area!

• No guarantee or warranty for improper cleaning and care.
Diameter: 28.6mm
ManufacturerModelAdditional DesignationTypeModel YearVariant/VersionNoteHomologationccm
BMWR1200RR1ST2006 - 2014ABE1200
DucatiMonster 1200M62014 - 2016ABE1200
DucatiMonster 1200MA EURO42017 - 2020ABE1200
DucatiMonster 1200MB EURO42017 - 2017ABE1200
DucatiMonster 1200RM62016 - 2016ABE1200
DucatiMonster 1200RMA EURO42017 - 2019ABE1200
DucatiMonster 1200RMB EURO42017 - 2017ABE1200
DucatiMonster 1200SM62014 - 2016ABE1200
DucatiMonster 1200SMA EURO42017 - 2020ABE1200
DucatiMonster 1200SMB EURO42017 - 2020ABE1200
DucatiMonster 821DarkM62016 - 2016ABE821
DucatiMonster 821M62014 - 2016ABE821
DucatiMonster 821MH EURO42018 - 2020ABE821
DucatiMonster 821StealthMH EURO42020 - 2021ABE821
DucatiMonster 821DarkMH EURO42020 - 2021ABE821
DucatiMonster 821StealthMK EURO42020 - 2021ABE821
DucatiMonster 821DarkMK EURO42020 - 2021ABE821
DucatiMonster 821MK EURO42017 - 2020ABE821
HondaCB1100RSSC78 EURO42017 - 2020ABE1100
HondaCB1100EXSC78 EURO42017 - 2019ABE1100
HondaCB600F HornetPC412011 - 2014ABE600
HondaCB600F HornetPC412007 - 2010ABE600
HondaNC750SRC702014 - 2015ABE750
HondaNC750SDCTRC702014 - 2015ABE750
KawasakiZ1000ZRT00A2003 - 2006ABE1000
KawasakiZ1000ZRT00B2007 - 2009ABE1000
KawasakiZ650RSER650M EURO52022 - 2022ABE650
KawasakiZ650RSER650MA2 EURO52022 - 2022ABE650
KawasakiZ650RSER650R EURO5+2023 - ABE650
KawasakiZ650RSER650RA2 EURO5+2023 - ABE650
KawasakiZ800ZR800A2013 - 2016ABE800
KawasakiZ800e VersionZR800C2013 - 2015ZR800CCDAABE800
Moto GuzziV7 ClassicLW2008 - 2012ABE750
Moto GuzziV7 IIStoneLW2015 - 2016ABE750
Moto GuzziV7 IISpecialLW2015 - 2016ABE750
Moto GuzziV7 SpecialLW2013 - 2014ABE750
Moto GuzziV7 StoneLW2013 - 2014ABE750
Moto GuzziV9 850BobberLH EURO42016 - 2019ABE850
SuzukiSV650WCX02016 - 2020ABE650
SuzukiSV650WCX12016 - 2020ABE650
TriumphSpeed Triple 1050 RNN01 EURO42016 - 2018ABE1050
TriumphSpeed Triple 1050 SNN01 EURO42016 - 2017ABE1050
TriumphSpeed Twin 1200DD01 EURO42019 - 2021ABE1200
TriumphSpeed Twin 1200DD04 EURO52021 - 2023ABE1200
TriumphStreet ScramblerDC01 EURO42017 - 2018ABE900
TriumphStreet ScramblerDC02 EURO42017 - 2018ABE900
TriumphStreet ScramblerDC03 EURO42019 - 2020ABE900
TriumphStreet ScramblerDC03R EURO42019 - 2020ABE900
TriumphStreet ScramblerDC04 EURO52021 - 2023ABE900
TriumphStreet ScramblerDC04R EURO52021 - 202335kWABE900
TriumphStreet TripleL67LR2013 - 2013mit ABSABE675
TriumphStreet Triple 765 RHD01 EURO42017 - 2017ABE765
TriumphStreet Triple 765 RHD01A EURO42018 - 2019ABE765
TriumphStreet Triple 765 RSHD01 EURO42017 - 2017ABE765
TriumphStreet Triple 765 RSHD01A EURO42018 - 2019ABE765
TriumphStreet Triple 765 SHD01 EURO42017 - 2018ABE765
TriumphStreet Triple 765 SHD01A EURO42019 - 2020ABE765
TriumphStreet Triple RL67LR2013 - 2017ABE675
TriumphStreet TwinDP01 EURO42016 - 2018ABE900
TriumphStreet TwinDP02 EURO42017 - 201835kWABE900
TriumphStreet Twin 900DP03 EURO42019 - 2020ABE900
TriumphStreet Twin 900A2DP03R EURO42019 - 202035kWABE900
TriumphStreet Twin 900DP04 EURO52021 - 2022ABE900
TriumphStreet Twin 900A2DP04R EURO52021 - 202235kWABE900
YamahaMT07RM042014 - 2016ABE700
YamahaMT07RM17 EURO42017 - 2020ABE700
YamahaMT07RM18 EURO42017 - 2020ABE700
YamahaXJR12004PU1995 - 1999ABE1200
YamahaXJR1300RP021999 - 2001ABE1300
YamahaXJR1300RP062002 - 2003ABE1300
YamahaXJR1300RP102004 - 2006ABE1300
YamahaXJR1300RP192007 - 2016ABE1300
