LSL X-Bar Alu-handlebar Tour Bar XB3, 1 1/8 inch, black

LSL X-Bar Alu-handlebar Tour Bar XB3, 1 1/8 inch, black
LSL X-Bar Alu-handlebar Tour Bar XB3, 1 1/8 inch, black
LSL X-Bar Alu-handlebar Tour Bar XB3, 1 1/8 inch, black
LSL X-Bar Alu-handlebar Tour Bar XB3, 1 1/8 inch, black

€89.95 gross

Prices incl. VAT plus shipping costs

Article number: LSL-128AXB3SW
Immediately available

Product details

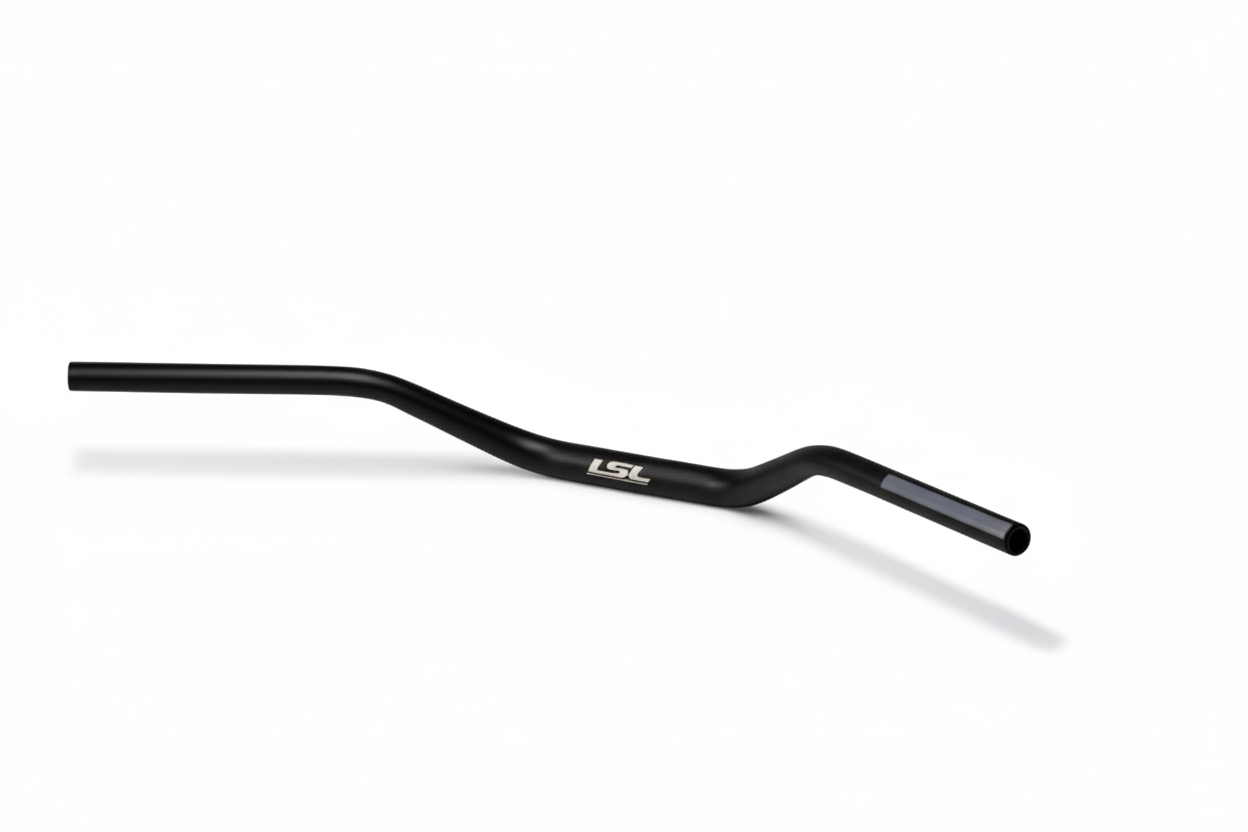

LSL X-Bar Alu-handlebar Tour Bar XB3, 1 1/8 inch 28.6mm diameter, black colour,

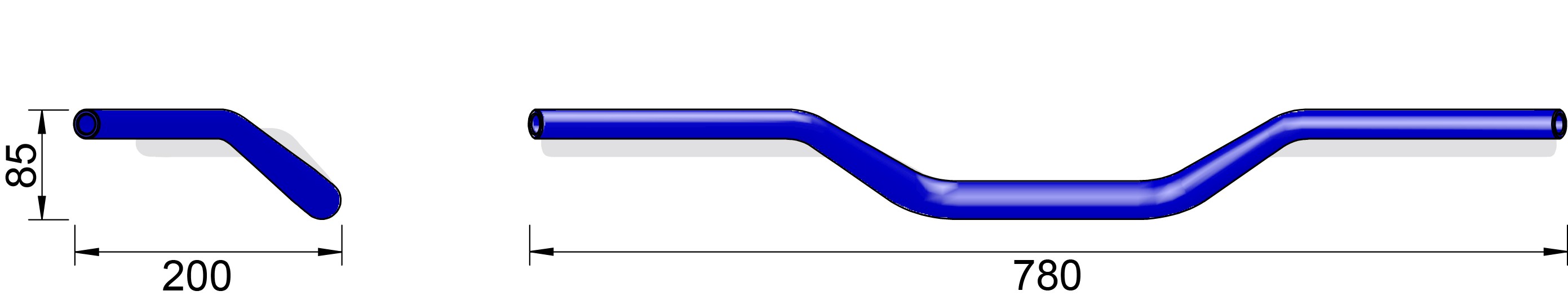

Width 780mm, height 82mm, depth 202mm, wall thickness 4.5/4mm, clamping area 130mm, grip tube length 210mm

General description

LSL stands for excellent handlebar quality.
This is due to the company's in-house selection of materials and material treatment, as well as the manufacturing quality of the handlebar which has been optimised over decades.
The X-Bar-handlebar impress with double the bending stiffness compared to standard handlebars.
The basis for this exceptional stability of the handlebar is the large diameter in the clamping area and the uniform, conical transition to the grip area.
The handlebar flexes less and offers more reserves under extreme loads.

The diameter of the handlebar in the clamping area is 28.6mm and tapers towards the grip tube to 22.2 mm.
The wall thickness at the handlebar ends is 4 mm (inner Ø 14mm). The surface is matt bead-blasted or highly polished and, depending on the handlebar type, is available in up to four anodised colours.

We also offer a version with carbon fibre sheathing.
As already known in the high-tech bicycle sector, LSL now also offers a variant of the X-Bar-handlebar with genuine carbon fibre sheathing.
Here, the aluminium tube is covered with a carbon fibre sleeve. This sandwich construction achieves a further reduced weight with the same stiffness of the handlebar.
The manufacturing process is absolute precision work. This is the only way to comply with the required tolerances of a motorcycle handlebar.
Great care must be taken when fitting these handlebar to ensure that the transparent top layer of the carbon fibre material is not damaged.

The handlebar are supplied without holes for the anti-twist protection of the switchgear.
In order to best adopt the position of the drill holes from the standard handlebar, we recommend using an LSL drilling template.

All LSL-handlebar are supplied with ABE.
The range of models is huge and is expanded with new entries every year.
In the ABE, you will find reliably documented which handlebar type fits your motorcycle and is approved.
Generally, the assignments in the ABE are without conditions.
However, there are exceptions.
For example, LSL offers handlebar mounts for many models, which allow you to mount, fit, assemble an X-Bar-handlebar on a motorcycle with a standard 22.2 mm mounting.
Therefore, please refer to the entry for your motorcycle in the ABE.
If you cannot find your vehicle in the ABE, the ABE can be used as a supporting document for an individual inspection.

Scope of delivery: 1 piece

Care instructions:
• For all handlebars and their surface variants, only use acid- and alkali-free cleaners!
• Never clean in direct sunlight and do not allow the cleaner to dry.
• Avoid contact with brake fluid, brake cleaner, oil, fuel, polishing pastes with abrasive particles etc.; immediately wipe up any drips with a soft cloth.
• Before application cleaning agents, test their compatibility in an inconspicuous area!
• No guarantee or warranty for improper cleaning and care.
Diameter: 28.6mm
ManufacturerModelAdditional DesignationTypeModel YearVariant/VersionHomologationccm
BMWR nineTScrambler1N12 EURO42020 - 2020Spoked wheelABE1200
BMWR nineTRacer1N12 EURO42020 - 2020Spoked wheelABE1200
BMWR nineTUrban G/S1N12 EURO42020 - 2020Cast wheelABE1200
BMWR nineTRacer1N12 EURO42017 - 2019ABE1200
BMWR nineTUrban G/S1N12 EURO42017 - 2019ABE1200
BMWR nineT1N12 EURO42020 - 2020Spoked wheelABE1200
BMWR nineT1N12 EURO42017 - 2020ABE1200
BMWR nineTPure1N12 EURO42017 - 2019ABE1200
BMWR nineTScrambler1N12 EURO42016 - 2019ABE1200
BMWR nineTRacer1N12 EURO42020 - 2020Cast wheelABE1200
BMWR nineT1N12 EURO42020 - 2020Cast wheelABE1200
BMWR nineTScrambler1N12 EURO42020 - 2020Cast wheelABE1200
BMWR nineTUrban G/S1N12 EURO42020 - 2020Spoked wheelABE1200
BMWR nineTR1ST2014 - 2016ABE1200
BMWR nineTScramblerRN12 EURO52021 - 2023Cast wheelABE1200
BMWR nineTUrban G/SRN12 EURO52021 - 2023Spoked wheelABE1200
BMWR nineTPureRN12 EURO52021 - 2023Cast wheelABE1200
BMWR nineTClassicRN12 EURO52021 - 2021ABE1200
BMWR nineTUrban G/SRN12 EURO52021 - 2023Cast wheelABE1200
BMWR nineTPureRN12 EURO52021 - 2023Spoked wheelABE1200
BMWR nineTScramblerRN12 EURO52021 - 2023Spoked wheelABE1200
BMWR nineTRN12 EURO52021 - 2023ABE1200
BMWR12GN12 EURO5+2024 - ABE1200
BMWR12GN12r EURO5+2024 - 35kWABE1200
BMWR12 nineTGN12 EURO5+2024 - ABE1200
BMWR12 nineTGN12r EURO5+2024 - 35kWABE1200
DucatiMultistrada V41A EURO52021 - 2023ABE1160
DucatiMultistrada V4S Sport6A EURO52021 - 2023ABE1160
FanticCaballero 125Flat TrackCA132021 - 2024ABE125
FanticCaballero 125DeluxeCA132021 - 2024ABE125
FanticCaballero 125ScramblerCA132021 - 2024ABE125
FanticCaballero 125RallyCA132021 - 2024ABE125
HondaNT1100DCTSC84 EURO52022 - ABE1084
HondaNT1100SC84 EURO52022 - ABE1084
HondaXL 750 TransalpRD16 EURO52023 - ABE750
HondaXL 750 TransalpRD16 EURO52023 - 35kWABE750
KawasakiZ650RSER650M EURO52022 - 2022ABE650
KawasakiZ650RSER650MA2 EURO52022 - 2022ABE650
KawasakiZ650RSER650R EURO5+2023 - ABE650
KawasakiZ650RSER650RA2 EURO5+2023 - ABE650
KawasakiZ800ZR800A2013 - 2016ABE800
KawasakiZ800e VersionZR800C2013 - 2015ZR800CCDAABE800
KTM890 AdventureKTM R2 ADVENTURE EURO52020 - 2023ABE890
KTM890 AdventureRKTM R2 ADVENTURE EURO52021 - 2023ABE890
KTM890 AdventureLKTM R2 ADVENTURE EURO52022 - 2023ABE890
Moto GuzziV100 MandelloMG EURO52022 - 2023ABE1000
Moto GuzziV100 MandelloSMG EURO52023 - ABE1000
Moto GuzziV85 TTKW EURO42019 - 2020ABE850
Moto GuzziV85 TTKY EURO52021 - 2023ABE850
Moto GuzziV85 TTTravel PackKY EURO52020 - 2023ABE850
Moto GuzziV85 TTTravel PackMB EURO52021 - 202335kWABE850
Moto GuzziV85 TTMB EURO52021 - 202335kWABE850
SuzukiV-Strom 1050WEF0 EURO52020 - 2023ABE1050
SuzukiV-Strom 1050XTWEF0 EURO52020 - 2022ABE1050
SuzukiV-Strom 800DEWEM0 EURO52023 - ABE800
SuzukiV-Strom 800DEWEM1 EURO52023 - 35 kWABE800
