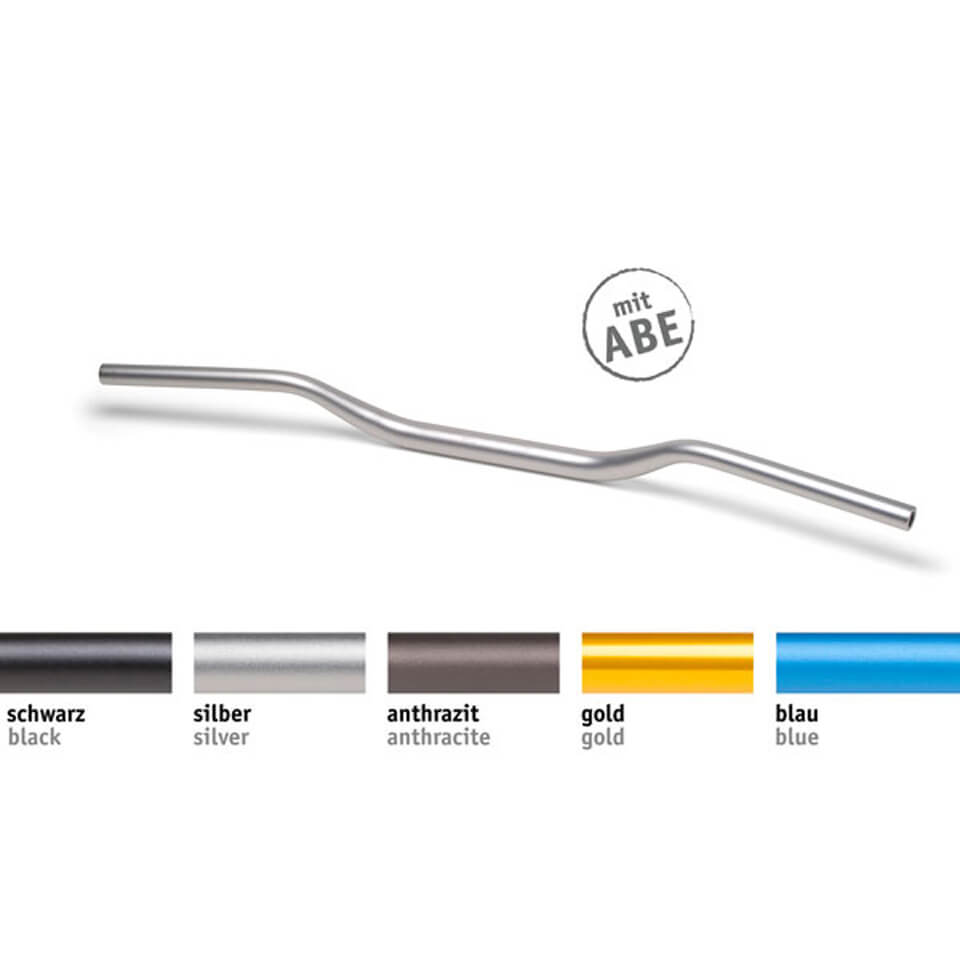

LSL X-Bar Alu-handlebar Cross Bar X00, 1 1/8 inch, anthracite

LSL X-Bar Alu-handlebar Cross Bar X00, 1 1/8 inch, anthracite
LSL X-Bar Alu-handlebar Cross Bar X00, 1 1/8 inch, anthracite
LSL X-Bar Alu-handlebar Cross Bar X00, 1 1/8 inch, anthracite
LSL X-Bar Alu-handlebar Cross Bar X00, 1 1/8 inch, anthracite
LSL X-Bar Alu-handlebar Cross Bar X00, 1 1/8 inch, anthracite
LSL X-Bar Alu-handlebar Cross Bar X00, 1 1/8 inch, anthracite

€89.95 gross

Prices incl. VAT plus shipping costs

Article number: LSL-128AX00AN
Immediately available

Product Details

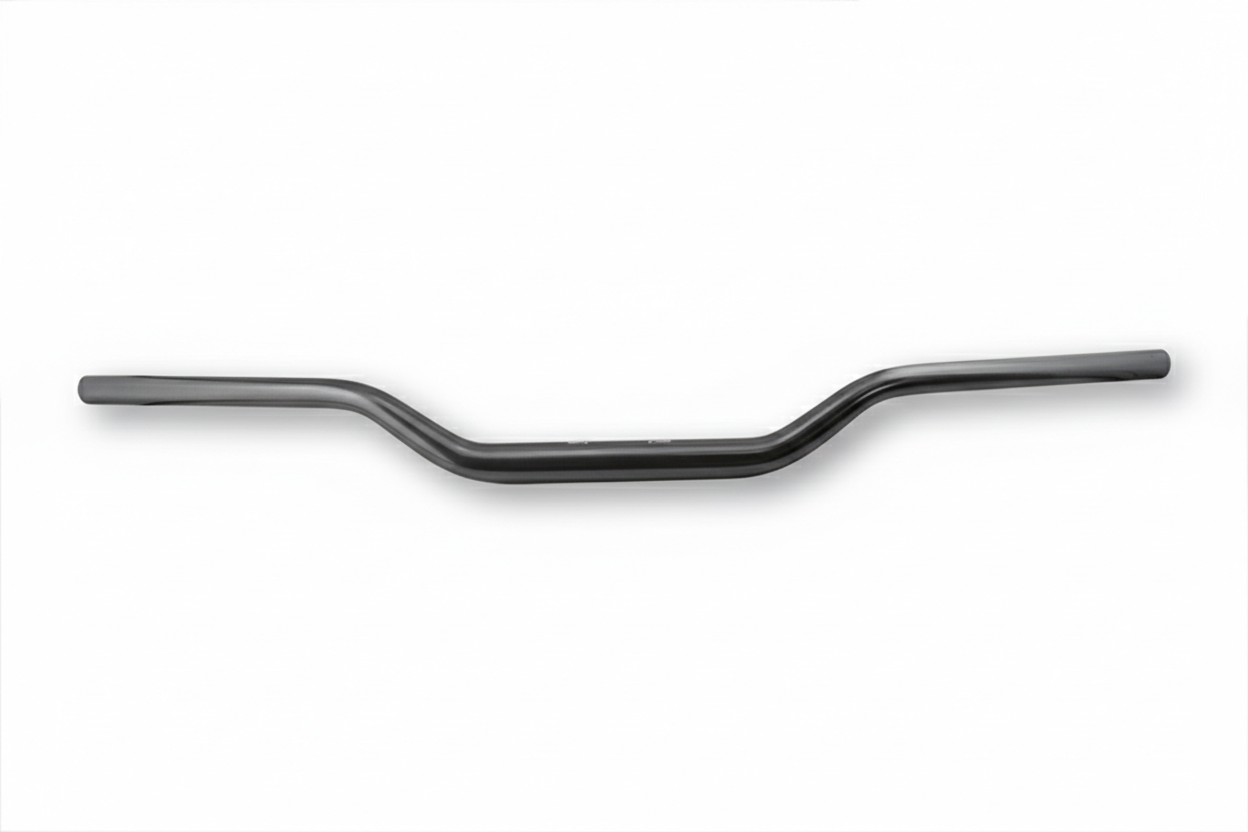

LSL X-Bar Aluminium handlebar Cross Bar X00, 1 1/8 inch, 28.60mm, Colour Anthracite,

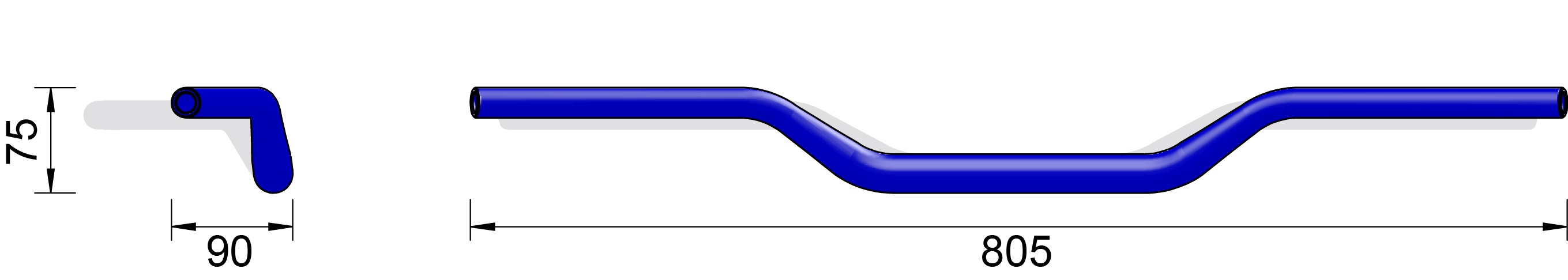

Width 805mm, Height 77mm, Depth 90mm, Wall thickness 4.5/4 mm, Clamping area 184mm, Grip tube length 208mm

General Description

LSL stands for excellent handlebar quality.
This is due to the company's own selection of materials, material treatment, and the manufacturing quality of the handlebar refined over decades.
The X-Bar handlebar impress with double the bending stiffness compared to standard handlebars.
The basis for this exceptional stability of the handlebar is the large diameter in the clamping area and the uniform, conical transition to the grip area.
The handlebar flexes less and offers more reserves under extreme load.

The diameter of the handlebar is 28.6mm in the clamping area and tapers to 22.2mm towards the grip tube.
The wall thickness at the handlebar ends is 4 mm (inner Ø 14mm). The surface is matt bead-blasted or high-gloss polished and available in up to four anodised colours, depending on the handlebar type.

We also offer a version with a carbon fibre sheath.
As already known in the high-tech bicycle sector, LSL now also offers a variant of the X-Bar handlebar with a genuine carbon fibre sheath.
Here, the aluminium tube is covered with a carbon fibre sleeve. This sandwich construction achieves a further reduced weight with the same stiffness as the handlebar.
The manufacturing process involves absolute precision work. This is the only way to meet the required tolerances of a motorcycle handlebar.
Great care must be taken when installing these handlebar to avoid damaging the transparent top layer of the carbon fibre material.

The handlebar are supplied without drill holes for the anti-twist mechanism of the switchgear.
To best transfer the position of the drill holes from the standard handlebar, we recommend using an LSL drilling template.

All LSL handlebar are supplied with ABE.
The range of models is huge and is expanded with new entries every year.
In the ABE, you will find reliably documented which handlebar type is suitable and approved for your motorcycle.
Generally, the assignments in the ABE are without conditions.
However, there are exceptions.
For example, LSL offers handlebar mounts for many models, which allow you to mount, fit, assemble one of the X-Bar handlebar on a motorcycle with standard 22.2 mm mounting.
Therefore, check the entry for your motorcycle in the ABE.
If you do not find your vehicle in the ABE, the ABE can be used as accompanying documentation for an individual inspection.

Scope of delivery: 1 piece

Care instructions:
• For all handlebar and their surface variants, use only acid- and alkali-free cleaners!
• Never clean in direct sunlight and do not allow the cleaner to dry.
• Avoid contact with brake fluid, brake cleaner, oil, fuel, polishing pastes with abrasive particles, etc. Immediately wipe off any drips with a soft cloth.
• Before application of cleaning agents, test compatibility in an inconspicuous area!
• No guarantee or warranty for improper cleaning and care.
Diameter: 28.6mm
ManufacturerModelAdditional DesignationTypeModel YearVariant/VersionNoteHomologationccm
ApriliaDorsoduro SMV750SM2009 - 2017ABE750
ApriliaDorsoduro SMV750SM2015 - 201735kWABE750
ApriliaRX125KT EURO52021 - 2021ABE125
ApriliaRX125KT EURO52021 - 2023ABE125
ApriliaRX125KX EURO42018 - 2020ABE125
ApriliaShiver SL750RA2010 - 2017Var.E Vers.00/01ABE750
ApriliaShiver SL750RA2007 - 2009ABE750
ApriliaSX125KT EURO52021 - 2023ABE125
ApriliaSX125KX EURO42018 - 2020ABE125
ApriliaTuareg 660XB EURO52022 - 2023ABE660
ApriliaTuareg 660XC EURO52022 - 2023ABE660
ApriliaTuono 660KS EURO52020 - 2023ABE660
ApriliaTuono 660KV EURO52020 - 202135 kWABE660
ApriliaTuono 660KV1 EURO52022 - 202335 kWABE660
ApriliaTuono V4 1100 FactoryKG EURO42017 - 2018ABE1100
ApriliaTuono V4 1100 FactoryKG1 EURO42019 - 2020ABE1100
ApriliaTuono V4 1100 FactoryKZ EURO52021 - 2023ABE1100
ApriliaTuono V4 1100 FactoryTY2015 - 2016ABE1100
ApriliaTuono V4 1100 RRKG1 EURO42019 - 2020ABE1100
ApriliaTuono V4 1100 RRKZ EURO52021 - 2022ABE1100
ApriliaTuono V4 RAPRCTY2011 - 2013ABE1000
ApriliaTuono V4 RTY2011 - 2013ABE1000
ApriliaTuono V4 RAPRC ABSTY2013 - 2015ABE1000
BMWF700GSE8GS2013 - 2016ABE800
BMWF800R4R80 EURO42018 - 2019ABE800
BMWF800R4R80 EURO42017 - 2017ABE800
BMWF800RE8ST2015 - 2016ABSABE800
BMWF900R4R90 EURO52020 - 2023ABE900
BMWF900R4R90 EURO52021 - 2023DTC ESAABE900
BMWF900R4R90 EURO52021 - 2023DTCABE900
BMWF900R4R90 EURO52020 - 2023ESAABE900
BMWF900RA24R90r EURO52021 - 202335kW DTC ESAABE900
BMWF900RA24R90r EURO52021 - 202135kW DTCABE900
BMWF900RA24R90r EURO52020 - 202335kW ESAABE900
BMWF900RA24R90r EURO52020 - 202335kWABE900
BMWR nineTScrambler1N12 EURO42020 - 2020Spoked WheelABE1200
BMWR nineT1N12 EURO42020 - 2020Spoked WheelABE1200
BMWR nineTUrban G/S1N12 EURO42020 - 2020Cast WheelABE1200
BMWR nineTScrambler1N12 EURO42020 - 2020Cast WheelABE1200
BMWR nineT1N12 EURO42017 - 2020ABE1200
BMWR nineTPure1N12 EURO42017 - 2019ABE1200
BMWR nineTUrban G/S1N12 EURO42020 - 2020Spoked WheelABE1200
BMWR nineT1N12 EURO42020 - 2020Cast WheelABE1200
BMWR nineTUrban G/S1N12 EURO42017 - 2019ABE1200
BMWR nineTScrambler1N12 EURO42016 - 2019ABE1200
BMWR nineTR1ST2014 - 2016ABE1200
BMWR nineTScramblerRN12 EURO52021 - 2023Cast WheelABE1200
BMWR nineTRN12 EURO52021 - 2023ABE1200
BMWR nineTPureRN12 EURO52021 - 2023Cast WheelABE1200
BMWR nineTUrban G/SRN12 EURO52021 - 2023Spoked WheelABE1200
BMWR nineTClassicRN12 EURO52021 - 2021ABE1200
BMWR nineTScramblerRN12 EURO52021 - 2023Spoked WheelABE1200
BMWR nineTUrban G/SRN12 EURO52021 - 2023Cast WheelABE1200
BMWR nineTPureRN12 EURO52021 - 2023Spoked WheelABE1200
BMWR1200RR1ST2006 - 2014ABE1200
BMWS1000R2R10 EURO42017 - 2020ABE1000
BMWS1000RK102014 - 2016ABE1000
DucatiDiavel 1200TitaniumG12015 - 2015ABE1200
DucatiDiavel 1200G12011 - 2016ABE1200
DucatiDiavel 1200DarkG12013 - 2014ABE1200
DucatiDiavel 1200StradaG12013 - 2014ABE1200
DucatiHypermotard 1100B12007 - 2010ABE1100
DucatiHypermotard 1100 EVOB12010 - 2012ABE1100
DucatiHypermotard 1100 EVO SPB12010 - 2012ABE1100
DucatiHypermotard 1100SB12007 - 2010ABE1100
DucatiMonster 1200SM62014 - 2016ABE1200
DucatiMonster 821DarkM62016 - 2016ABE821
DucatiMonster 821M62014 - 2016ABE821
DucatiMonster 821MH EURO42018 - 2020ABE821
DucatiMonster 821StealthMH EURO42020 - 2021ABE821
DucatiMonster 821DarkMH EURO42020 - 2021ABE821
DucatiMonster 821DarkMK EURO42020 - 2021ABE821
DucatiMonster 821StealthMK EURO42020 - 2021ABE821
DucatiMonster 821MK EURO42017 - 2020ABE821
DucatiScrambler 800Desert Sled5K EURO52020 - 2024ABE800
DucatiScrambler 800Desert Sled6K EURO52021 - 2024A2ABE800
DucatiScrambler 800Desert SledKB EURO42017 - 2021ABE800
DucatiScrambler 800Desert SledKE EURO42017 - 2022ABE800
FanticXEF 125FA13 EURO52021 - 2024ABE125
FanticXMF 125FA13 EURO52021 - 2024ABE125
HondaCB1000RNeo Sports CafeSC80 EURO42018 - 2020ABE1000
HondaCB1000RNeo Sports Cafe +SC80 EURO42019 - 2020ABE1000
HondaCB1000RNeo Sports CafeSC80 EURO52021 - 2022ABE1000
HondaCB1000RSC80 EURO52023 - 2023ABE1000
HondaCB1100EXSC78 EURO42017 - 2019ABE1100
HondaCB1100RSSC78 EURO42017 - 2020ABE1100
HondaCB500FPC452013 - 2016ABE500
HondaCB500FPC58 EURO42017 - 2018ABE500
HondaCB600F HornetPC412007 - 2010ABE600
HondaCB600F HornetPC412011 - 2014ABE600
HondaCB650FRC752014 - 2016ABE650
HondaCB650FRC97 EURO42017 - 2018ABE650
HondaCB750 HornetRH12 EURO52023 - 1CVABE750
HondaCB750 HornetRH12 EURO52023 - 1ABE750
HondaCRF1000L Africa TwinSD042016 - 2016ABE1000
HondaCRF1000L Africa TwinSD06 EURO42017 - 2019ABE1000
HondaCRF1000L Africa TwinDTCSD06 EURO42017 - 2019ABE1000
HondaXL700V TransalpRD132008 - 2009ABE700
Husqvarna701 EnduroHUSQVARNA701 EURO42016 - 2020ABE701
Husqvarna701 EnduroHUSQVARNA701 EURO52021 - ABE701
Husqvarna701 SupermotoHUSQVARNA701 EURO42016 - 2020ABE701
Husqvarna701 SupermotoHUSQVARNA701 EURO52021 - 2024ABE701
KawasakiER6nER650C2009 - 2011ABE650
KawasakiZ1000ZRT00A2003 - 2006ABE1000
KawasakiZ1000ZRT00B2007 - 2009ABE1000
KawasakiZ1000ZRT00D2010 - 2013ABE1000
KawasakiZ1000ZRT00F2014 - 2016ABE1000
KawasakiZ1000ZRT00H EURO42017 - 2020ABE1000
KawasakiZ1000REditionZRT00H EURO42017 - 2020ABE1000
KawasakiZ650ER650H EURO42017 - 2019ABE650
KawasakiZ650RSER650M EURO52022 - 2022ABE650
KawasakiZ650RSER650MA2 EURO52022 - 2022ABE650
KawasakiZ650RSER650R EURO5+2023 - ABE650
KawasakiZ650RSER650RA2 EURO5+2023 - ABE650
KawasakiZ800ZR800A2013 - 2016ABE800
KawasakiZ900ZR900B EURO42017 - 2019ABE900
KawasakiZ900ZR900D EURO42018 - 2018ABE900
KawasakiZ900ZR900D EURO42019 - 2019ABE900
KawasakiZ900ZR900F EURO42020 - 2020ABE900
KawasakiZ900SEZR900F EURO52021 - 2024ABE900
KawasakiZ900SE PerformanceZR900F EURO52024 - 2024ABE900
KawasakiZ900ZR900F EURO52021 - 2024ABE900
KawasakiZ900ZR900H EURO42020 - 202070kWABE900
KawasakiZ900ZR900H EURO52021 - 202170kWABE900
KawasakiZ900ZR900HA2 EURO42020 - 2020ABE900
KawasakiZ900ZR900HA2 EURO52021 - 2021ABE900
KawasakiZ900PerformanceZR900P EURO52024 - 2024ABE900
KawasakiZ900ZR900P EURO52022 - 2024ABE900
KawasakiZ900ZR900PA2 EURO52022 - 2024ABE900
KTM1290 Super Duke GTKTM Superduke A1 EURO42016 - 2020ABE1290
KTM1290 Super Duke GTKTM Superduke A1 EURO52021 - 2023ABE1290
KTM1290 Super Duke RKTM Superduke EURO42017 - 2019Var. B1ABE1290
KTM1290 Super Duke RKTM Superduke EURO52020 - 2023ABE1290
KTM200 DukeKTMISDUKE2012 - 2016ABE200
KTM200 DukeKTMISDUKE2017 - 2020ABE200
KTM390 DukeKTMISDUKE2013 - 2016ABE390
KTM690 DukeKTM DUKE2011 - 2011ABE690
KTM690 DukeKTM DUKE2012 - 2016ABE690
KTM690 DukeKTM DUKE EURO42017 - 2019ABE690
KTM690 SMC RKTM 690 LC4 EURO42019 - 2020ABE690
KTM690 SMC RKTM 690 LC4 EURO52021 - ABE690
KTM790 DukeKTM 790 Duke EURO42018 - 2020ABE790
KTM790 DukeKTM CV2 DUKE EURO52021 - 202477 kWABE790
KTM790 Duke LKTM 790 Duke L EURO42020 - 202035 KWABE790
KTM790 Duke LKTM 790 Duke L EURO42018 - 201970 KWABE790
KTM790 Duke LKTM 790 Duke L EURO52021 - 202235 KWABE790
KTM790 Duke LKTM CV2 DUKE EURO52023 - 35 kWABE790
KTM890 AdventureKTM R2 ADVENTURE EURO52020 - 2023ABE890
KTM890 AdventureRKTM R2 ADVENTURE EURO52021 - 2023ABE890
KTM890 AdventureLKTM R2 ADVENTURE EURO52022 - 2023ABE890
KTM890 DukeKTM 790 Duke EURO52021 - 2023ABE890
KTM890 Duke GPKTM 790 Duke EURO52023 - ABE890
KTM890 Duke LKTM 790 Duke L EURO52021 - 202170 kwABE890
KTM890 Duke LKTM 790 Duke L EURO52021 - 202235 kwABE890
KTM890 Duke RKTM 790 Duke EURO52020 - ABE890
KTM990 Super DukeKTM LC82005 - 2011ABE990
KTM990 Super Duke RKTM LC8 EFI2007 - 2014ABE990
Moto GuzziV7 ClassicLW2008 - 2012ABE750
Moto GuzziV7 IIStoneLW2015 - 2016ABE750
Moto GuzziV7 IISpecialLW2015 - 2016ABE750
Moto GuzziV7 SpecialLW2013 - 2014ABE750
Moto GuzziV7 StoneLW2013 - 2014ABE750
Moto GuzziV9 850BobberLH EURO42016 - 2019ABE850
MV AgustaBrutale 800B1 EURO42016 - 2020ABE800
MV AgustaBrutale 800B32013 - 2015ABE800
SuzukiDL650 V-StromC72012 - 2016C71111ABE650
SuzukiGSX-8SWEM2 EURO52023 - 2024Var 1 / Ver 1ABE800
SuzukiGSX-8SWEM3 EURO52023 - 35kW Var 1 / Ver 1ABE800
SuzukiGSX-S1000DG2015 - 2016ABE1000
SuzukiGSX-S1000WDG0 EURO42017 - 2021ABE1000
SuzukiGSX-S1000FDG2015 - 2016ABE1000
SuzukiGSX-S1000FWDG0 EURO42017 - 2020ABE1000
SuzukiGSX-S1000GTWEK0 EURO52022 - 2023ABE1000
SuzukiGSX-S1000S KatanaWEK0 EURO52022 - 2023ABE1000
SuzukiSFV650 GladiusWVCX2009 - 2015ABE650
SuzukiV-Strom 1050XTWEF0 EURO52020 - 2022ABE1050
SuzukiV-Strom 1050WEF0 EURO52020 - 2023ABE1050
TriumphBonneville908MD2001 - 2006ABE790
TriumphBonneville986MF2008 - 2016ABE865
TriumphBonneville986MK2008 - 2016ABE865
TriumphBonneville T100908MD2003 - 2005ABE800
TriumphBonneville T100986MF2005 - 2015ABE865
TriumphScrambler 900986MG2006 - 2007ABE900
TriumphScrambler 900986MG22008 - 2015ABE900
TriumphSpeed Triple 1050 R515NV2012 - 2015ABE1050
TriumphSpeed Triple 1050 RNN01 EURO42016 - 2018ABE1050
TriumphSpeed Triple 1050 SNN01 EURO42016 - 2017ABE1050
TriumphSpeed Triple 1050i515NJ2008 - 2010ABE1050
TriumphSpeed Triple 1050i515NJ2005 - 2007ABE1050
TriumphSpeed Triple 1050i515NV2011 - 2016ABE1050
TriumphSpeed Twin 1200DD01 EURO42019 - 2021ABE1200
TriumphSpeed Twin 1200DD04 EURO52021 - 2023ABE1200
TriumphStreet ScramblerDC01 EURO42017 - 2018ABE900
TriumphStreet ScramblerDC02 EURO42017 - 2018ABE900
TriumphStreet ScramblerDC03 EURO42019 - 2020ABE900
TriumphStreet ScramblerDC03R EURO42019 - 2020ABE900
TriumphStreet ScramblerDC04 EURO52021 - 2023ABE900
TriumphStreet ScramblerDC04R EURO52021 - 202335kWABE900
TriumphStreet TripleL67LR2013 - 2013with ABSABE675
TriumphStreet Triple 765Moto 2 EditionH801 EURO52023 - ABE765
TriumphStreet Triple 765 RHD01 EURO42017 - 2017ABE765
TriumphStreet Triple 765 RHD01A EURO42018 - 2019ABE765
TriumphStreet Triple 765 RLowHD04 EURO52021 - 2020ABE765
TriumphStreet Triple 765 RHD04 EURO52020 - 2020ABE765
TriumphStreet Triple 765 RSH801 EURO52023 - ABE765
TriumphStreet Triple 765 RSHD01 EURO42017 - 2017ABE765
TriumphStreet Triple 765 RSHD01A EURO42018 - 2019ABE765
TriumphStreet Triple 765 RSHD04 EURO52020 - 2022ABE765
TriumphStreet Triple 765 SHD01 EURO42017 - 2018ABE765
TriumphStreet Triple 765 SHD01A EURO42019 - 2020ABE765
TriumphStreet Triple RL67LR2013 - 2017ABE675
TriumphStreet TwinDP01 EURO42016 - 2018ABE900
TriumphStreet TwinDP02 EURO42017 - 201835kWABE900
TriumphStreet Twin 900DP03 EURO42019 - 2020ABE900
TriumphStreet Twin 900A2DP03R EURO42019 - 202035kWABE900
TriumphStreet Twin 900DP04 EURO52021 - 2022ABE900
TriumphStreet Twin 900A2DP04R EURO52021 - 202235kWABE900
TriumphTiger 1050115NG2007 - 2011ABE1050
TriumphTiger 1050 Sport115NG2013 - 2015ABE1050
TriumphTiger 800A082011 - 2013ABE800
TriumphTiger 800A082011 - 2014with ABSABE800
YamahaFZ6RJ142007 - 2008ABE600
YamahaFZ6 FazerRJ142007 - 2009ABE600
YamahaFZ6 Fazer S2RJ142007 - 2010ABE600
YamahaFZ6 S2RJ142007 - 2010ABE600
YamahaFZ8RN252010 - 2016ABE800
YamahaFZ8 FazerRN252010 - 2016ABE800
YamahaMT07RM042014 - 2016ABE700
YamahaMT07RM17 EURO42017 - 2020ABE700
YamahaMT07RM18 EURO42017 - 2020ABE700
YamahaMT07RM33 EURO52021 - 2024ABE700
YamahaMT07RM34 EURO52021 - 2024ABE700
YamahaMT09RN292013 - 2016ABE900
YamahaMT09RN43 EURO42017 - 2020ABE900
YamahaMT09SPRN69 EURO52021 - 2021ABE900
YamahaMT09RN69 EURO52021 - 2021ABE900
YamahaMT09RN82 EURO52022 - 2023ABE900
YamahaMT09SPRN82 EURO52022 - 2023ABE900
YamahaMT09 Sport TrackerRN292014 - 2014ABE900
YamahaMT09 Street RallyRN292014 - 2014ABE900
YamahaMT09 TracerRN292015 - 2016ABE900
YamahaMT10RN45 EURO42016 - 2020ABE1000
YamahaMT125RE39 EURO42020 - 2020ABE125
YamahaMT125RE40 EURO52021 - 2023ABE125
YamahaV MaxRP212009 - 2016ABE1700
YamahaWR125RDE072009 - 2016ABE125
YamahaWR125XDE072009 - 2016ABE125
YamahaXJR12004PU1995 - 1999ABE1200
YamahaXJR1300RP021999 - 2001ABE1300
YamahaXJR1300RP062002 - 2003ABE1300
YamahaXJR1300RP102004 - 2006ABE1300
YamahaXJR1300RP192007 - 2016ABE1300
YamahaXSR700RM11 EURO42016 - 2020ABE700
YamahaXSR700RM36 EURO52021 - 2023ABE700
YamahaXSR700LegacyRM36 EURO52023 - ABE700
YamahaXSR700RM37 EURO52021 - 2023ABE700
YamahaXSR700LegacyRM37 EURO52023 - 2023ABE700
YamahaXSR900RN43 EURO42016 - 2021ABE900
YamahaXSR900RN80 EURO52022 - 2023ABE900
YamahaXSR900RN86 EURO52022 - 2023ABE900
YamahaXT1200Z Super TenereDP012010 - 2013ABE1200
Seller information
This website uses cookies to provide the best possible experience. More Information ...
