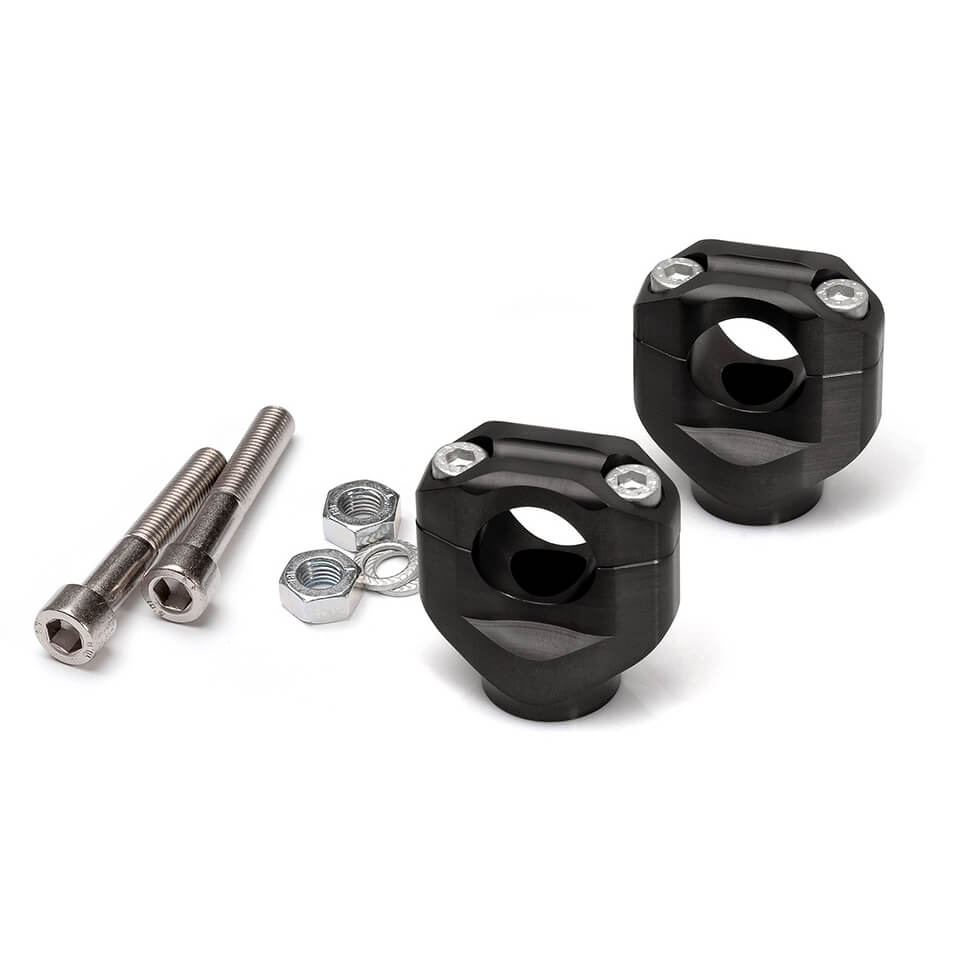

LSL Universal Handlebar Riser Kit, 75 mm Screw Length, for 22.2 mm handlebar, Black

Product Details

LSL Universal Handlebar Riser Kit, 75 mm Screw Length, for 22.2 mm handlebar, Black

General Description

Universal Handlebar Risers handlebar-Ø22.2 mm
For use with handlebar with a clamping diameter of 22.2 mm, LSL offers risers for bolting into the original mounting points of the upper triple clamp. The risers are CNC-machined from high-quality solid aluminium. They replace the standard risers to achieve an improved aesthetic. They can be mounted in the original mounting points with centrally located M10 x 1.25 mm screws. For models with rubber mounts, these are retained.
Note:
Please check if your vehicle is listed in the ABE and determine the required screw length.
Attention:
This item is only exempt from registration if your motorcycle is assigned to riser KM3 in the accompanying ABE and all conditions are observed.
For vehicles not listed in the model list, approval by inspection in accordance with § 19(2) StVZO is possible.
How to determine the screw length:
Measure the length of the original screws protruding from the original risers. This is the usable screw length L, as shown in the technical drawing.

Select the desired colour and required screw length.
Material: Aluminium
Material treatment: CNC-machined, anodised
Mounting: Central bolting to the standard mounting points M10 x 1.25 mm
Riser KM3: 35 mm high
Dimensions: 7/8 inch clamp, for Ø 22.2mm handlebar
Included in delivery:
• Risers (KM3) 1 pair
• Screws M8x25 4 pieces
• Screws M10x1.25 2 pieces in the selected length
• U-washer M10 2 pieces
• Nuts M10x1.25 (self-locking) 2 pieces
