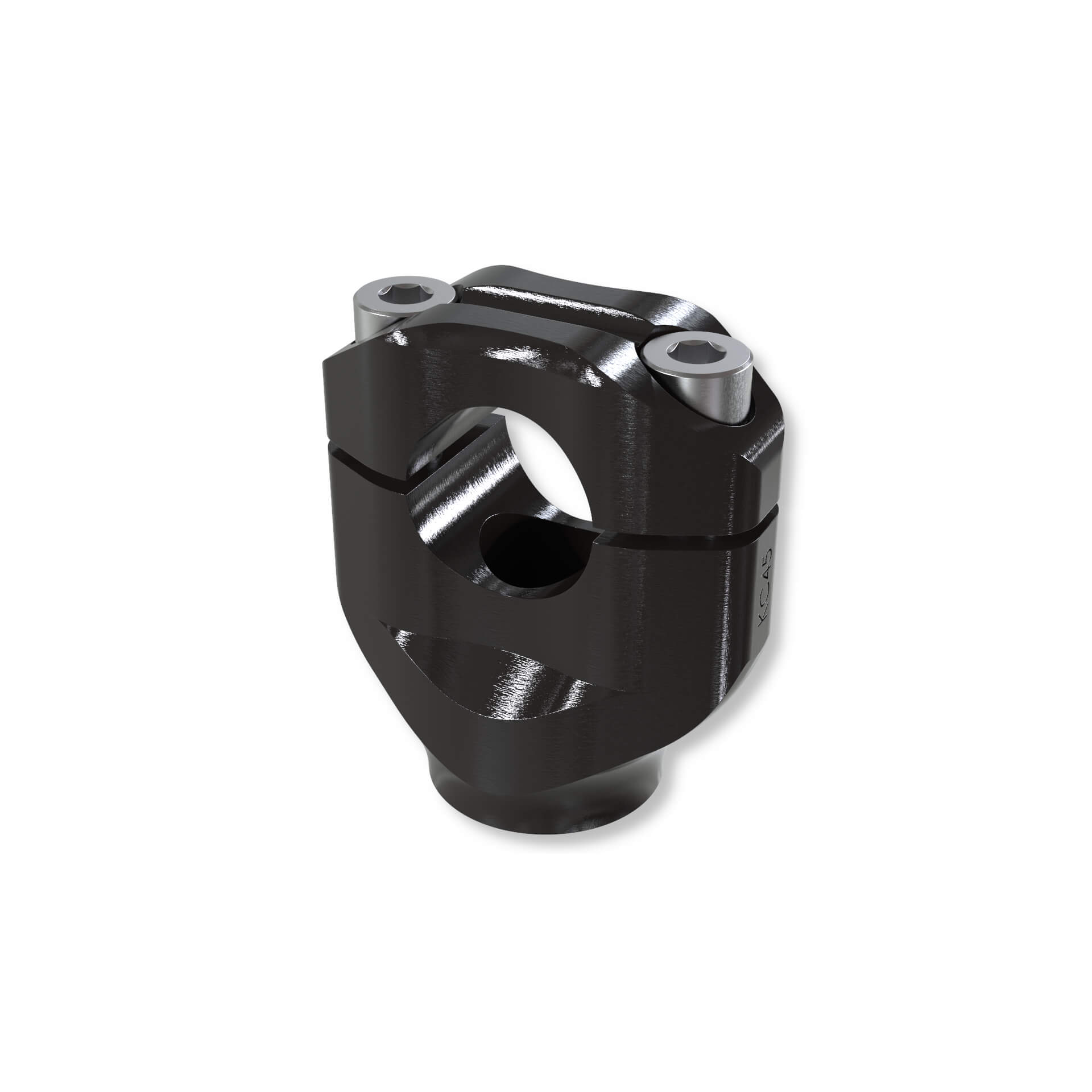

LSL Universal Handlebar Clamp Kit for 1 inch/25.4 mm handlebar, Screw Length 75 mm, Black

Product details

LSL Universal Handlebar Clamp Kit for 1 inch/25.4 mm handlebar, Screw Length 75 mm, Black

General description

Universal handlebar clamps for handlebar-Ø25.4 mm
For using handlebar with a clamping diameter of 25.4 mm, LSL offers the necessary handlebar clamps for mounting in the original attachment points of the upper triple clamps. The handlebar clamps are CNC-milled from high-quality solid aluminium. They replace the standard handlebar clamps to achieve a different height and an improved appearance. They can be mounted in the original attachment points with centrally located M10 x 1.25 mm screws. For models with rubber mounting, this is retained.
Note:
Please check whether your vehicle is listed in the ABE and determine the required screw length.
Attention:
This item is only registration-free if your motorcycle is assigned to the KC45 handlebar clamp in the accompanying ABE and all conditions are observed.
For vehicles not listed in the model list, approval through acceptance according to § 19(2) StVZO is possible.
How to determine the screw length:
Measure the length of the original screws that protrude from the original handlebar clamps. This is the usable screw length L, as shown in the technical drawing.

Select the desired colour and required usable screw length.
Material: Aluminium
Material treatment: CNC-milled, anodised
Mounting: Central screw fitting to the standard attachment points M10 x 1.25 mm
Offset: + 45 mm
Dimensions: 1 inch clamping
Scope of delivery:
• Handlebar clamps (KC45) 1 pair
• Screws M8x25 4 pieces
• Screws M10x1.25 2 pieces in the selected length
• U-washers M10 2 pieces
• Nuts M10x1.25 (self-locking) 2 pieces
