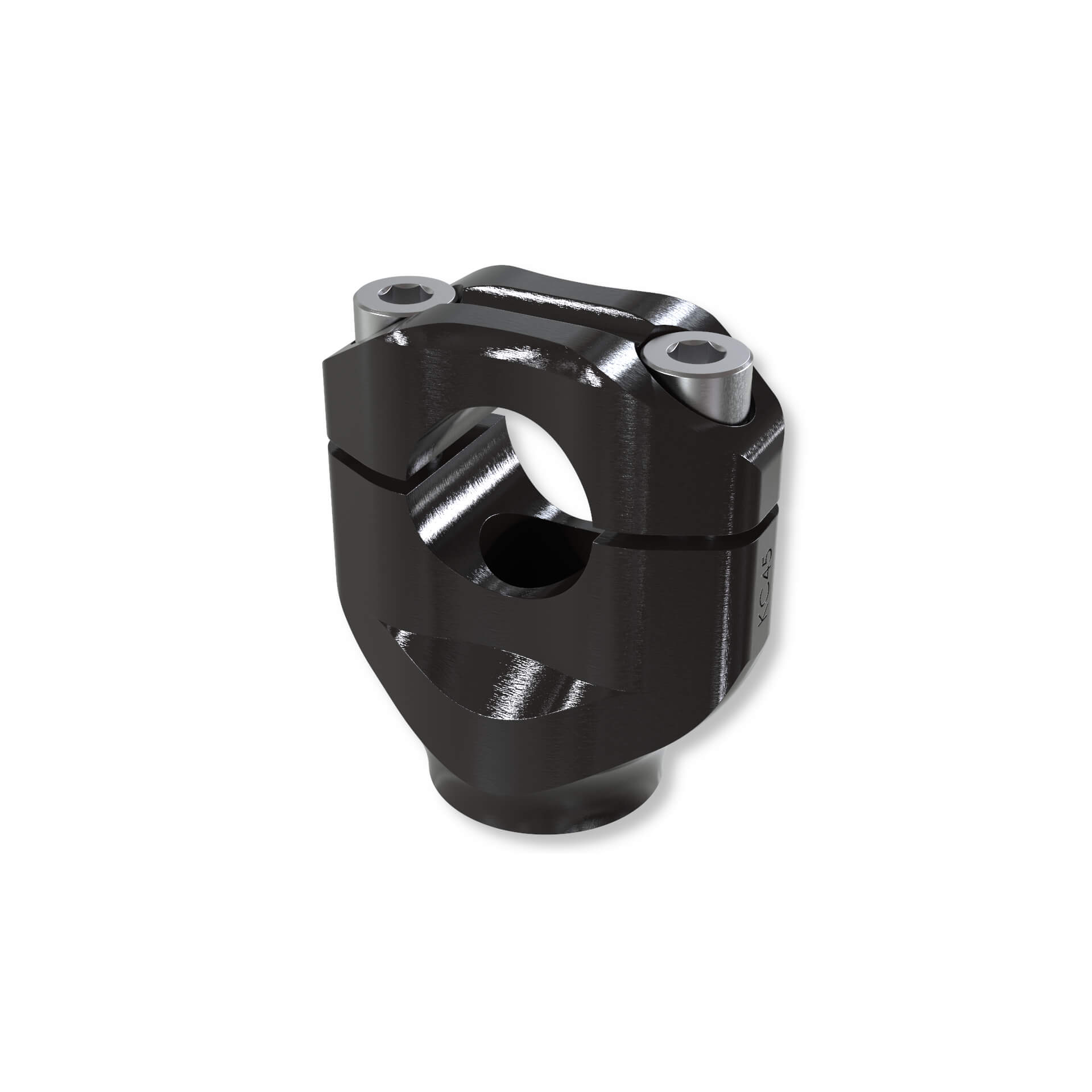

LSL Universal Handlebar Clamp Kit for 1 inch/25.4 mm handlebar, Screw Length 55 mm, Black

Product Details

LSL Universal Handlebar Clamp Kit for 1 inch/25.4 mm handlebar, screw length 55 mm, black

General Description

Universal handlebar clamps handlebar-Ø25.4 mm
For the use of handlebar with a clamping diameter of 25.4 mm, LSL offers the necessary clamps for screwing into the original mounting points of the upper triple clamp. The clamps are CNC-machined from high-quality solid aluminium. They replace the standard clamps to achieve a different height and a better aesthetic. They can be mounted in the original mounting points with centrally located M10 x 1.25 mm screws. For models with rubber mounting, this is retained.
Note:
Please check if your vehicle is listed in the ABE and determine the required screw length.
Attention:
This item is only registration-free if your motorcycle is assigned to the KC45 clamp in the enclosed ABE and all conditions are observed.
For vehicles not listed in the model list, approval by inspection according to § 19(2) StVZO is possible.
How to determine the screw length:
Measure the length of the original screws that protrude from the original clamps, i.e., the usable screw length L, as shown in the technical drawing.

Select the desired colour and required usable screw length.
Material: Aluminium
Material treatment: CNC-machined, anodised
Mounting: Central screw connection to the standard mounting points M10 x 1.25 mm
Offset: + 45 mm
Dimensions: 1 inch clamping
Scope of delivery:
• Clamps (KC45) 1 pair
• Screws M8x25 4 pieces
• Screws M10x1.25 2 pieces in the selected length
• U-washern M10 2 pieces
• Nuts M10x1.25 (self-locking) 2 pieces
