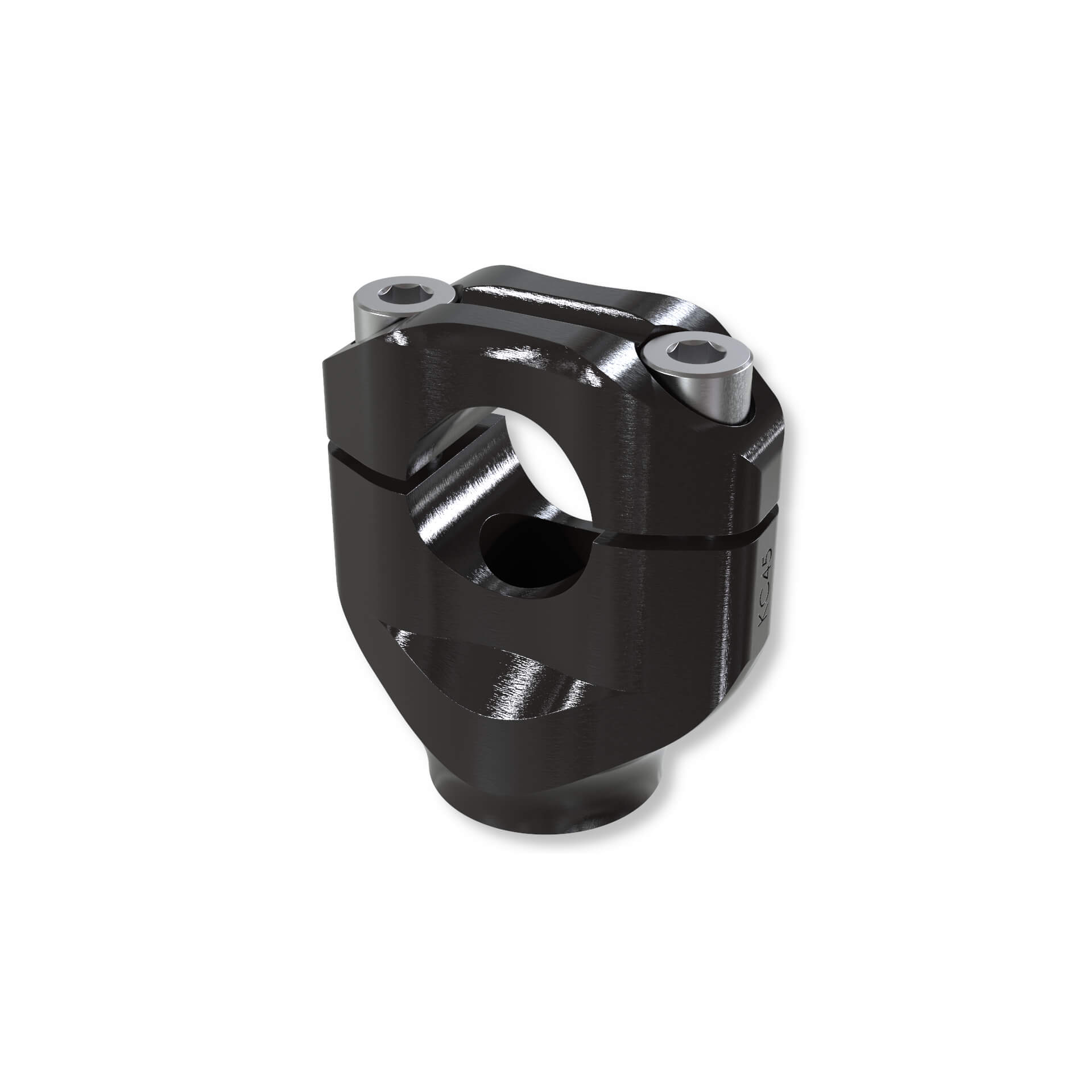

LSL Universal Handlebar Clamp Kit for 1 inch/25.4 mm handlebar, 90 mm Screw Length, Black

Product Details

LSL Universal Handlebar Clamp Kit for 1 inch/25.4 mm handlebar, 90 mm screw length, black

General Description

Universal clamp risers for handlebar-Ø25.4 mm
For using handlebar with a clamp diameter of 25.4 mm, LSL offers the necessary clamp risers for bolting into the original mounting points of the upper triple clamps. The clamp risers are CNC-machined from high-quality solid aluminium. They replace the standard clamp risers to achieve a different height and an improved appearance. They can be mounted in the original mounting points with centrally located M10 x 1.25 mm screws. For models with rubber mounts, these are retained.
Note:
Please check if your vehicle is listed in the ABE and determine the required screw length.
Please note:
This item is only registration-free if your motorcycle is assigned to the KC45 clamp riser in the enclosed ABE and all conditions are observed.
For vehicles not listed in the model list, approval by inspection in accordance with § 19(2) StVZO is possible.
How to determine the screw length:
Measure the length of the original screws that protrude from the original clamp risers. This is the usable screw length L, as shown in the technical diagram.

Choose the desired colour and required usable screw length.
Material: Aluminium
Material treatment: CNC-machined, anodised
Mounting: Central bolting to the standard mounting points M10 x 1.25 mm
Offset: + 45 mm
Dimensions: 1 inch clamping
Scope of delivery:
• Clamp risers (KC45) 1 pair
• Screws M8x25 4 pieces
• Screws M10x1.25 2 pieces in the selected length
• U-washers M10 2 pieces
• Nuts M10x1.25 (self-locking) 2 pieces
