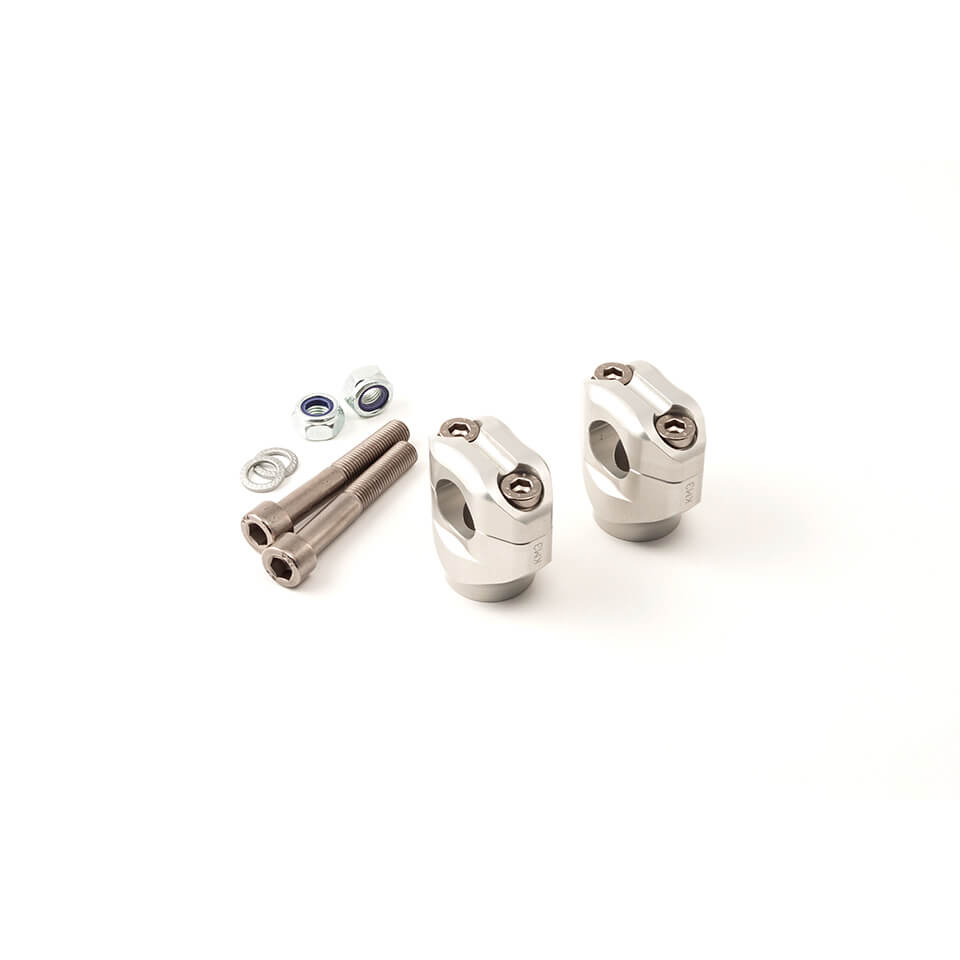

LSL Universal Clamp Riser Kit, 65 mm Screw Length, for 22.2 mm handlebar, Silver

Product Details

LSL Universal Clamp Riser Kit, 65 mm Screw Length, for 22.2 mm handlebar, Silver

General Description

Universal clamp risers for handlebar-Ø22.2 mm
For the use of handlebar with a clamping diameter of 22.2 mm, LSL offers clamp risers for bolting into the original mounting points of upper triple clamp.
The clamp risers are CNC-milled from high-quality solid aluminium. They replace the standard clamp risers to achieve a better aesthetic. They can be mounted in the original mounting points with centrally positioned M10 x 1.25 mm screws. For models with rubber mounts, these are retained.
Note:
Please check whether your vehicle is listed in the ABE and determine the required screw length.
Attention:
This item is only registration-free if your motorcycle is assigned to clamp riser KM3 in the enclosed ABE and all conditions are observed.
For vehicles not listed in the model list, approval by inspection according to § 19(2) StVZO is possible.
How to determine the screw length:
Measure the length of the original screws that protrude from the original clamp risers. This is the usable screw length L, as shown in the technical diagram.

Select the desired colour and required screw length.
Material: Aluminium
Material treatment: CNC-milled, anodised
Mounting: Central screw fitting at the standard mounting points M10 x 1.25 mm
Clamp riser KM3: 35 mm high
Dimensions: 7/8 inch clamping, for Ø 22.2 mm handlebar
Scope of delivery:
• Clamp risers (KM3) 1 pair
• Screws M8x25 4 pieces
• Screws M10x1.25 2 pieces in the selected length
• U-washer M10 2 pieces
• Nuts M10x1.25 (self-locking) 2 pieces
